Our engineered optoelectronic transceivers are optimized for minimal latency, high-density port diagnostic testing, and long-range high-bandwidth telecommunication systems.
In hyper-scale datacenter deployments, telecommunication hubs, and AI computing clusters, network uptime and port reliability are paramount. An Ethernet loopback connector represents a foundational diagnostic instrument, providing system engineers with the capability to perform non-disruptive port-level self-tests, physical link checks, and network interface card (NIC) diagnostics.
By routing transmitted signal pathways (TX) directly back to receiving pathways (RX), these precision-engineered passive plugs enable localized hardware verification without requiring a remote system peer. Lumopt Opto Technology Co., Ltd. delivers global OEM/ODM solutions, manufacturing loopback components configured for various pinouts, custom attenuation, and harsh industrial environments.
Explore the rigorous assembly and verification steps utilized in our advanced dust-free facility. We implement strict quality control from raw materials to final packaging.
Ensures precision phase-matching of differential signal pairs, minimizing internal crosstalk.
Applies precision tin layers to structural PCBs to secure reliable, corrosion-resistant solder joints.
High-reliability welding prevents resistance degradation across critical high-speed data pathways.
Trims diagnostic indicator pins to ensure safe integration inside standard RJ45 shells.
Verifies circuit board integrity before mechanical encapsulation into plastic housings.
Secures the diagnostic internal PCBs inside dustproof, impact-resistant external shells.
Subjecting connectors to high voltage tests to confirm dielectric isolation parameters.
Tests hardware configuration compatibility, dynamic load testing, and operational validation.
Visual check of mating interfaces and physical connector structures to guarantee seamless port fits.
Secured in anti-static ESD shielding bags to ensure preservation during transcontinental freight.
Our laboratories are equipped with specialized testing hardware to verify physical properties, electrical continuity, and optic limits.
Checks multiple parameter lines, validating signal loopback integrity across complex systems.
Tests luminance and forward current consistency of indicators on integrated ports.
Applies high-voltage sweeps to ensure complete isolation and zero localized leakage current.
Executes precise joint connections with micron-level tolerances for robust assembly.
Engraves serialization code numbers and specifications clearly on connector structures.
Verifies magnetic turns ratio, inductance parameters, and cross-talk suppression.
Streamlines automation packaging systems for secure handling prior to shipment.
Tests electrical pathways, mating forces, and led indicators across high-volume batches.
Lumopt Opto Technology Co., Ltd. (registered as Luguang Communication Technology Co., Ltd. in China) stands as a prominent designer, manufacturer, and supplier of advanced telecommunications hardware and high-performance transceivers.
We focus on the R&D, production, and custom assembly of multi-rate optical modules covering 10G, 25G, 100G, 400G, 800G, and next-generation 1.6T platforms. Our products support applications in hyper-scale datacenters, high-frequency industrial environments, cloud environments, AI processing frameworks, and long-haul telecommunications systems.
Utilizing state-of-the-art cleanroom environments, precision robotic assembly lines, and high-frequency automated inspection, we guarantee consistent quality controls throughout the manufacturing lifespan. All products comply with RoHS, CE, and FCC requirements, and support specific OEM & ODM needs for clients worldwide.
Rigorous physical and electrical compliance testing before shipment.
Customizable pin configurations, loop attenuation levels, and custom outer housings.
A comprehensive analysis of diagnostic hardware configurations, signal isolation parameters, and next-generation connectivity standards.
Standard passive loopback plugs route TX lines (transmit) directly back to RX lines (receive). Our RJ45 loopback adapters bridge Pin 1 to Pin 3 and Pin 2 to Pin 6 for 10/100Base-T configurations, while utilizing internal passive terminators for Gigabit and 10GbE copper architectures to match loop impedance.
When utilizing optical transceiver loopback modules (LC, MPO, SC), raw transmitter output can saturate and damage sensitive receiver photodetectors. Our custom optical loopback adapters integrate precise attenuation (ranging from 1dB to 15dB) to simulate real-world transmission distances and protect optical elements.
As datacenter fabrics migrate from 400G to 800G and 1.6T, physical interface checking demands robust loopback hardware capable of handling PAM4 signal configurations. Our development roadmap introduces SFP-DD, QSFP-DD, and OSFP passive testing loopbacks engineered for low insertion loss.
We collaborate with enterprise engineering teams to design custom diagnostic components tailored to complex testing parameters.
Diagnostic loopback connectors are essential throughout modern communication industries, providing quick verification of network port health and physical layers.
Automated loop testing verifies ports prior to optical patchcord routing.
Ensures continuous, low-latency performance of outdoor base stations.
Enables quick port validation for switches, routers, and server motherboards.
Rugged diagnostic tools designed for vehicle control and avionics systems.
Our facility in China operates under strict international standards to deliver high quality products to global markets.
Technical answers to common questions about Ethernet loopback adapters and diagnostic testing hardware.

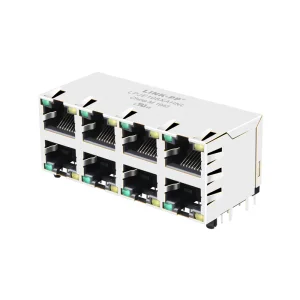

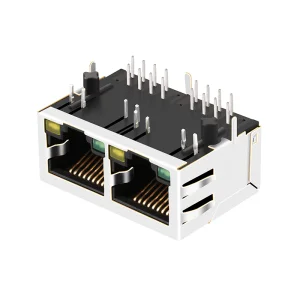

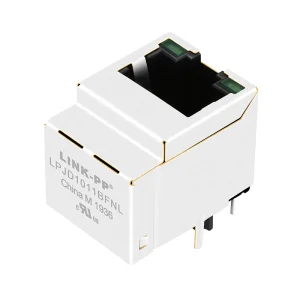

Explore our selection of shielded RJ45 sockets, high-speed transformers, and custom board-level connectivity solutions.
