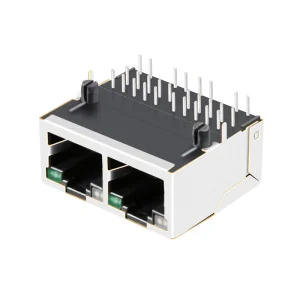

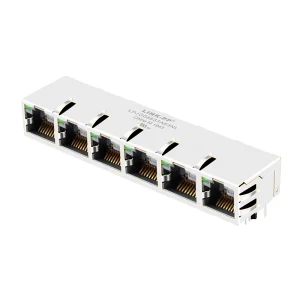

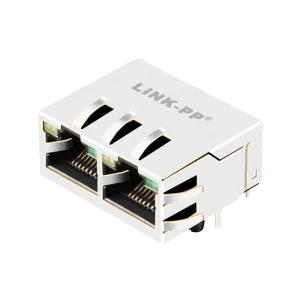

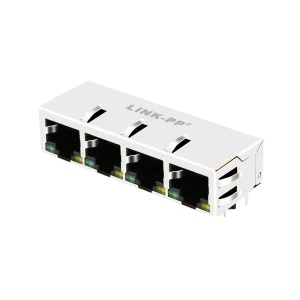

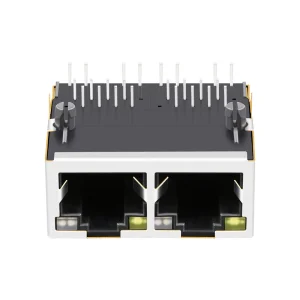

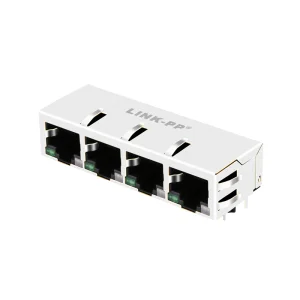

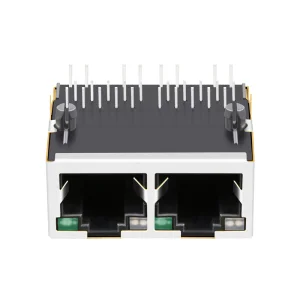

Explore our high-performance female modular jacks integrated with advanced filtering magnetics, custom shielding designs, and options for built-in LEDs.
Analyzing industry requirements, electromagnetic compatibility, and the critical role of female modular jacks in advanced networking systems.

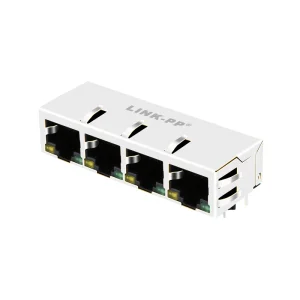

Modern telecommunication networks and enterprise servers require highly compact PCB layouts. Multi-port RJ45 connectors (ranging from 1x2, 1x4, and 1x8 to stacked 2x4 configurations) reduce board footprint while guaranteeing robust signal fidelity at speeds up to 10G Base-T.
Transitioning from single-port to multi-port architectures exponentially increases electromagnetic interference (EMI) risks and port-to-port crosstalk. Integrating magnetic suppression elements (MagJack technology) inside the shield housing isolates critical differential signals.
Compliance with universal specifications (such as IEEE 802.3 Ethernet standards, RoHS, and FCC Part 68) guarantees that multi-port connectors seamlessly integrate with physical layer transceiver (PHY) chips manufactured worldwide.
In the landscape of modern digital telecommunications and high-speed data transmission, the hardware interface acts as both a gatekeeper and a critical pathway. As networks evolve from Gigabit Ethernet (1000 Base-T) towards multi-gigabit speeds (2.5G, 5G, and 10G Base-T), physical layer limitations become more acute. The Multi-Port RJ45 Connector, specifically configured as an Integrated Connector Module (ICM), combines the interface jack with internal filter components. This structural alignment eliminates the necessity of laying out discrete magnetics on the motherboard, reducing EMI noise and routing complexity.
Without high-quality internal coupling transformers and common-mode chokes, copper Ethernet cables act as antennae, transmitting and receiving unwanted high-frequency electromagnetic noise. For industrial networks operating in close proximity to high-voltage equipment, variable frequency drives, or automated robotics, this isolation is paramount to prevent packet loss, CRC errors, and connection drops.
"For system architects, saving board space while securing robust signal-to-noise ratios is not a design preference—it is a mandatory operational threshold. Integrated multi-port solutions provide the physical separation and electrical filtering required to protect PHY transceivers from transients."
Lumopt Opto Technology Co., Ltd. (registered in China as Luguang Communication Technology Co., Ltd.) is a manufacturer and exporter of optical transceivers and advanced electrical network interfaces. Our product portfolio encompasses transceivers covering 10G, 25G, 100G, 400G, 800G, and 1.6T, alongside our comprehensive line of multi-port, shielded, and filtered RJ45 female connector jacks.
Our manufacturing infrastructure includes cleanrooms, high-precision winding equipment, and automated optical inspection systems. By controlling both optical and high-speed copper interconnect manufacturing lines, we deliver performance consistency that meets the standards of system integrators, telecom operators, and enterprise hardware builders.
Our facility implements strict quality control throughout the production cycle. From automatic winding and soldering to comprehensive high-potential (Hi-pot) testing, every component undergoes performance validation. This guarantees minimum return loss, high insertion loss performance, and reliable electrical isolation of at least 1500V AC, matching safety requirements worldwide.
A sequential look inside our factory showing the standard manufacturing and quality verification steps for our RJ45 Connectors.
Electrical parameter validation is essential to prevent latency in network switches and edge interfaces.
Multi-port RJ45 connectors are utilized in various industrial deployment profiles. In high-density server racking, modular jacks provide physical copper terminations for out-of-band management switches. In these situations, the spatial volume occupied by standard connectors would restrict exhaust airflow. Implementing low-profile, multi-port, stacked connectors enables efficient airflow patterns.

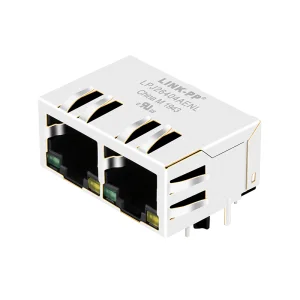

In manufacturing environments, industrial ethernet interfaces drive PLC systems and real-time sensor loops utilizing protocols such as EtherCAT, EtherNet/IP, and PROFINET. These systems operate amid electrical noise generated by high-power induction motors and switching power supplies. The mechanical integrity of the metal shielding tabs on the RJ45 housing provides a continuous ground pathway, suppressing electrostatic discharges.
The growth of smart building automation and enterprise surveillance networks has increased demand for Power over Ethernet (PoE, PoE+, and PoE++ / IEEE 802.3bt). Providing up to 90W of direct current simultaneously with multi-gigabit data streams places significant thermal stress on connector contacts.
Without high-purity phosphor bronze pins plated with gold, contact resistance increases over time. This leads to heat dissipation issues that degrade physical cables. Our multi-port RJ45 female connector series is engineered with optimized pin alloys, ensuring stable electrical contact and thermal resilience in enterprise PoE applications.
When procuring multi-port network components, hardware engineers and purchasing divisions must evaluate specific structural parameters. Choosing between cross-brand replacements (e.g., matching Pulse Electronics, Halo, or Bel Fuse footprints) requires checking pin layout, tab direction (Tab-up vs. Tab-down), and LED circuit matching.
The table below highlights critical parameters that should be cross-referenced prior to manufacturing scheduling:
| Parameter | Standard Spec Range | Critical Engineering Note |
|---|---|---|
| Gold Plating Thickness | Flash, 3μ", 6μ", 15μ", 30μ", 50μ" | 50 micro-inches is recommended for telecom and high-vibration applications to prevent mating wear. |
| LED Configurations | Green, Yellow, Bi-Color, or Without LED | Check internal resistors and drive voltage compatibility with control circuits. |

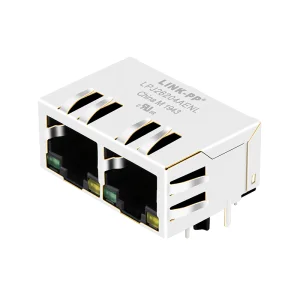

| Tab Alignment | Tab-Up or Tab-Down | Ensures mechanical compatibility with shell cutouts and ease of RJ45 cable release. |
| Shielding Ground Tabs | Top/Side Tabs, No Tabs | Directly establishes grounding with the enclosure panel to minimize EMI ingress and radiation. |
Addressing engineering questions regarding multi-port RJ45 connectors, integrated magnetics, and electrical characteristics.
Explore our single-port, dual-port, stacked, and specialized RJ45 configurations for high-speed network routing.
