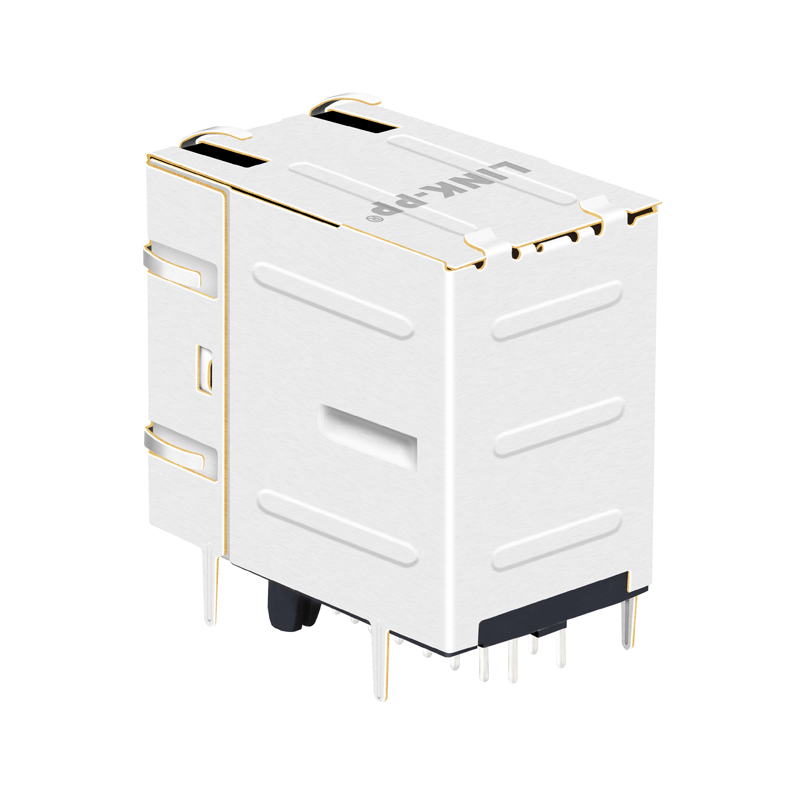

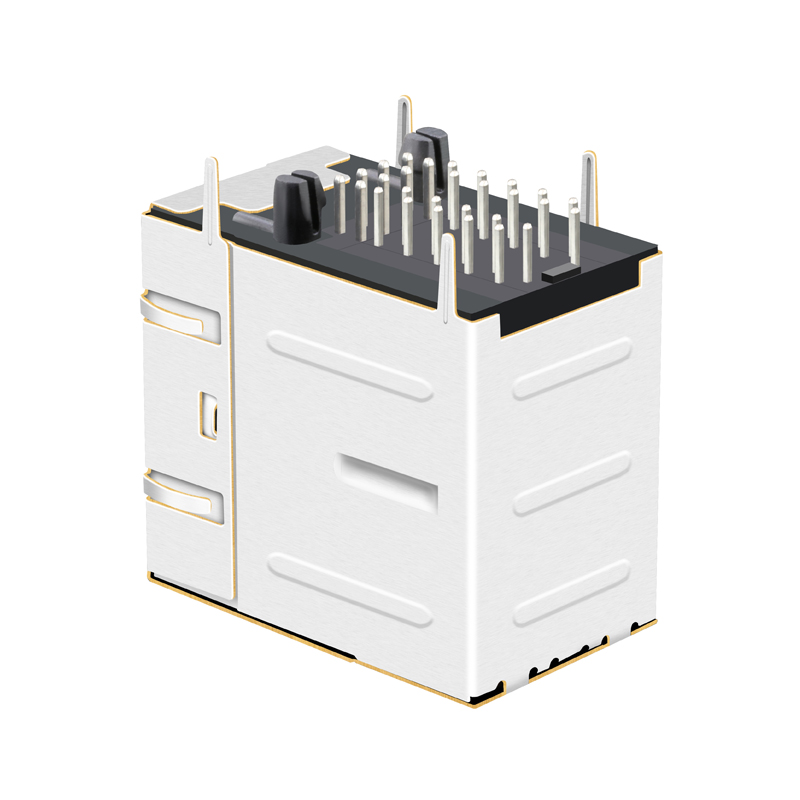

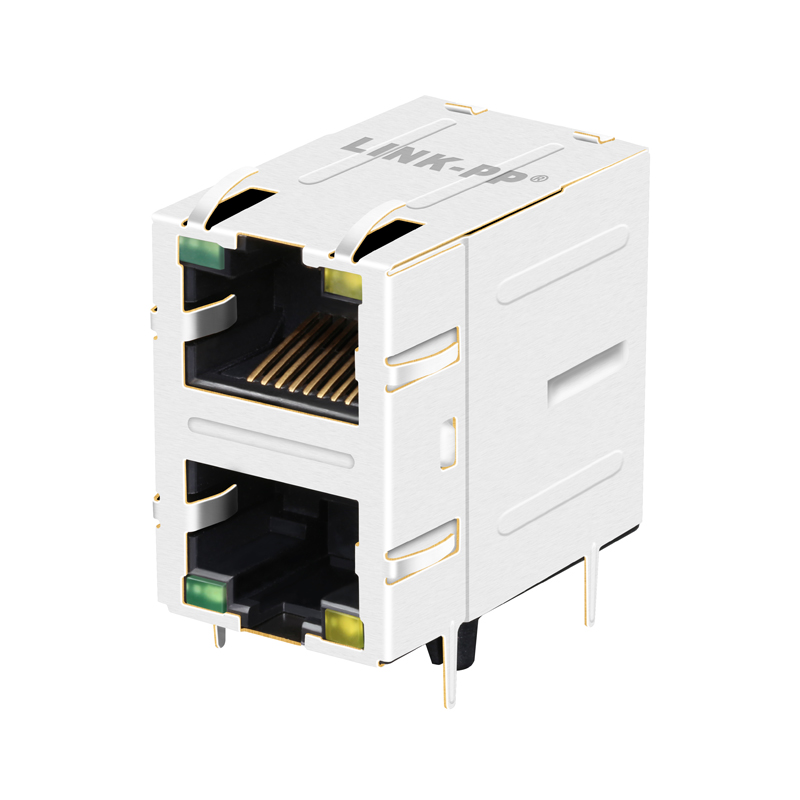

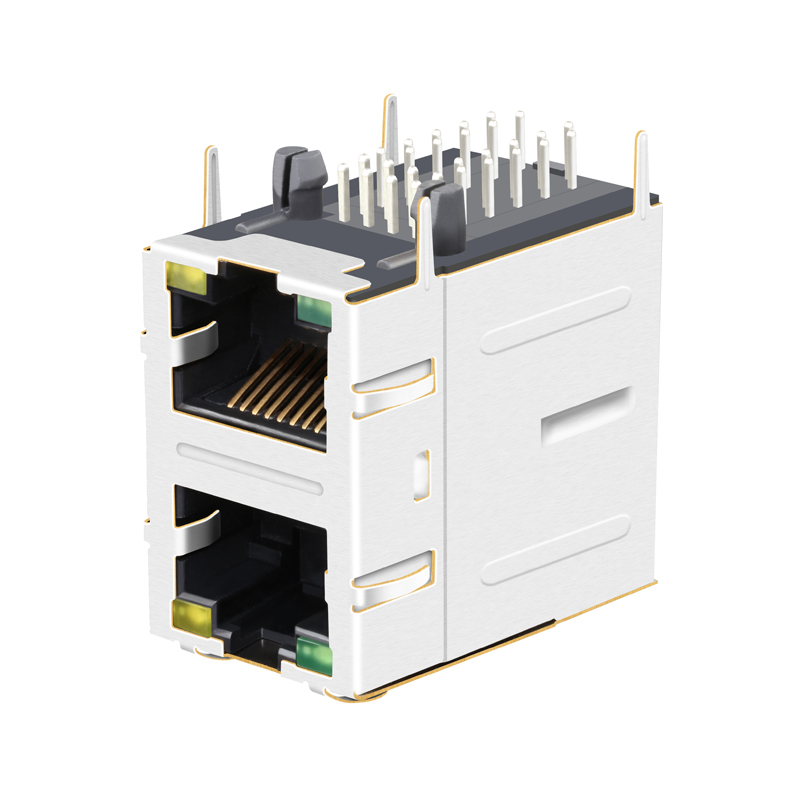

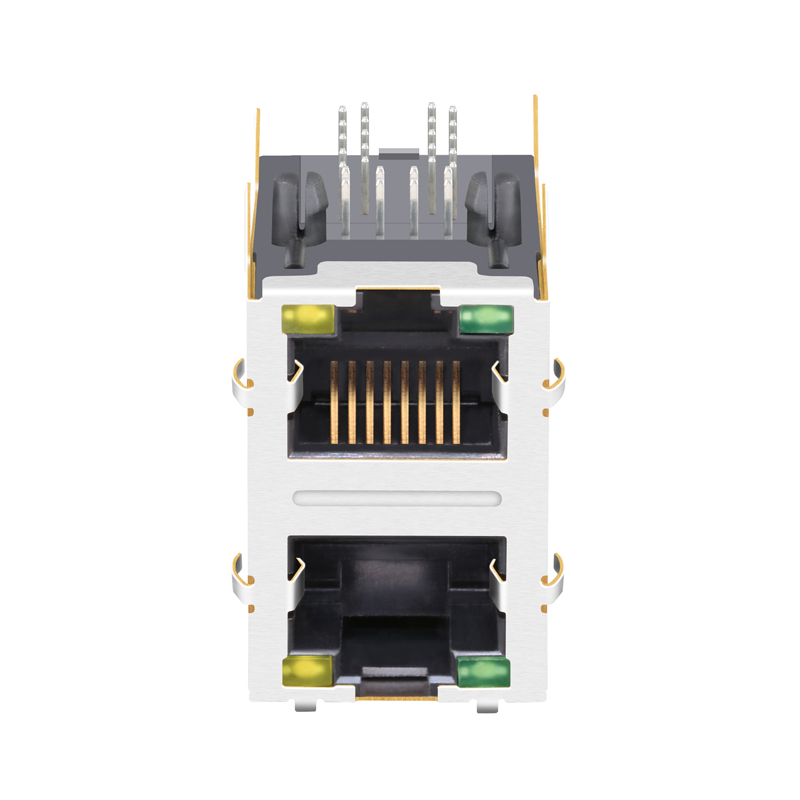

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector

Product Description

RM3-138A9V1F / RM3-138A9V1Q 1000 Base-T 2X1 Port Ethernet RJ-45 Connector
Ethernet RJ-45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJG17512A8NL
Compatible With RM3-138A9V1F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specifications
Product Grid Navigation
Product Detail View 1
Product Detail View 2
Product Detail View 3
Product Detail View 4
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Production Process 5
Production Process 6
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fee.
What is your delivery time?
Items in stock are ready to ship. For mass production, the typical delivery timeline is 15-30 days.
What after-service can you offer?
We offer a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry directly to us so that we can proceed with a detailed discussion.
What is your advantage?
We possess 19 years of professional production experience and have partnered with major global companies for many years.
