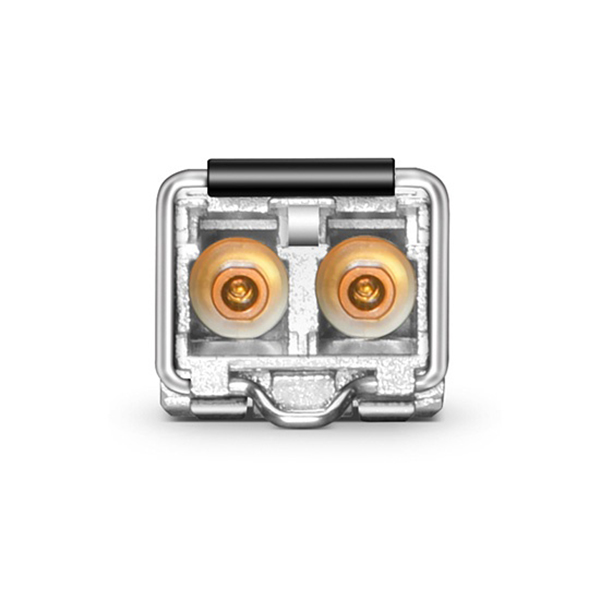

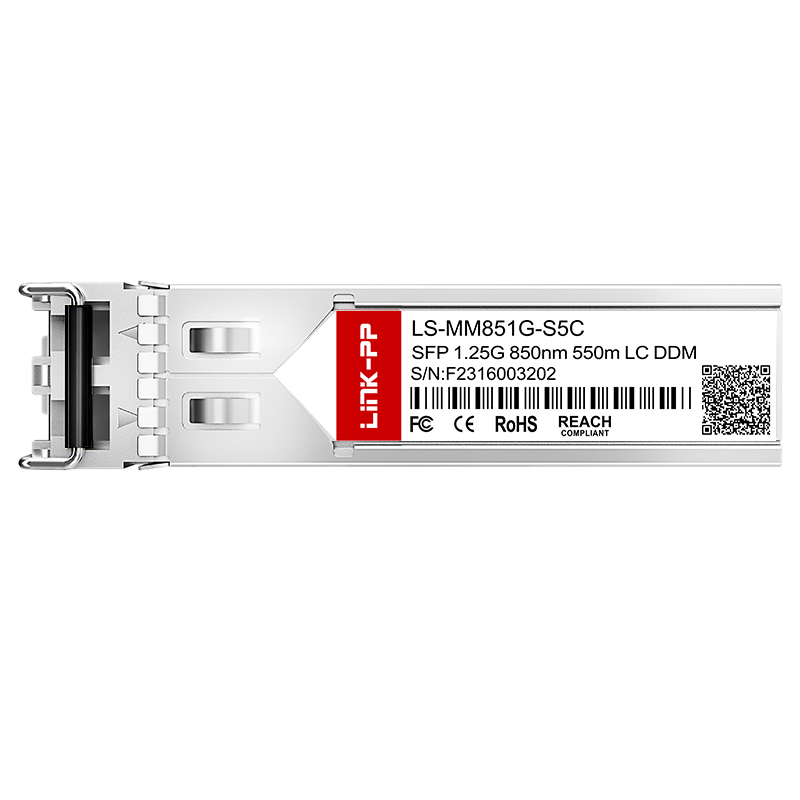

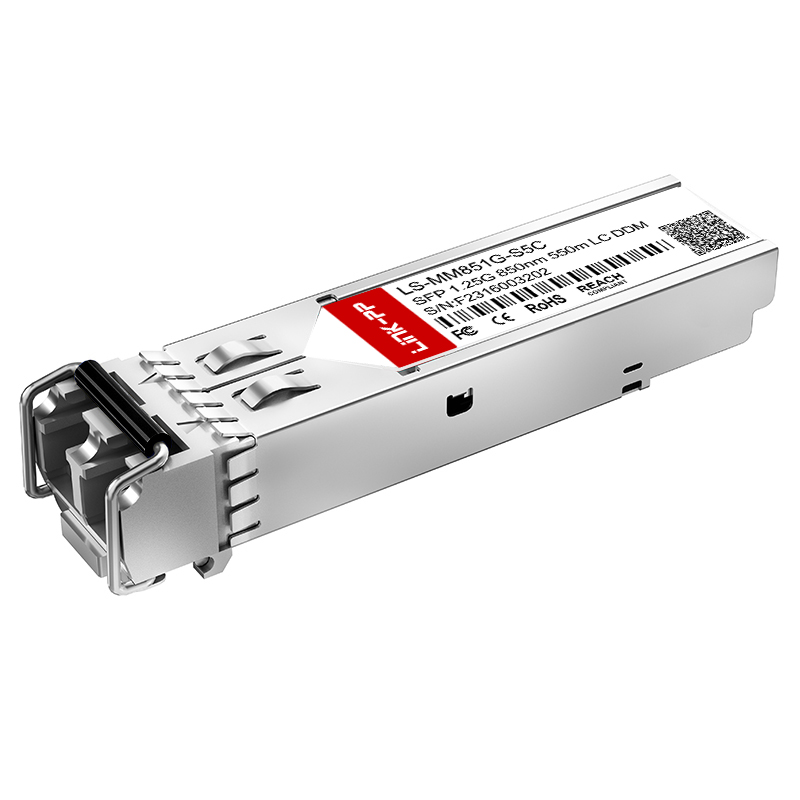

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1 / 5
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module

Send Inquiry

Product Description

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
Products Description
Item SFP Module
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 850nm
Max Cable Distance 550m
Connector Duplex LC
Media Multimode (MMF)
Optical Component VCSEL/PIN
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power -9.5 ~ - 3dBm
Receiver Sensitivity < -17dBm
Typical Power Consumption ≤0.8w
Receiver Overload -3dBm
Bit Error Ratio (BER) 1E-12
Extinction Ratio >9dB
EMC (Electro Magnetic Compatibility) Supported
MTBF (SX) 2,457,002 Hours
Protocols IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
