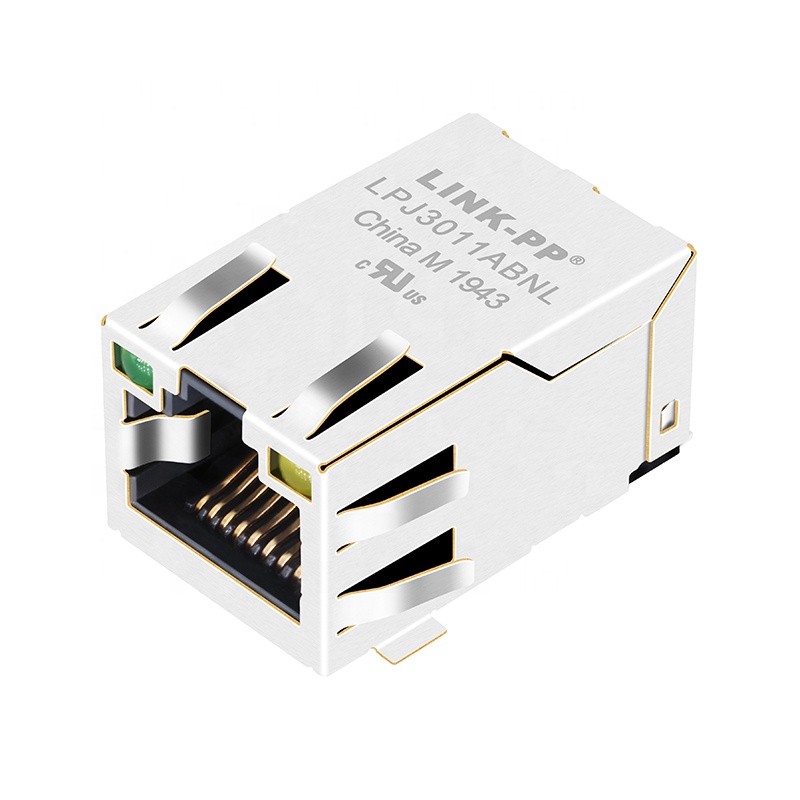

| Item | RJ45 Female Connector |
| Part Number | LPJ3011ABNL |
| Cross Part Number | 7498010210A |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, the manufacturer is a professional designer and manufacturer of magnetic telecom and networking components. We provide an extensive line of state-of-the-art catalog products along with robust custom-design capabilities.
As a global supplier of magnetic telecom and networking components, we serve OEMs, contract manufacturers, and CEMs across more than 200 countries. With multi-warehouse systems situated in key geographic areas and a commitment to continuously updating our inventory, we work to remain a leading resource for Ethernet RJ45 connectors and LAN transformer technologies.
