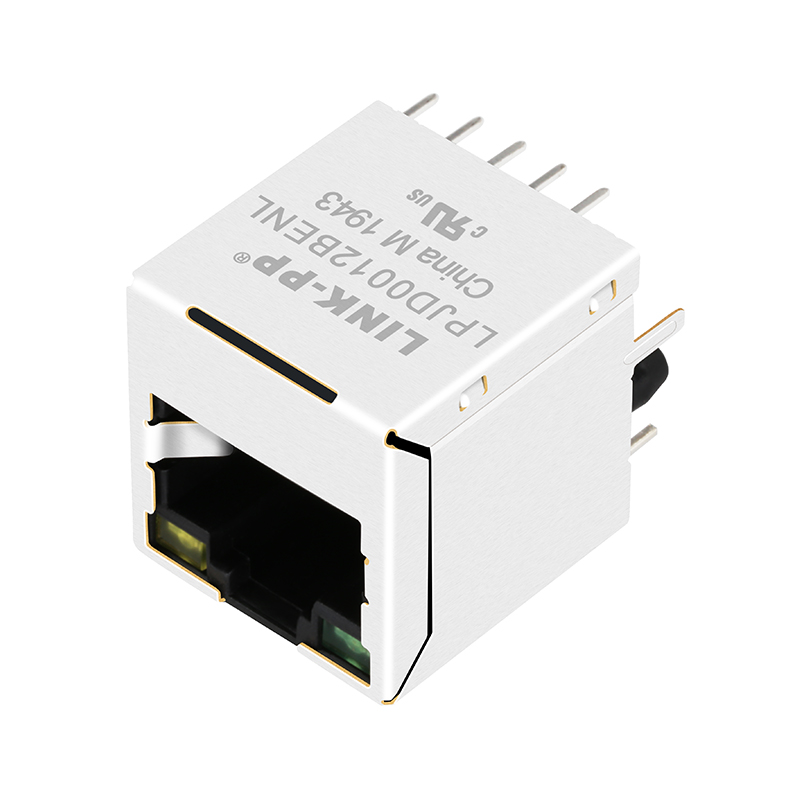

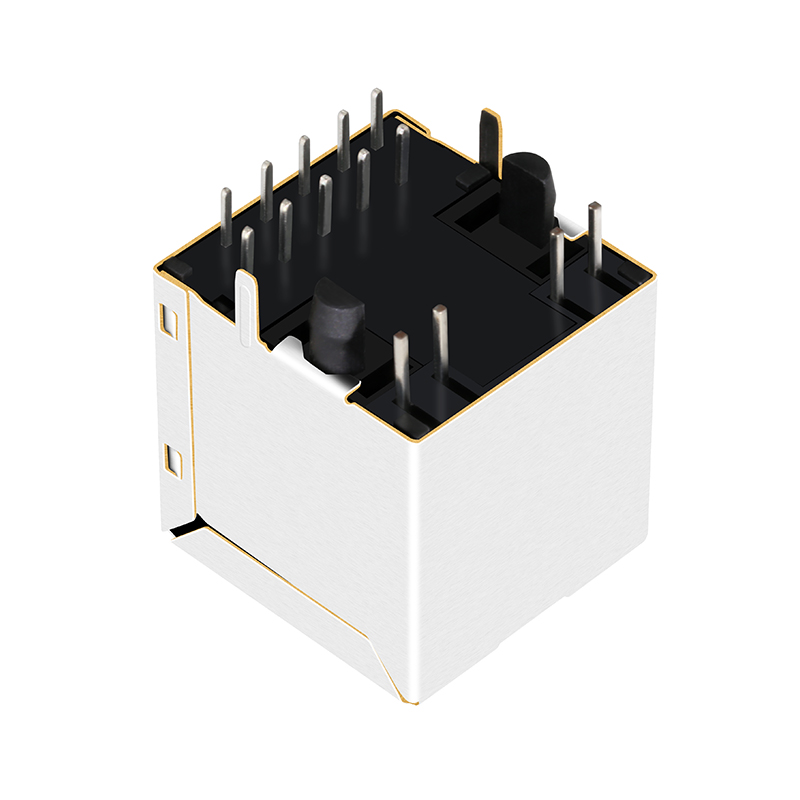

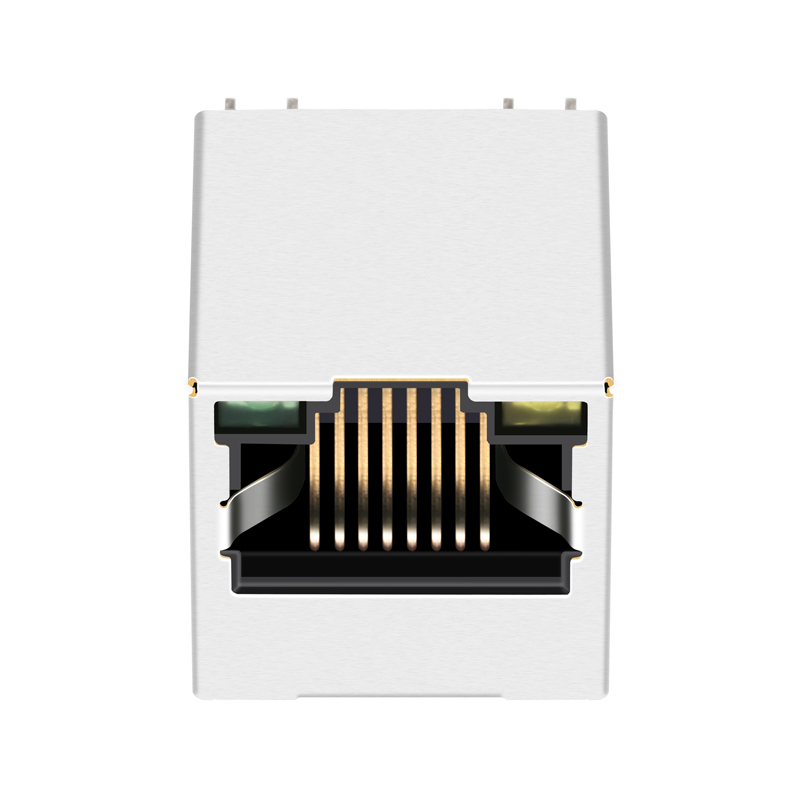

SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

Product Description

RJ45 Connector Products
SI-46001-F 10 / 100Base-T 8P8C Vertical RJ45 Connector
Product Description
Item RJ45 Female Connector
Part Number SI-46001-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

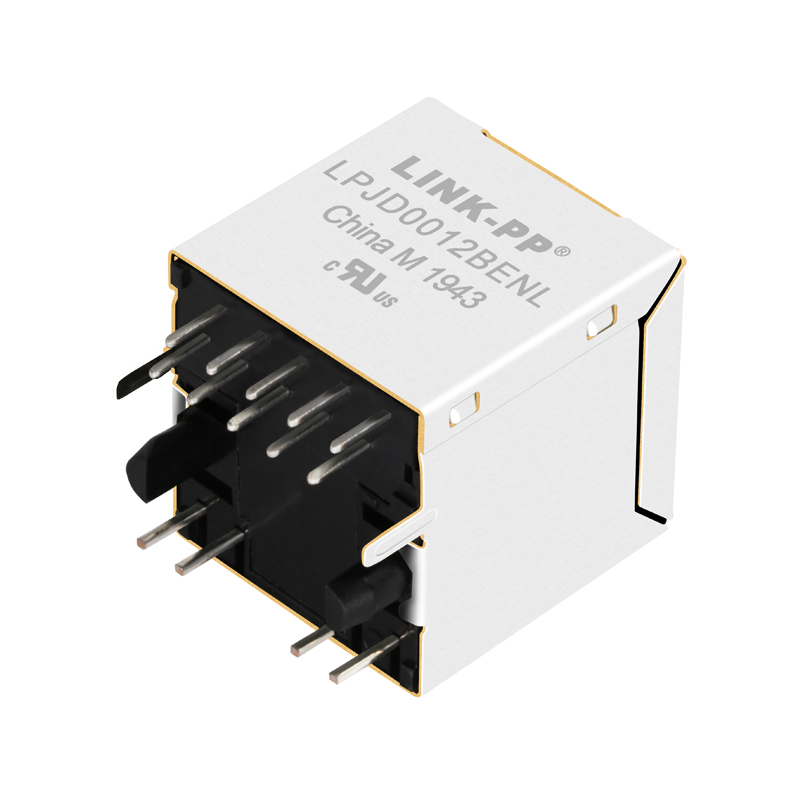

RJ45 Connector Side View

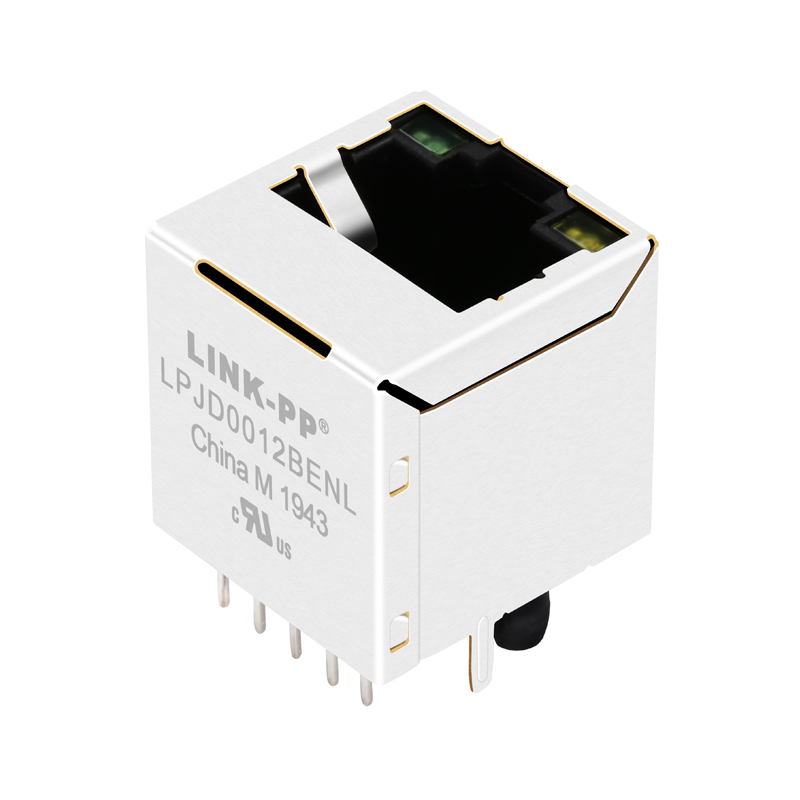

RJ45 Connector Bottom View
Interface Dimension Detail 1
Interface Dimension Detail 2
Interface Dimension Detail 3
Interface Dimension Detail 4
