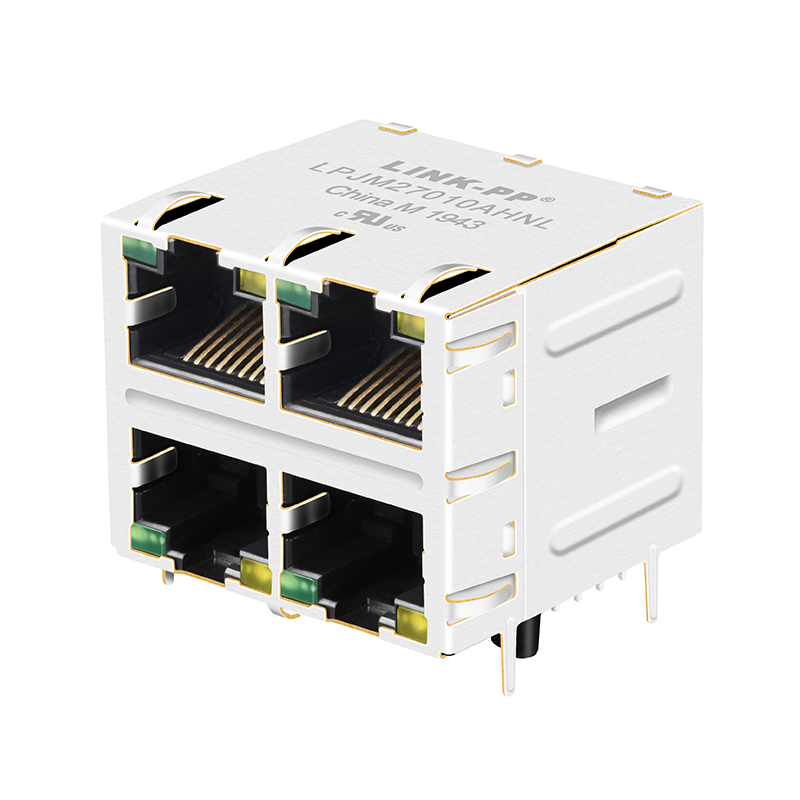

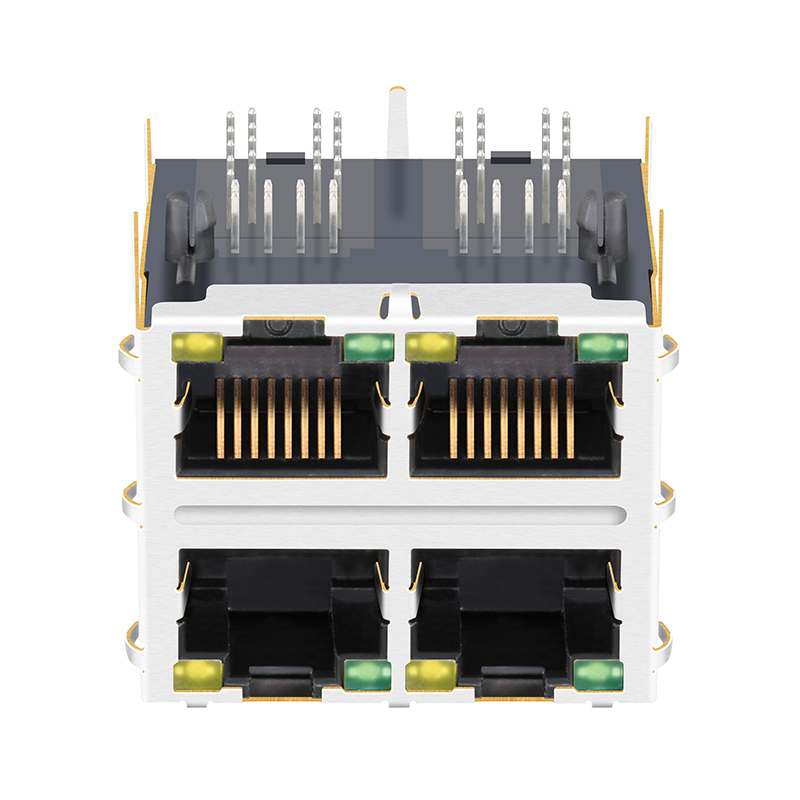

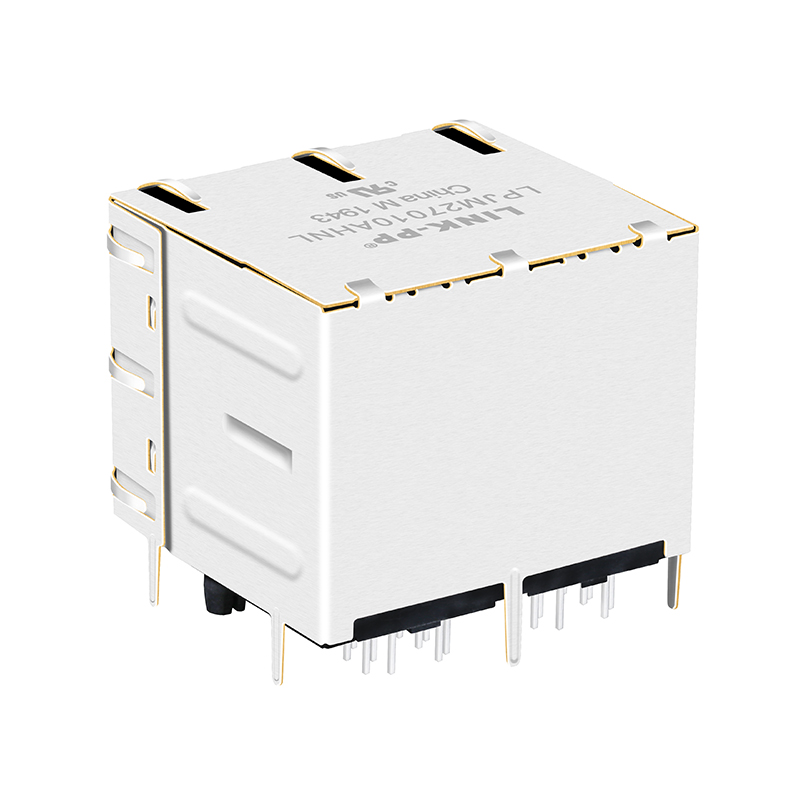

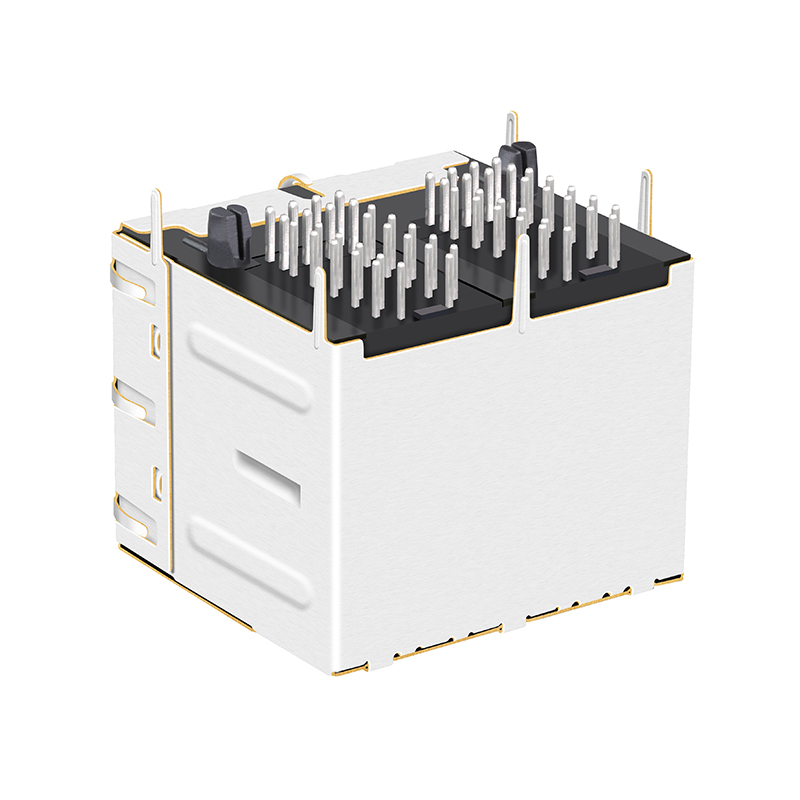

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
1 / 5
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led

Send Inquiry

Product Description

Shield 2x2 Ports Ethernet 2.5G Base-t Female RJ45 Magnetic Jack With Led
Ethernet RJ45 Connector Overview
Products Description
Item RJ45 Female Connector
Part Number LPJM27010AHNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x2 Port
Speed 2.5G Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

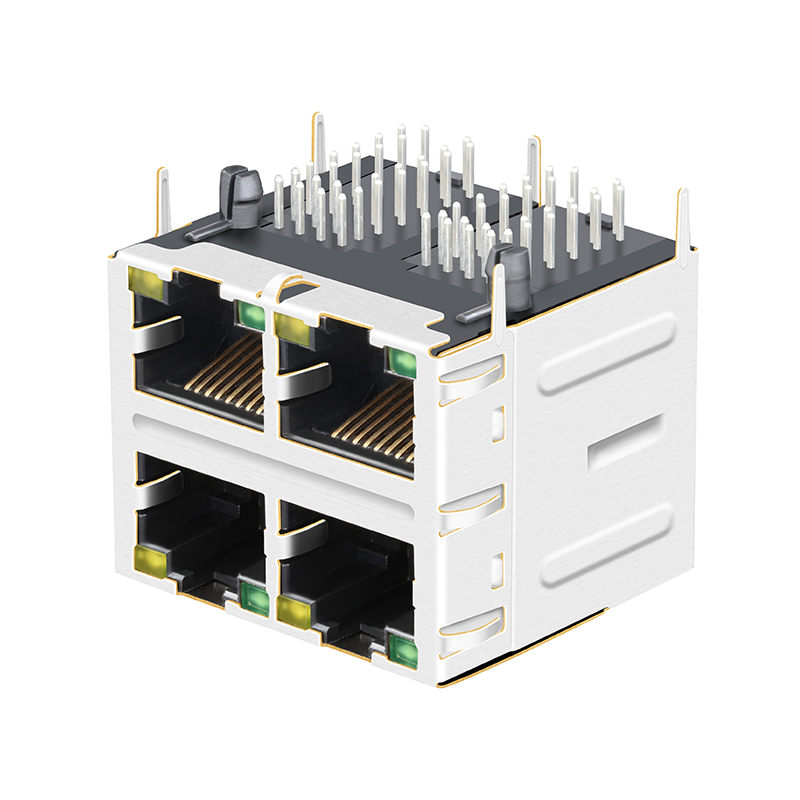

Product Detail View 1
Product Detail View 2
Product Technical Dimensions
Product Category Matrix
Specifications Diagram
Technical Specifications Sheet
Testing Parameters
Measurement Chart
Certification Standard
Quality Inspection Control
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Center
Production Workshop
Warehouse Facilities
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping fees are to be covered by the customer.
3. What is your delivery time?
Items currently in stock are ready to ship immediately. The lead time for mass production is typically 15-30 days.
4. What after-sales service do you offer?
We offer a one-year warranty period and 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please send your inquiries to us so that we can have a detailed discussion.
6. What is your competitive advantage?
We have 19 years of professional production experience and have partnered with major global technology leaders for many years.
