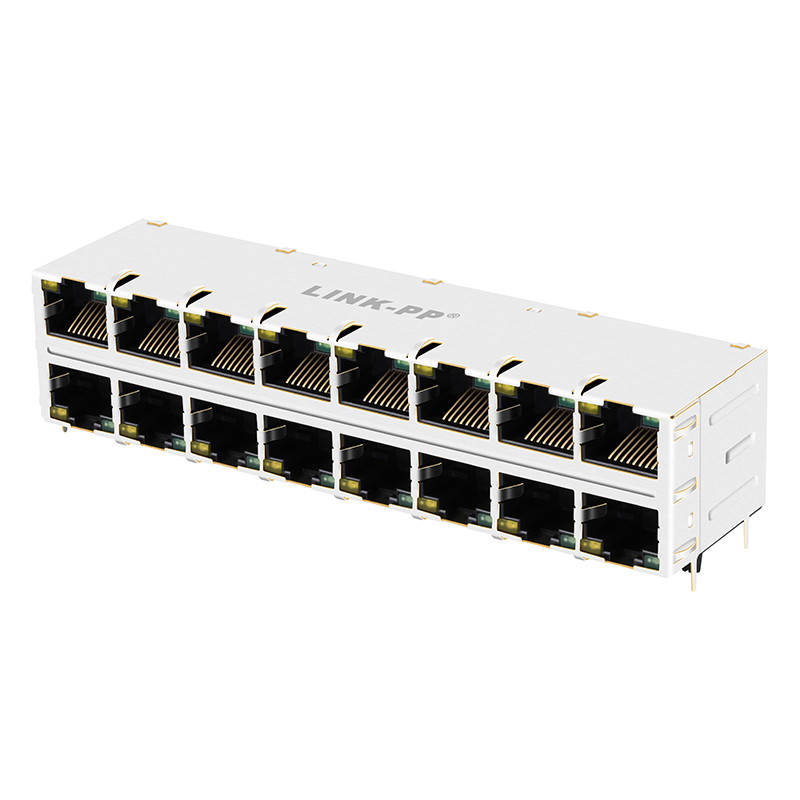

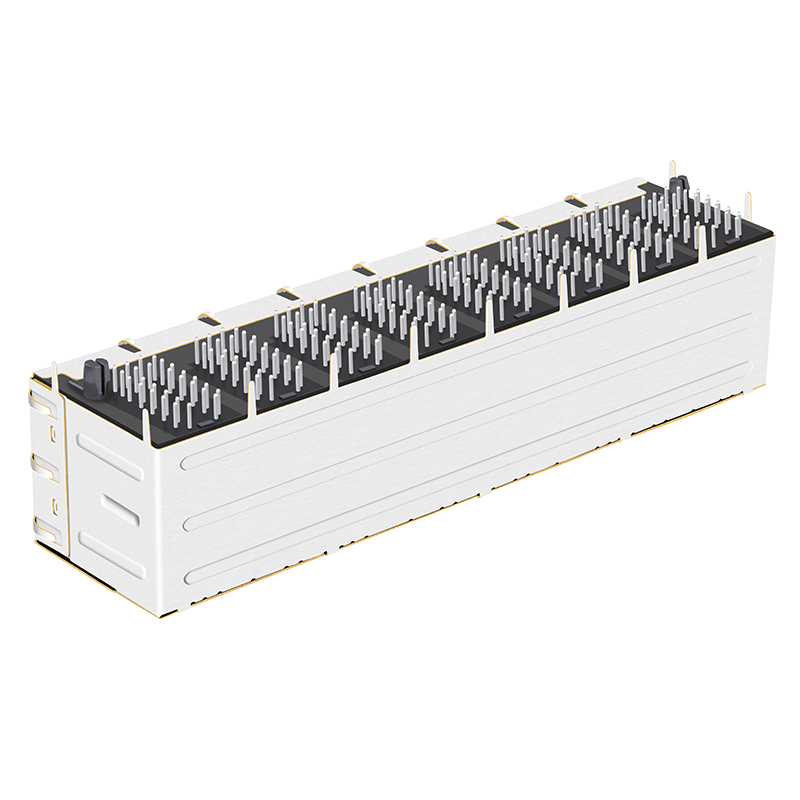

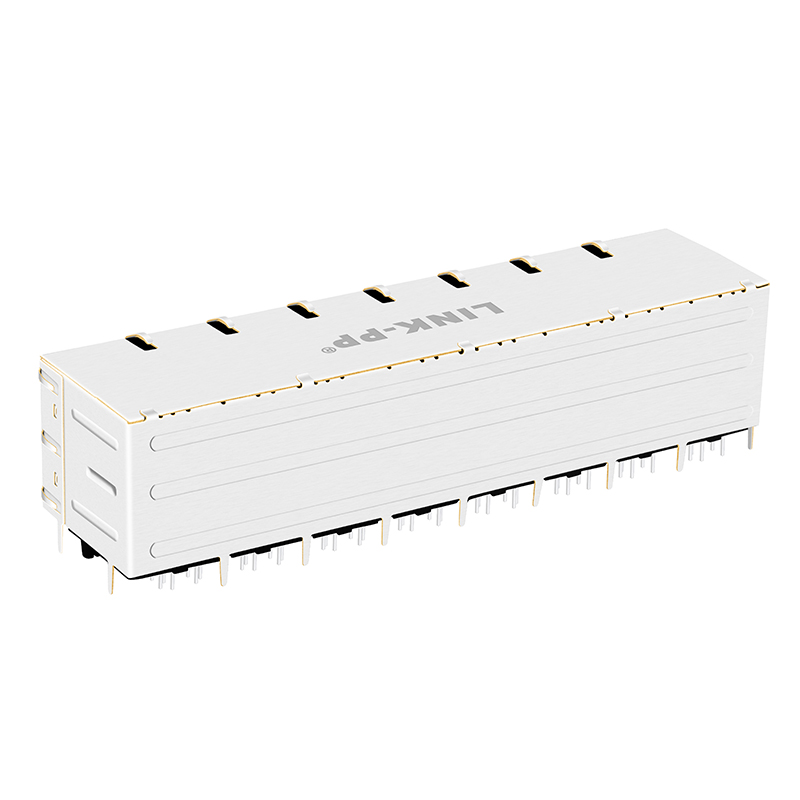

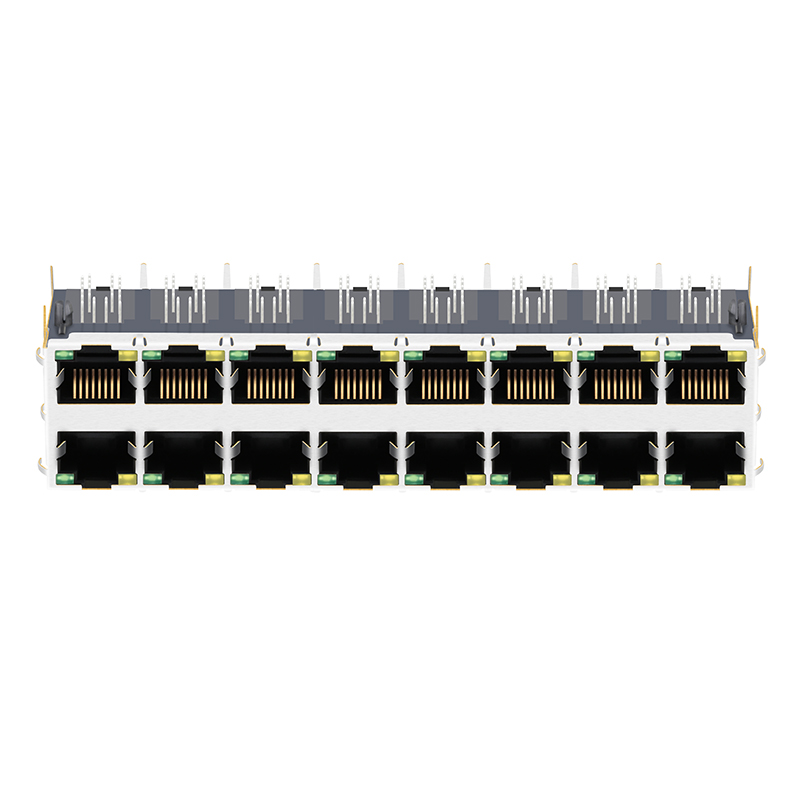

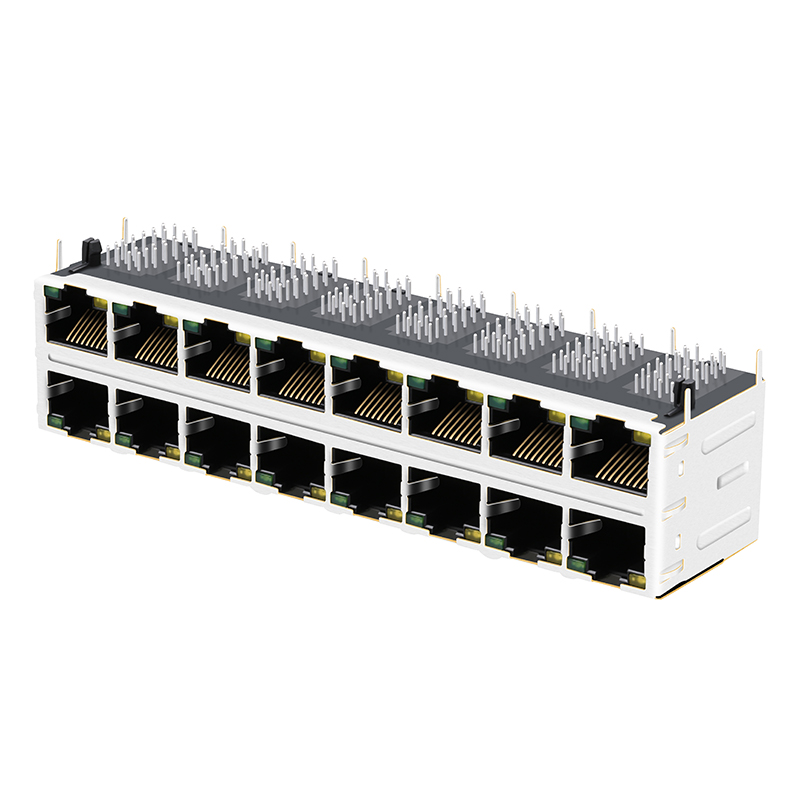

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
| Part Number |
RJ45 connector |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
8 |
| Diodes |
NO DIODES |
| LED Option |
WITH LEDS |
| Latch |
Up/Down |
| Number of Ports |
2x8 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
Shield, EMI Finger |
| Speed |
10/100/1000 Base-T |
| Temperature |
-40°C ~ 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price & Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
Q: What is the main application for this 2x8 port RJ45 jack?
A: This shielded 16-port RJ45 connector is designed for ETHERNET (NON-PoE) LAN applications, including routers, network switches, and hubs.
Q: What is the operating temperature range for this connector?
A: It can operate reliably in temperatures ranging from -40°C to 85°C, making it suitable for industrial environments.
Q: What transmission speed rates does this connector support?
A: It supports speeds of 10/100/1000 Base-T, enabling high-performance Gigabit Ethernet connectivity.
Q: Does this 16-port RJ45 connector come with built-in LEDs?
A: Yes, it features integrated LEDs to indicate network status and connection activity.
Q: What is the PCB mounting style and angle?
A: It is a side-entry PCB mount type featuring Through-Hole Technology (THT) solder pins and T-post retaining posts for secure board attachment.
Q: Is the product RoHS compliant?
A: Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption), ensuring compliance with international environmental standards.
