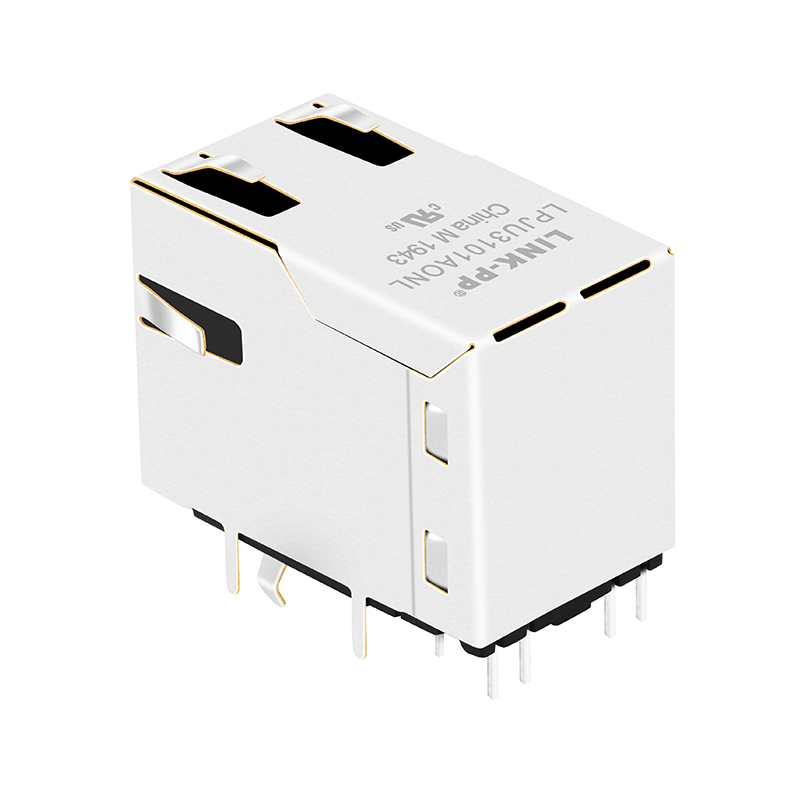

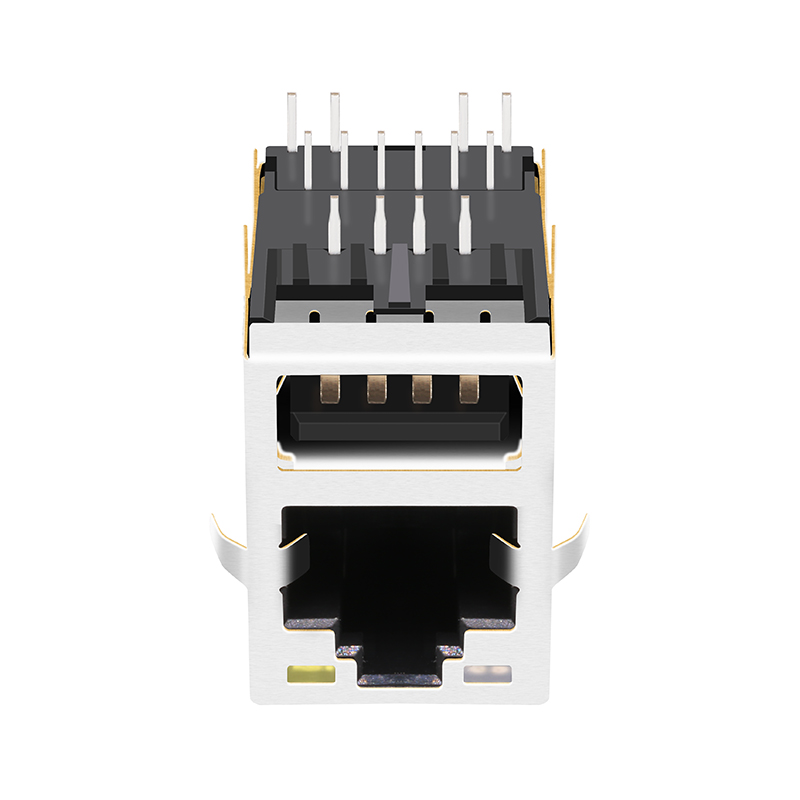

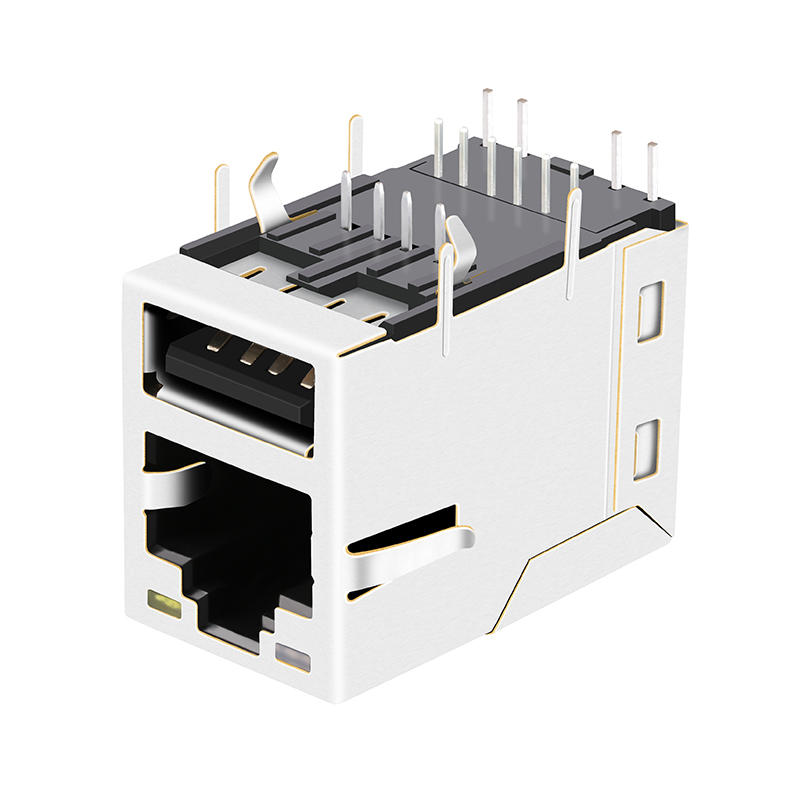

MIC24U1C-6131W-LF3 RU3-261A1D11 RC-122C09-015 RJ45 Magjack Connector with Single USB
Products Description
Item RJ45 Female Connector
Part Number LPJU3101AONL
Alternative Part Number GTI07-30113
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

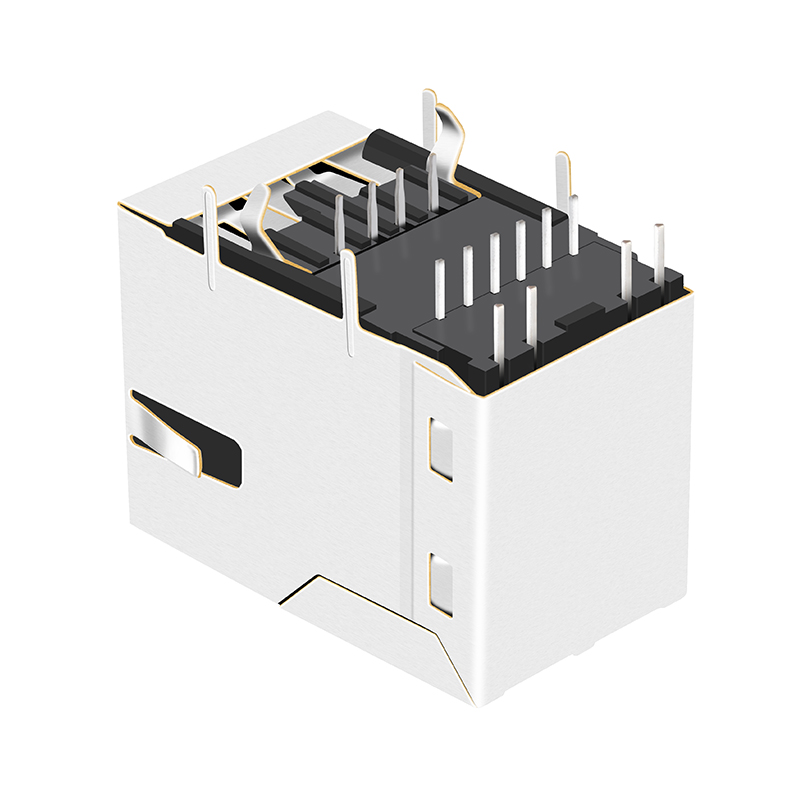

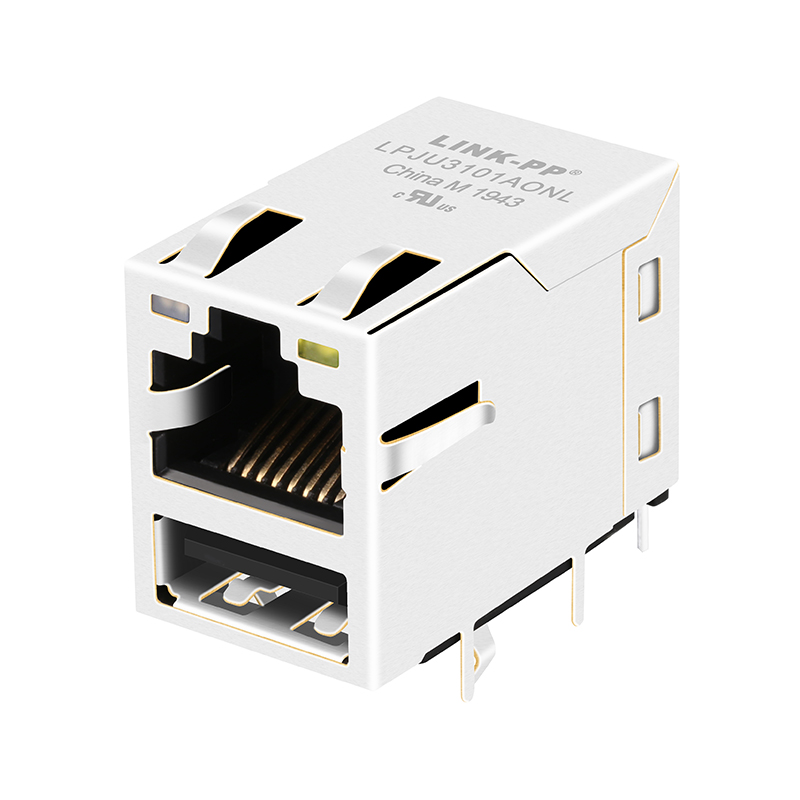

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7 Detail 8 Detail 9

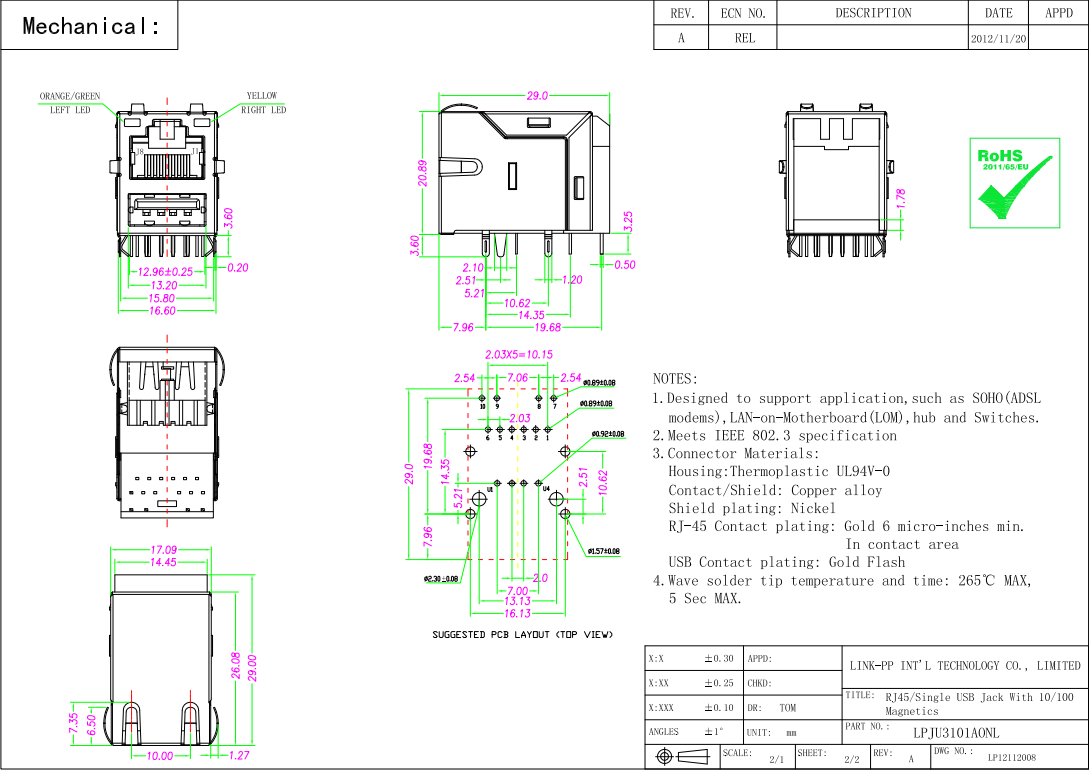

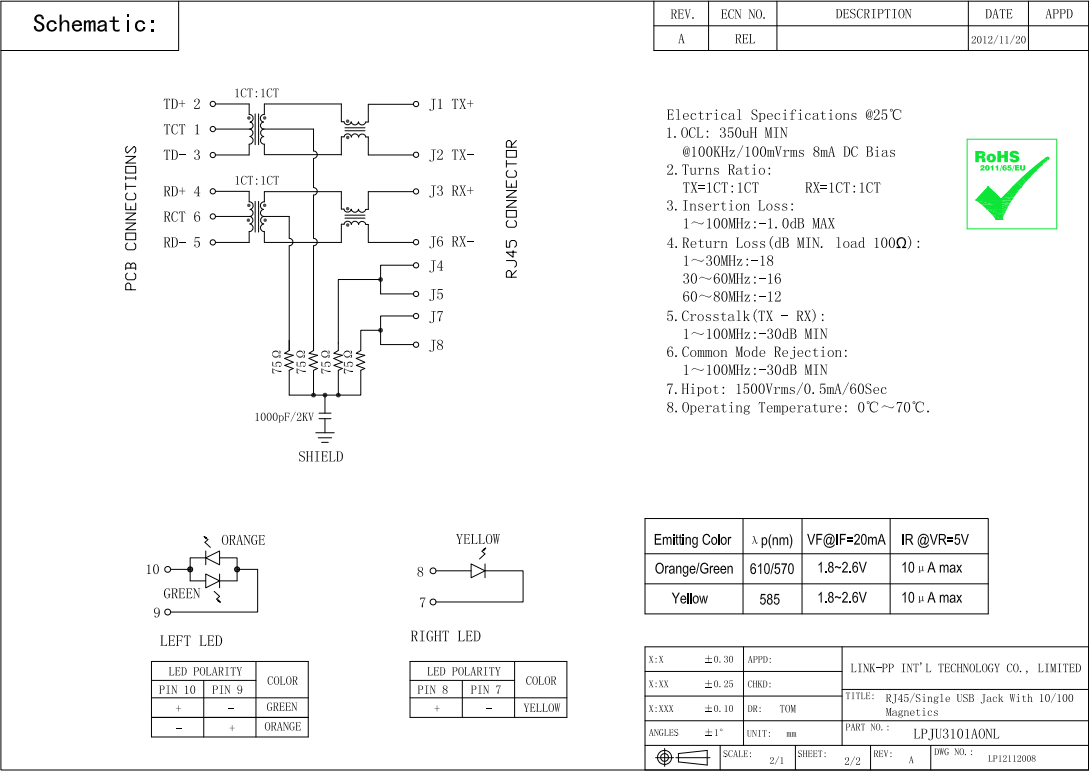

Dimensions Schematic
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional, complete solutions for magnetic components along with strong technical support. Main Products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, as well as ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems. We export our products to more than 30 countries and regions worldwide, covering markets in Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique customer requirements. We trust that our strength in the field and our commitment to high quality will build long-term partnerships.
Factory Facility 1 Factory Facility 2 Factory Facility 3 Factory Facility 4
FAQ

Q1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.

Q2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you should cover the shipping fee.

Q3. What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production orders.

Q4. What after-service can you offer?

We offer a one-year warranty period and online technical support 24 hours a day.

Q5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom needs.

Q6. What is your advantage?

Over 19 years of professional production experience and established partnerships with major global technology enterprises.
