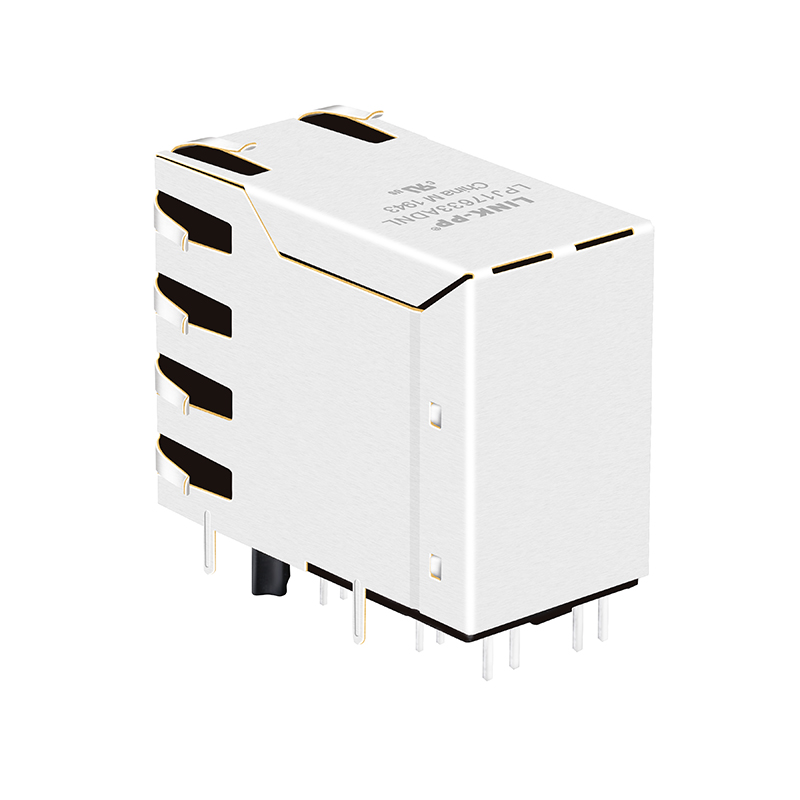

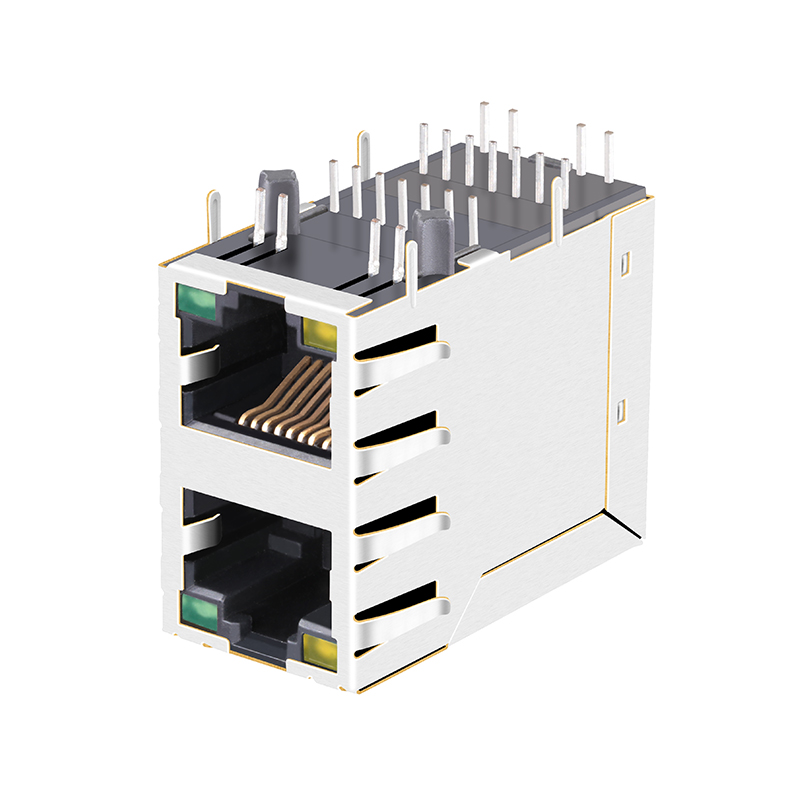

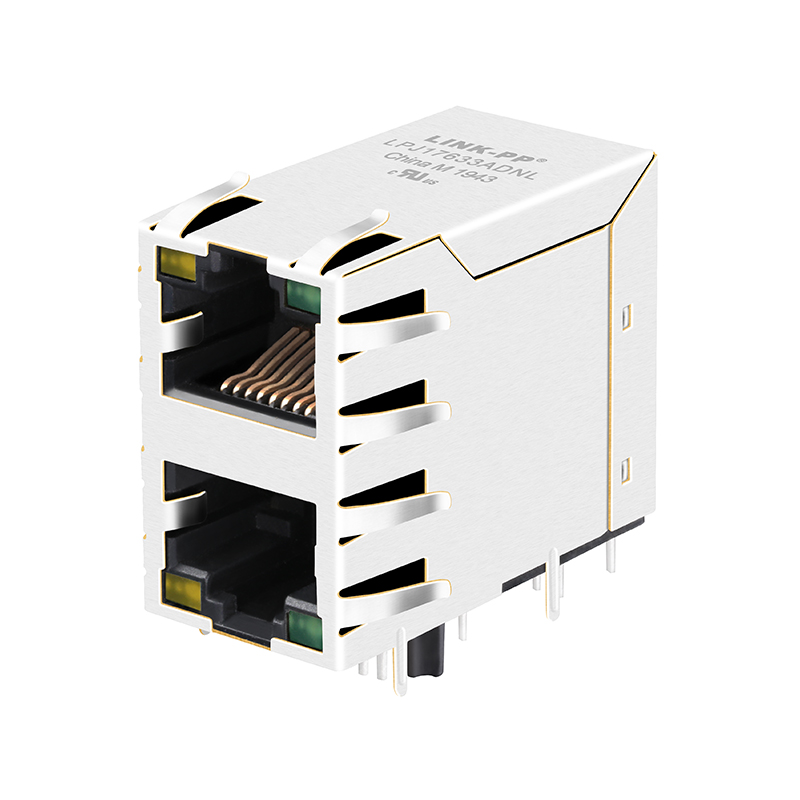

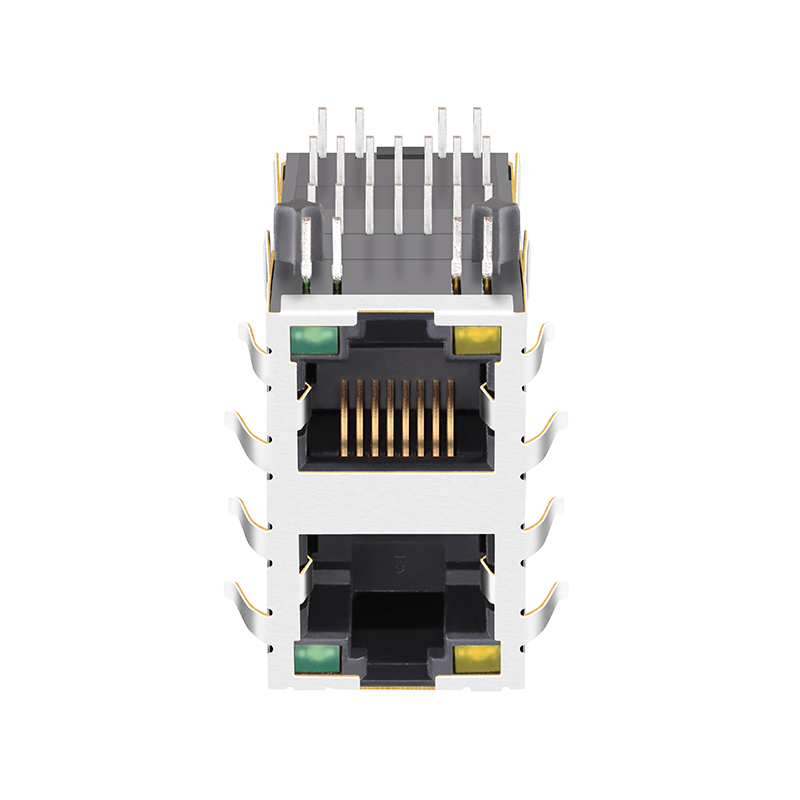

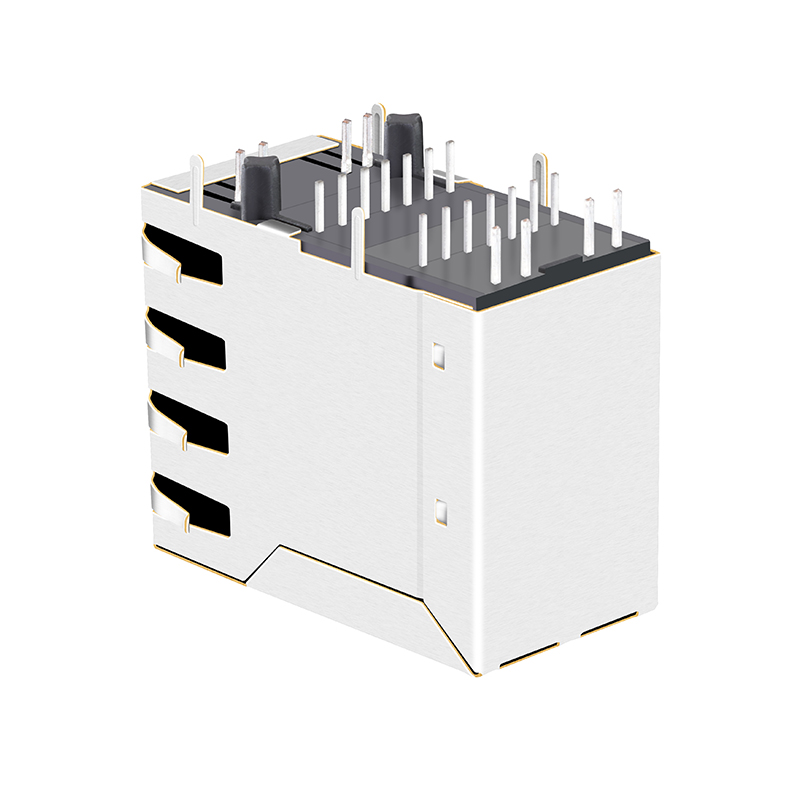

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
Part Number
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020
Application-LAN
ETHERNET(NON PoE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
4
Diodes
NO DIODES
LED Option
Yellow/Green LEDS
Latch
UP/Down
Number of Ports
2x1 Port
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
With
Speed
10/100 Base-T Magnetics
Temperature
-40 TO 85°C / 0 TO 70°C
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy
100% Quality Guarantee
Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Partner of TE (Tyco) For 9 Years
Successful Customers: Texas Instruments, Samsung, Cisco, Siemens, and Intel
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years
Competitive Price & Service
More Competitive Price Than Pulse, Tyco, Halo, Wurth, and Amphenol
Fast Delivery: 2-3 Weeks After Order Placement
Free Samples Are Available
Custom Designs & Engineering Tailored to Your Requirements
Up to 90% Off Shipping Costs via DHL, UPS, FEDEX, or TNT
Corporate Policy
Corporate Goal: Achieve the highest level of customer satisfaction through continuous improvements in Quality, Delivery, and Service.
Committed to and expecting premium quality performance from every employee.
The company standard is defect-free products and services.
Preferred Supplier for Major Electronics Manufacturers
Trusted supplier of critical parts for TI, Samsung, Cisco, Siemens, and Intel. You can inspect our brand quality markings on the popular BeagleBone Board.
Frequently Asked Questions (FAQ)
Q
What is the transmission speed of this RJ45 Modular Jack?
This connector is designed to support 10/100 Base-T speeds, suitable for standard Fast Ethernet networking applications.
Q
What is the operating temperature range for these parts?
Depending on the specific configuration, the operating temperature supports ranges from -40°C to 85°C (industrial) or 0°C to 70°C (commercial).
Q
Does this modular jack support Power over Ethernet (PoE)?
No, this is a Non-PoE Ethernet RJ45 modular jack, meaning it is intended only for signal transmission without carrying high-current power.
Q
What options are available for the contact mating area plating?
We offer various Gold plating thicknesses for the mating contact area, including 6u", 15u", and 30u", depending on your durability and conductivity requirements.
Q
Is this component compliant with international environmental directives?
Yes, it meets RoHS specifications (specifically RoHS-5 with lead in solder exemption) and complies with Reach standards.
Q
What LEDs are built into this modular jack?
It features integrated Yellow/Green LED options to provide clear visual indicator status updates for connectivity and data flow.
