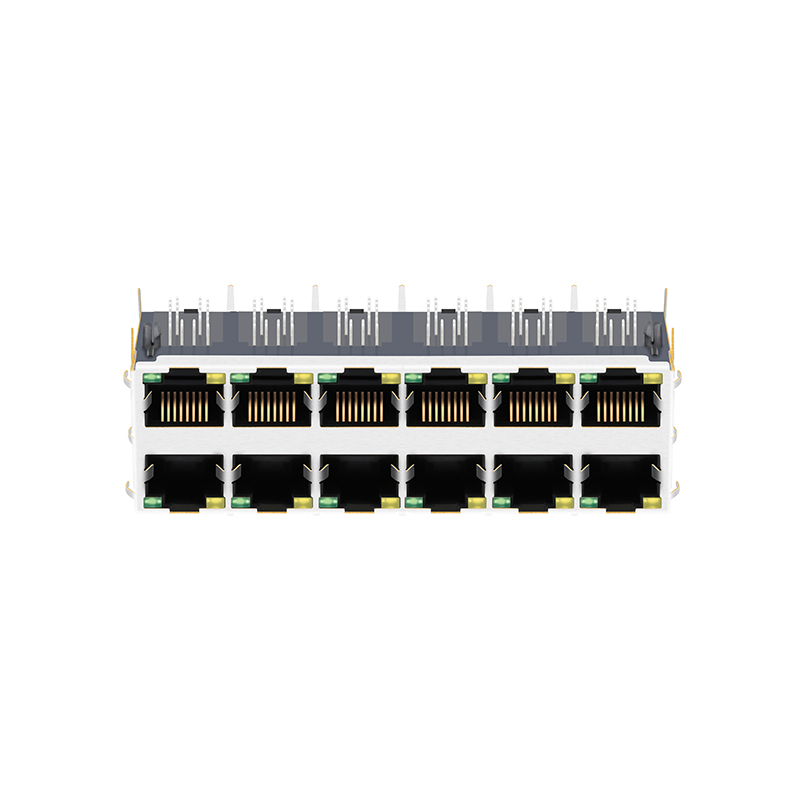

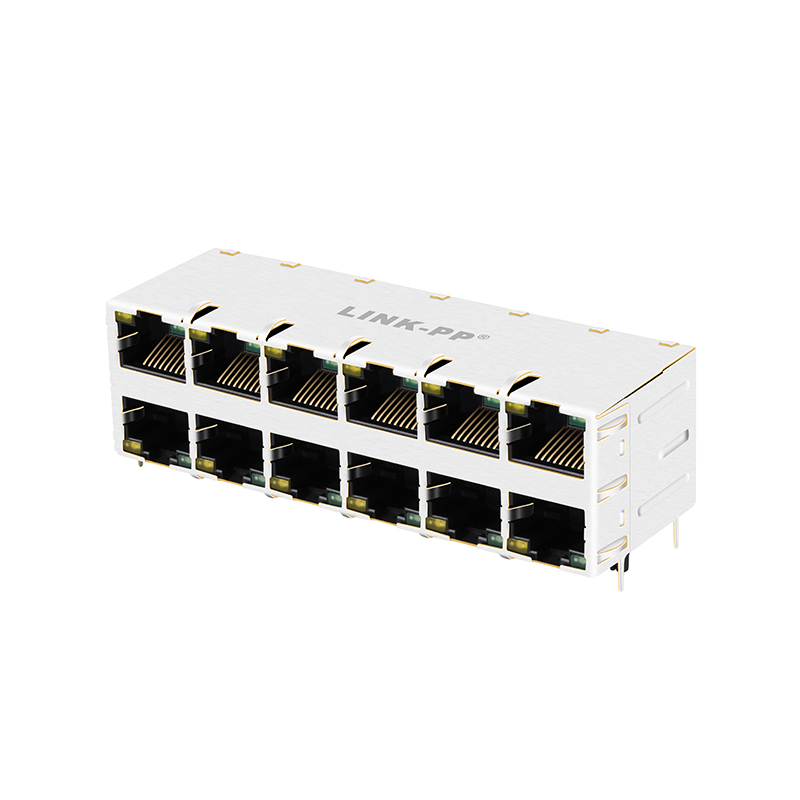

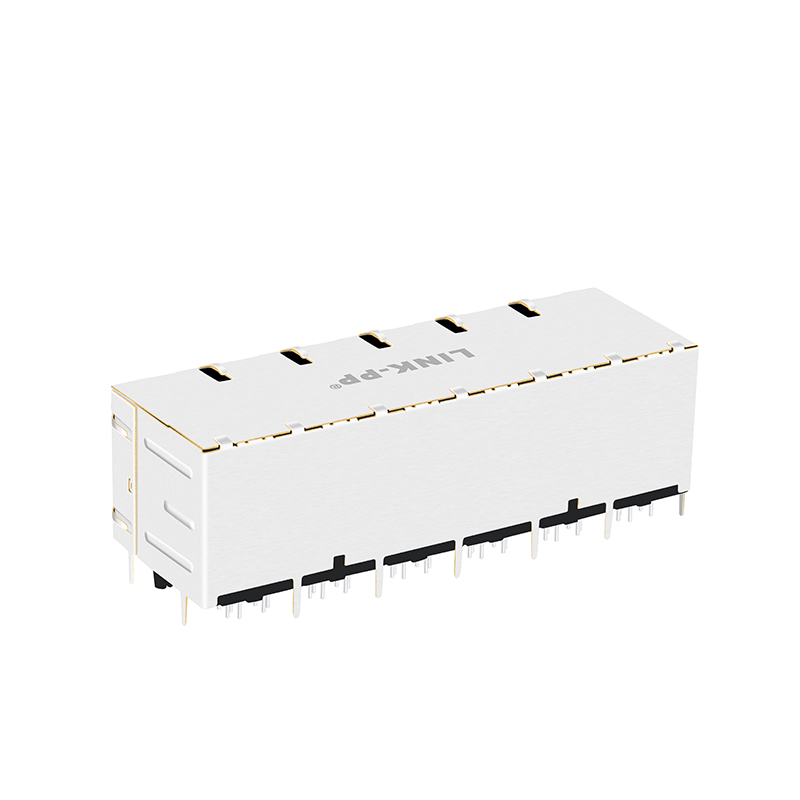

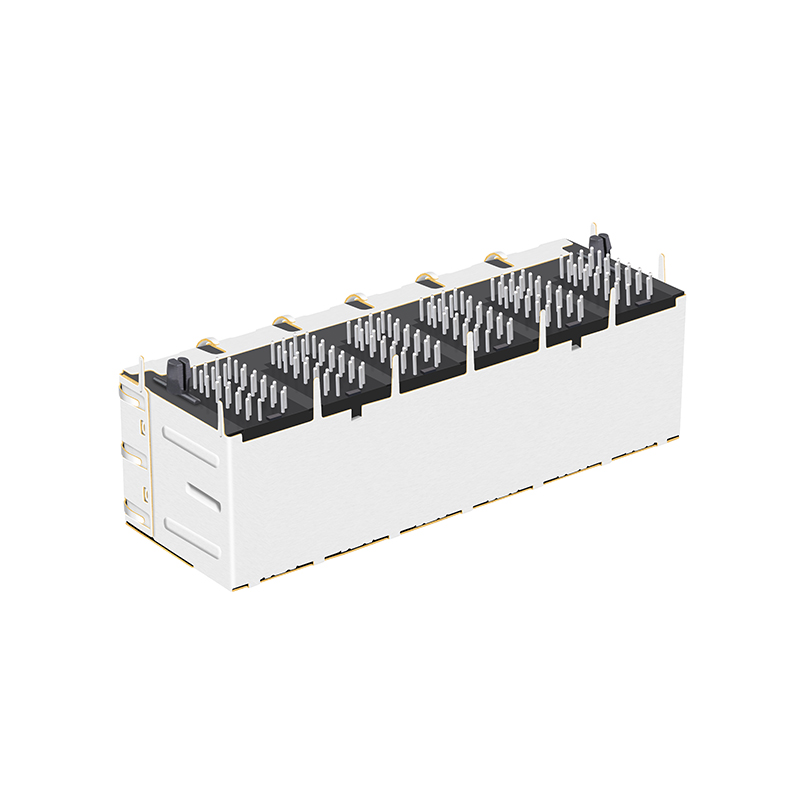

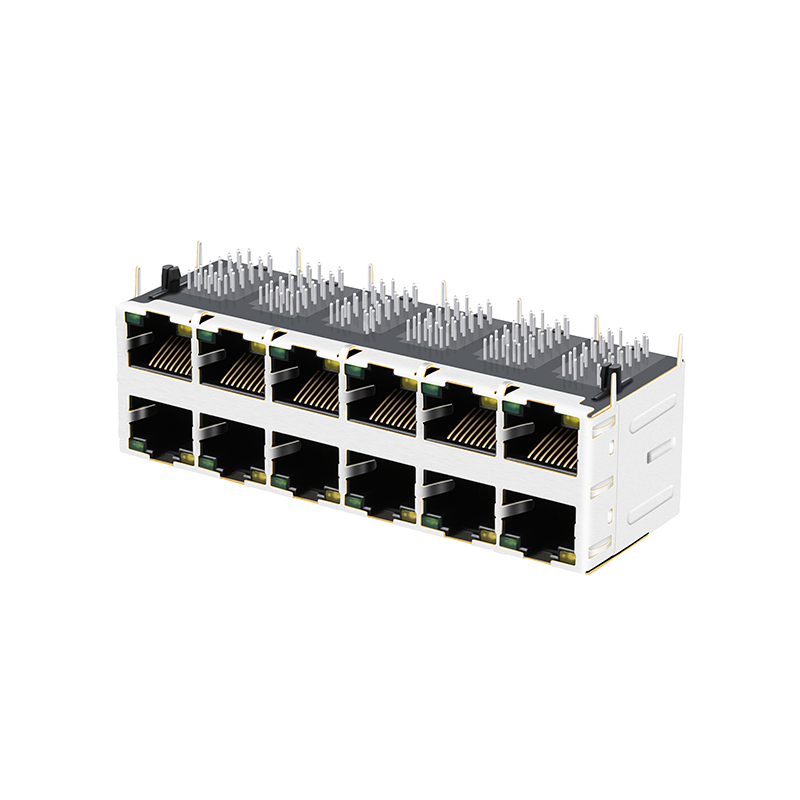

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP
| Part Number |
RJGE-12M6170DJP |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
2X6 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000/10G BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
Integrated RJ45 Connector and Discrete Magnetic Transformers Solutions
- ISO 9001:2008 Registered manufacturing systems
- UL Safety Certification
- REACH compliant products
- RoHS environmental standards
- Active global environmental policy compliance
- Manufactured under strict engineering controls
- 100% fully tested (not just batch tested)
- Trusted supplier relationships with industry giants
- Standard 6-year product quality guarantee
- Cost-effective alternative solutions
- Fast lead times: 2-3 weeks production time
- Free evaluation samples available upon request
- Custom design support tailored to specification
- Optimized logistics and shipping terms
Frequently Asked Questions
What is the transmission speed of the RJGE-12M6170DJP connector?
This stacked jack supports 10/100/1000 Base-T (Gigabit Ethernet) speeds, as well as 10G Base-T configurations.
Does this stacked RJ45 jack support Power over Ethernet (PoE)?
No, the RJGE-12M6170DJP is designated for Ethernet (Non-PoE) LAN applications.
What is the port density of this physical component?
It features a 2x6 configuration, providing 12 ports in total in a compact, vertically-stacked side entry layout.
What are the options for shielding and LEDs?
The connector can be supplied either with or without LED indicators, and is available with or without EMI shielding tabs to match design needs.
What is the standard operating temperature range?
It supports standard temperature ratings of 0 to 70°C and extended industrial ranges of -40 to 85°C.
