Home > 1.25G SFP Module > SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

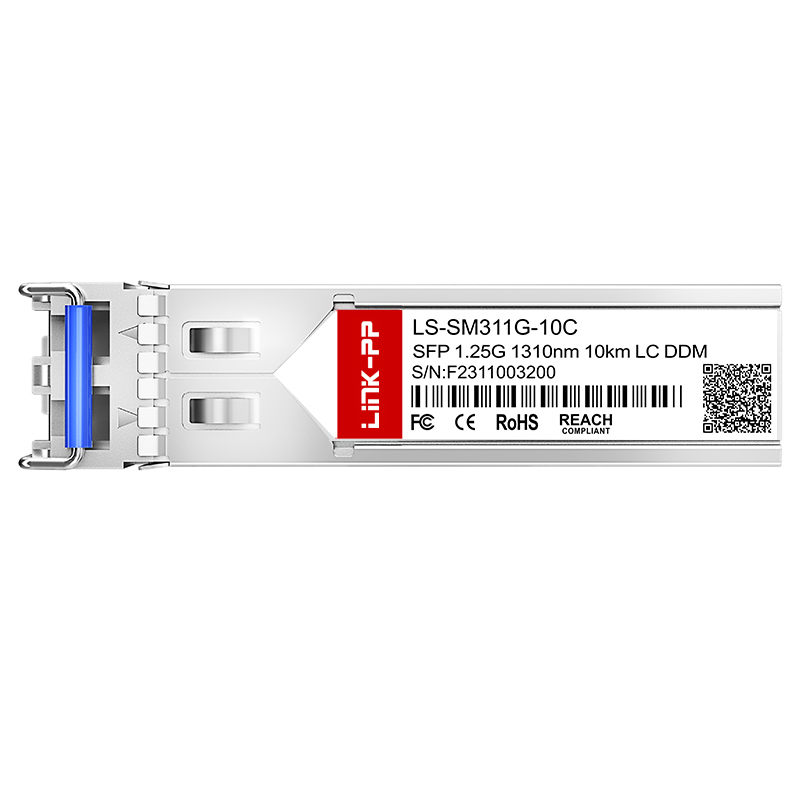

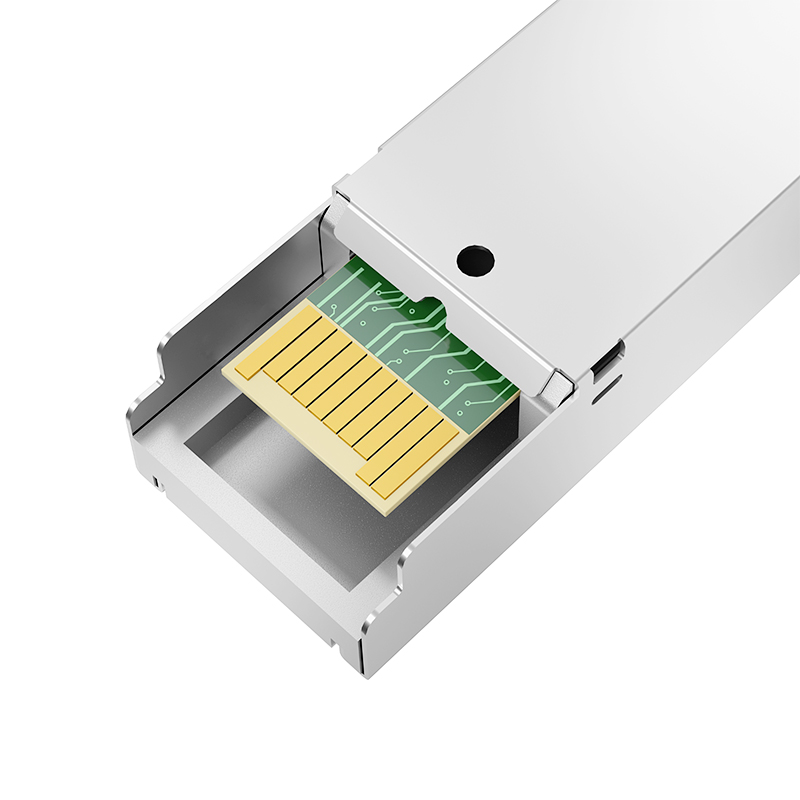

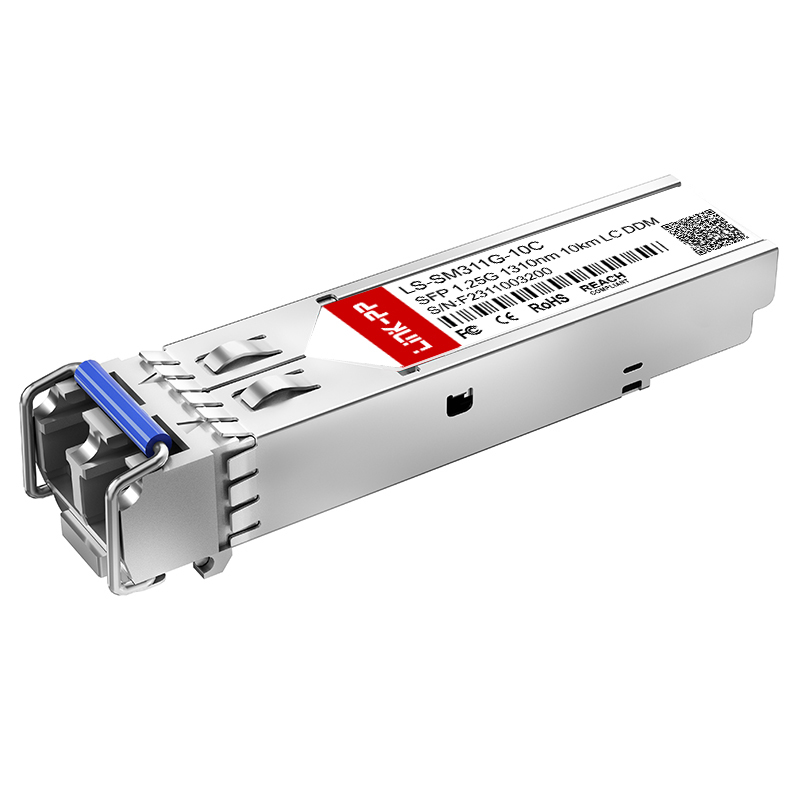

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
1 / 5
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

Send Inquiry

Product Description

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
Products Description
Item 1000BASE SFP
Compatible H3C SFP-GE-LX-SM1310
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 1310nm
Max Cable Distance 10Km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-20dBm
Receiver Overload -3dBm
Power Consumption ≤1W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
Products Overview
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solutions Graphic
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device solutions can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructers, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Factory Overview
Manufacturing Details 1 Manufacturing Details 2
Related Products SFP Cage
SFP Cage Product 1 SFP Cage Product 2
Why Choose Us
Strength 1 Strength 2 Strength 3 Strength 4
Company Profile
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, with a large workforce at present and an abundant monthly production capacity of 3000K, products can be delivered within a short timeframe.

Moreover, a full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, products are developed, manufactured, and sold globally.
Office View Testing Equipment
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the customer handles the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can proceed with a detailed discussion.
6. What is your advantage?
Over 19 years of production experience and long-term partnerships with major global industry leaders.
