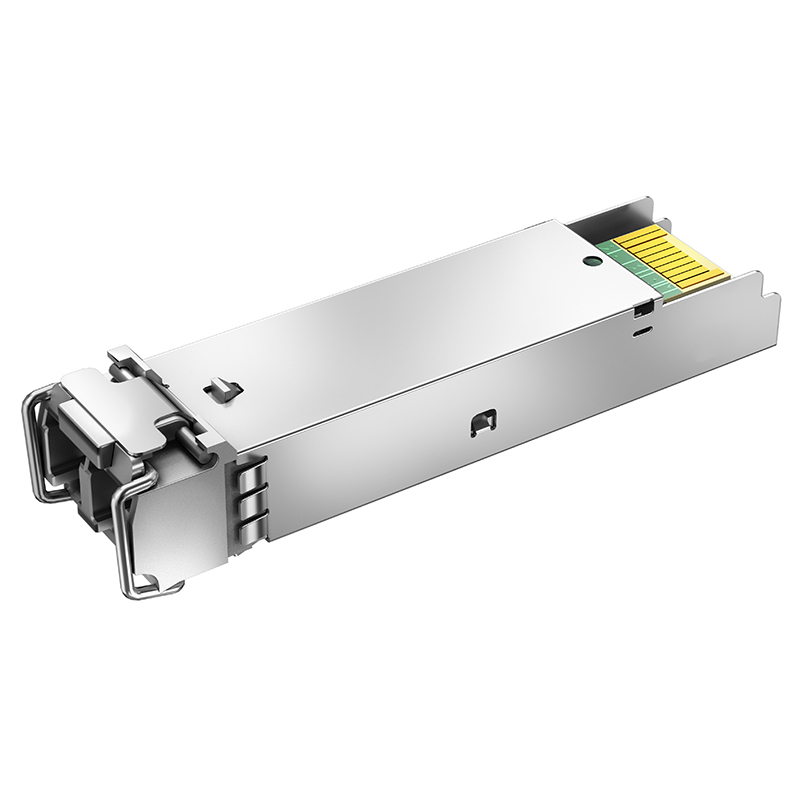

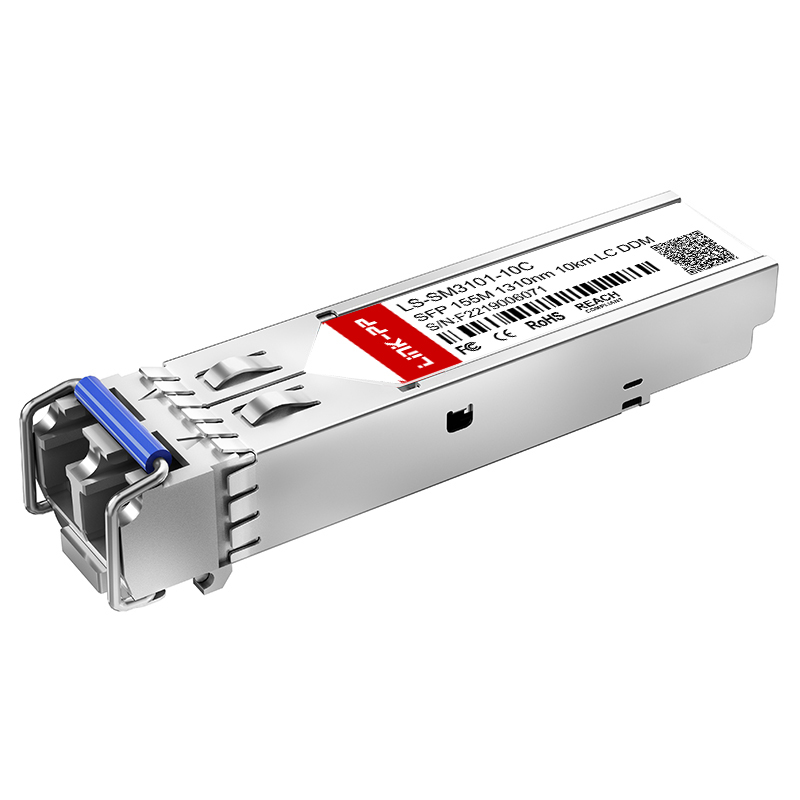

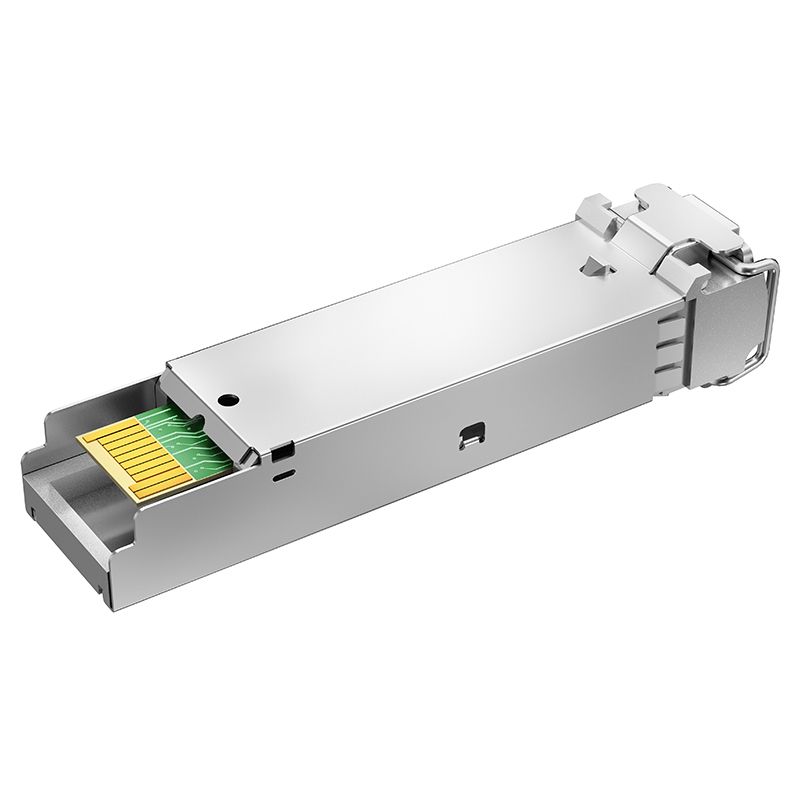

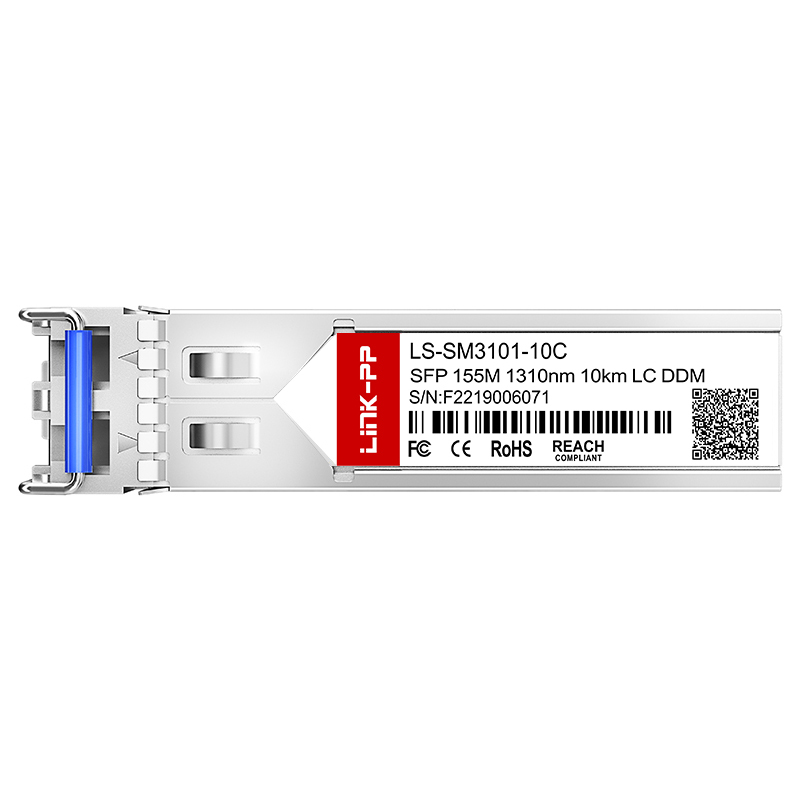

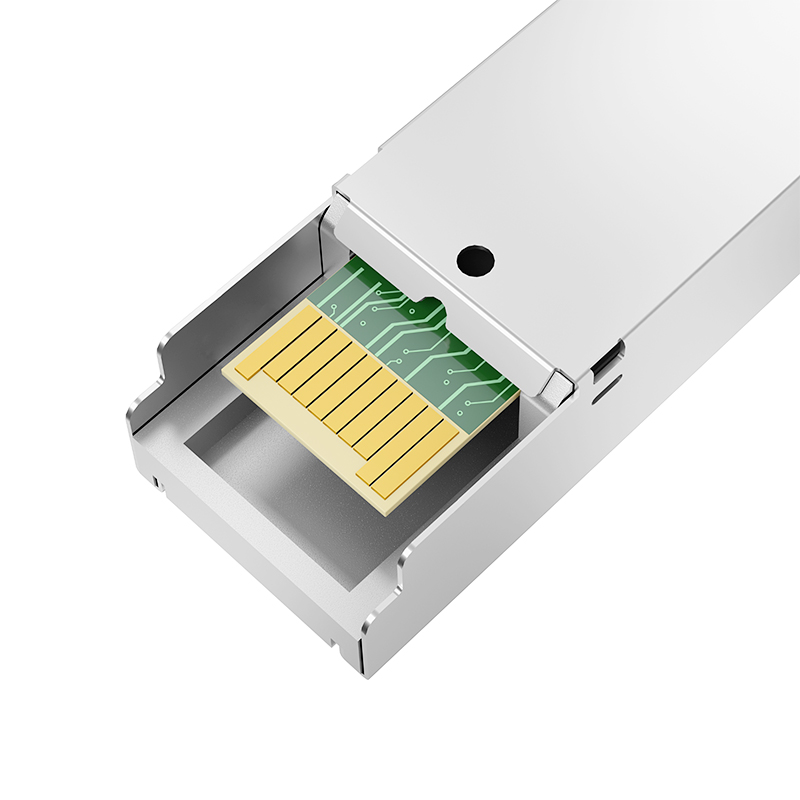

100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
1 / 5
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km

100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km

Send Inquiry

Product Description

100BASE-LX Duplex LC SMF Optical Transceiver Single Mode SFP Module 1310nm 10km
Products Description
Item 100BASE SFP
Part Status Active
Form Factor SFP
Max Data Rate 100Mbps
Wavelength 1310nm
Max Cable Distance 10km
Media SMF
Connector Duplex LC
Optical Component FP 1310nm
TX Power -15~-8dBm
Receiver Sensitivity < -32.5dBm
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE802.3ab, GR-468, MSA Compliant
Warranty 5 Years
Sample Available
Product Overview Map
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solutions Overview
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems Diagnostics
Testing Process 1 Testing Process 2
Related Products SFP Cage
SFP Cage Item 1 SFP Cage Item 2
Why Choose Us
Standardized Management Advanced Equipment Professional Testing Global Supply Chain
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, samples can be provided to test quality, with shipping fees covered by the customer.
What is your delivery time?
Ready to ship for standard stock items, and 15-30 days for mass production orders.
What after-sales service do you offer?
We provide a comprehensive warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please reach out to us with your specifications so that we can have a detailed discussion.
What is your advantage?
With over 19 years of production experience, we maintain long-term partnerships with leading industry enterprises and ensure top-tier product reliability.
