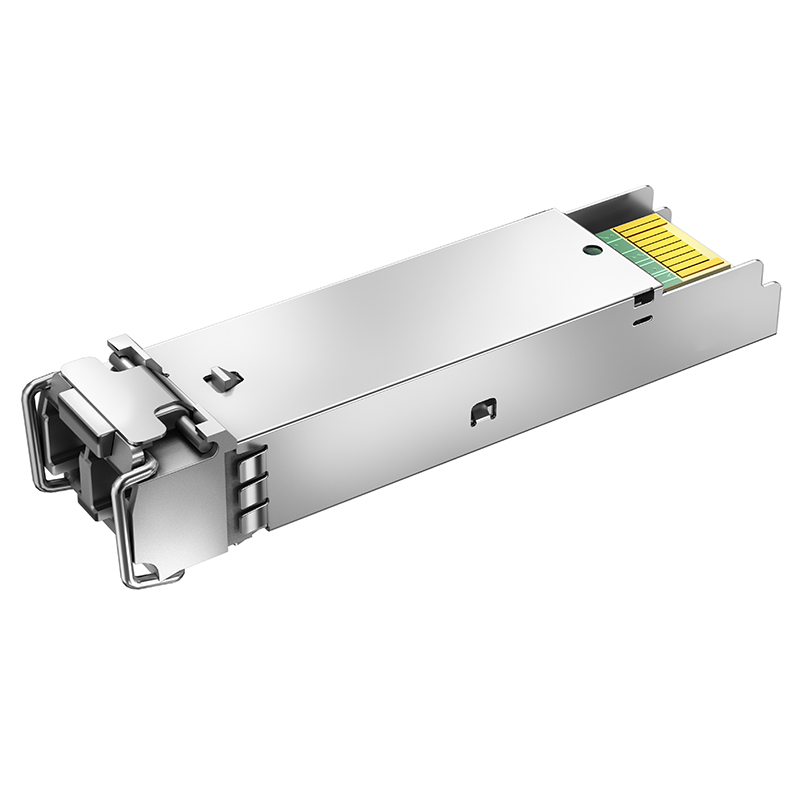

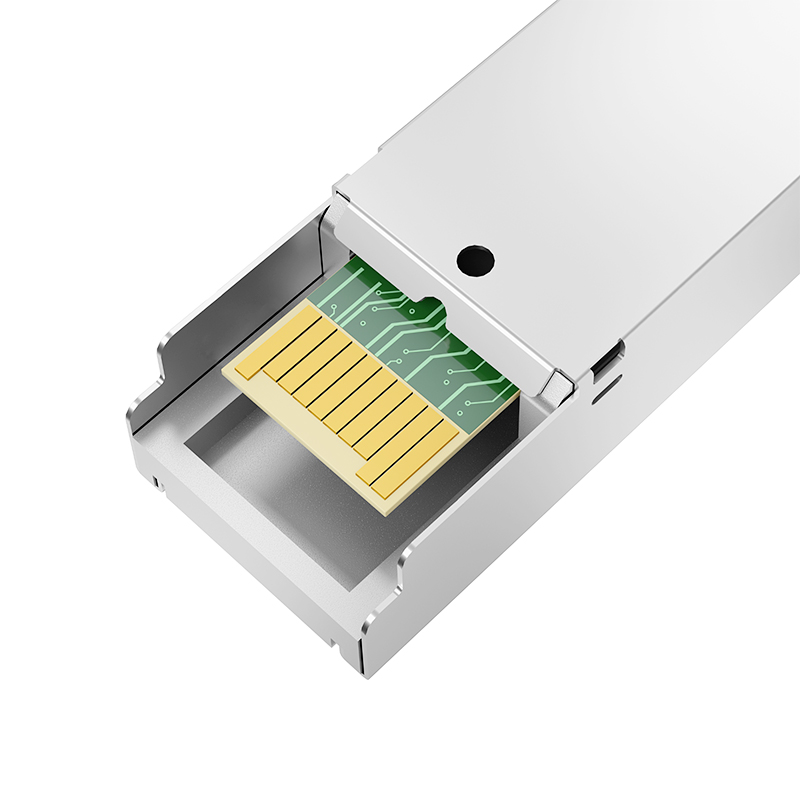

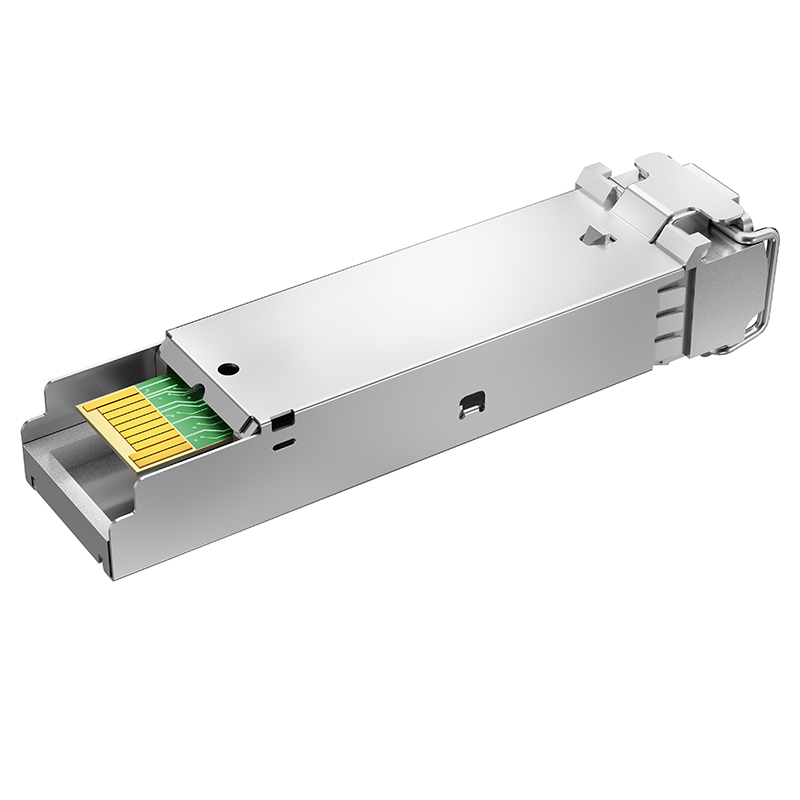

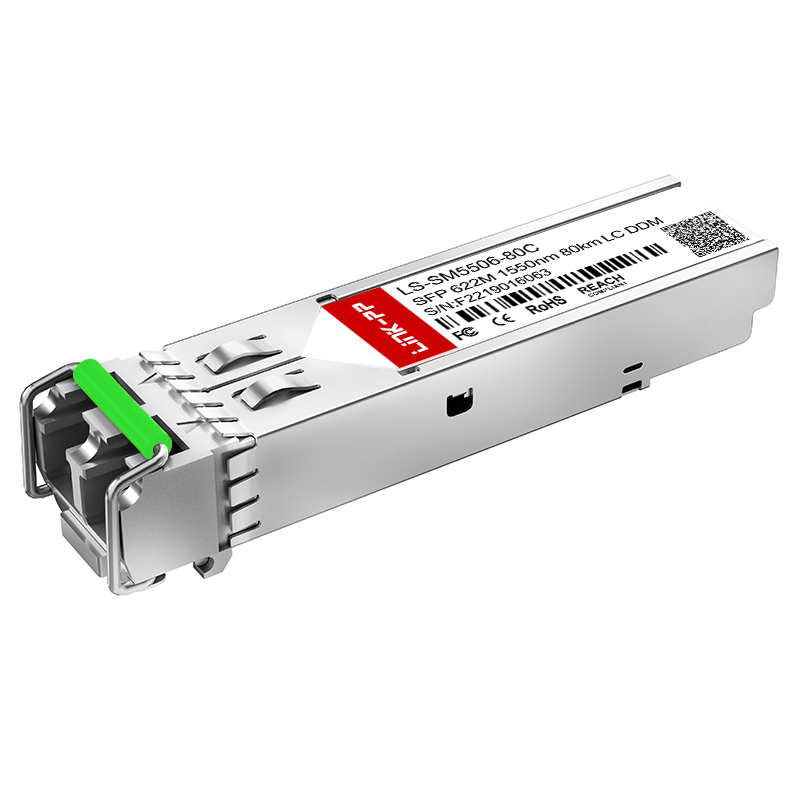

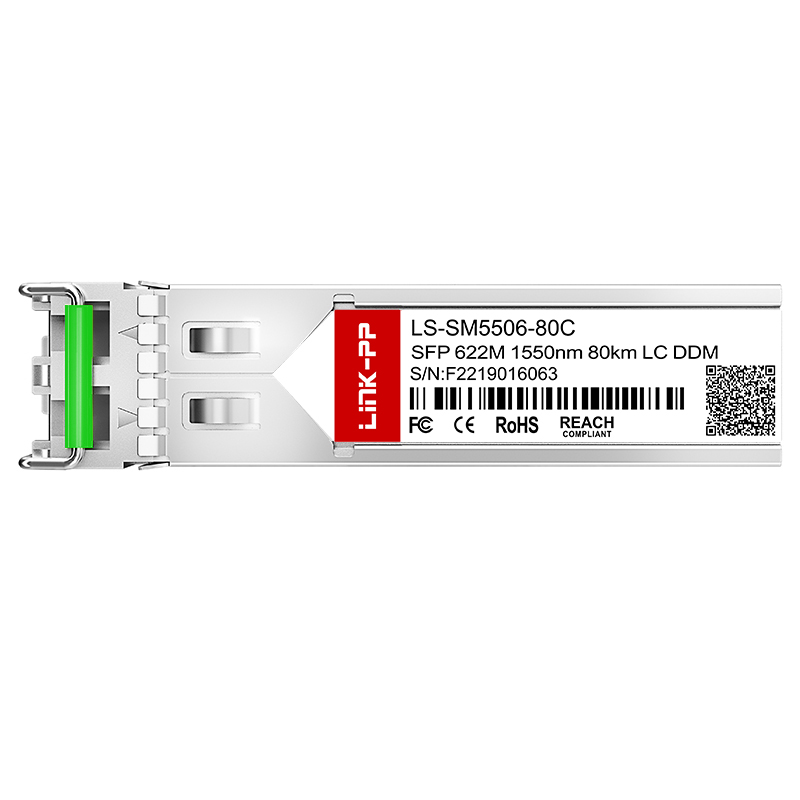

Single Mode 1550nm SFP 622M 80km DDM Duplex LC Optical Transceiver Module

Product Description

Single Mode 1550nm SFP 622M 80km DDM Duplex LC Optical Transceiver Module
Part No. LS-SM5506-80C
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 1550nm
Max Cable Distance 80km
Connector Duplex LC
Media SMF
Transmitter Type DFB
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Module Solutions
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C 622Mbps 850nm 500m Multi-mode Yes
LS-SM3106-S5C 622Mbps 1310nm 500m Single Mode Yes
LS-SM3106-02C 622Mbps 1310nm 2km Single Mode Yes
LS-MM3106-02C 622Mbps 1310nm 2km Multi-mode Yes
LS-SM3106-20C 622Mbps 1310nm 20km Single Mode Yes
LS-SM3106-40C 622Mbps 1310nm 40km Single Mode Yes
LS-SM5506-80C 622Mbps 1550nm 80km Single Mode Yes
LS-SM5506-A0C 622Mbps 1550nm 100km Single Mode Yes
LS-SM5506-A2C 622Mbps 1550nm 120km Single Mode Yes
Transceiver Module Details Product Portfolio
Application Scenarios
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Quality Standard 1
Quality Standard 2
Quality Standard 3
Quality Standard 4
Company Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we have about 2000 employees at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.

Manufacturing Facility 1
Manufacturing Facility 2
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we have been partners with leading global technology brands for many years.
