1550nm TX 1310nm RX Bidirectional SFP Transceiver Module 155M Bidi 40km Simplex LC Optical for Global B2B Buyers

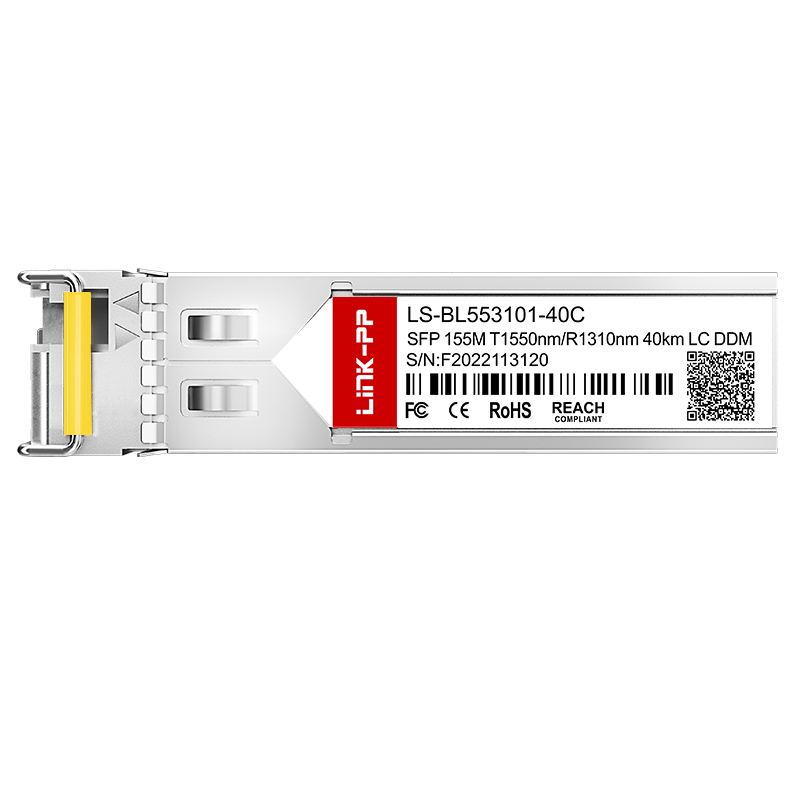

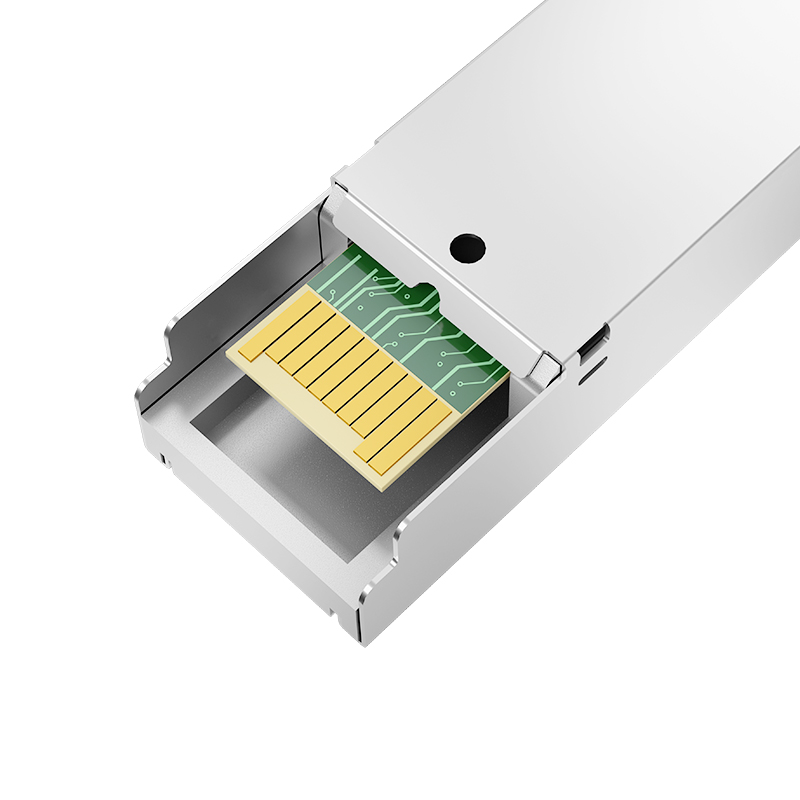

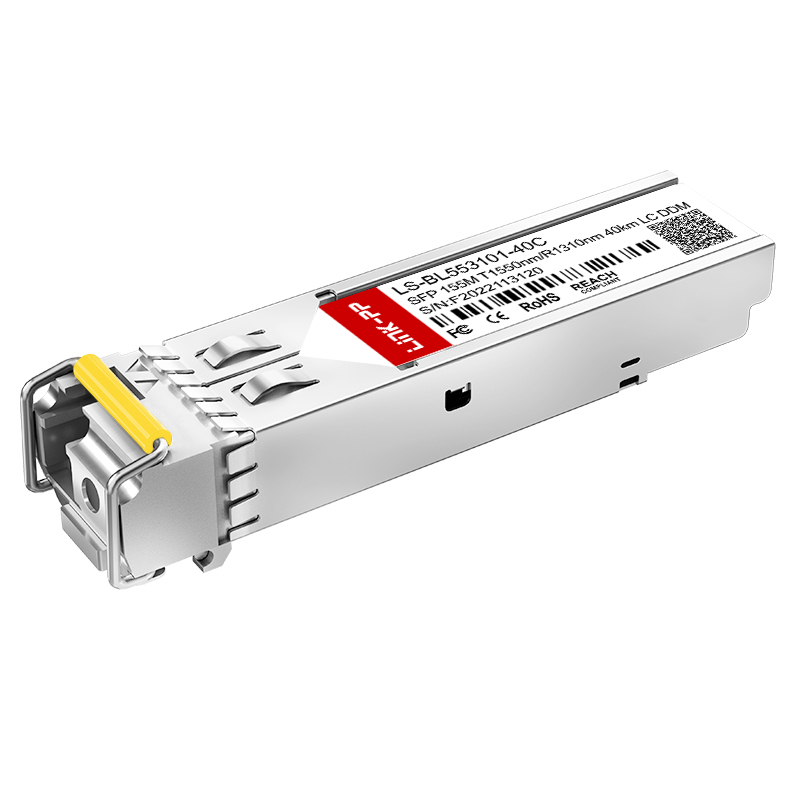

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 40km Simplex LC Optic Transceiver Module

Parameter	Specification
Part Number	LS-BL553101-40C
Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX
Max Cable Distance	40km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-8 ~ -1dBm
Receiver Sensitivity	< -32dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	SFP MSA and SFF-8472
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes
LS-BL495501-80C	155Mbps	1490nm-TX/1550nm-RX	80km	DFB/PIN	Yes
LS-BL554901-80C	155Mbps	1550nm-TX/1490nm-RX	80km	DFB/PIN	Yes

Application Scenarios

Optical Transport Networks

We provide end-to-end DWDM solutions with a comprehensive range of optical devices - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high-reliability and high-performance products utilizing mature, efficient lasers and mainstream chip solutions. The solution portfolio includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul to meet diverse needs in 4G/5G systems.

FTTx

Designed for global communication network constructers, we provide total FTTx optical fiber access solutions covering all-optical or optical-copper combined access setups and related products.

Subsystems

To ensure standard operation of communication lines, we offer optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM).

Related Products SFP Cage

Why Choose Us

FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though the shipping fee will need to be covered by the buyer.

3. What is your delivery time?

Products in stock are ready to ship immediately, while mass production typical delivery is 15-30 days.

4. What after-service can you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your inquiries to us so we can proceed with a detailed discussion based on your requirements.

6. What is your advantage?

We possess over 19 years of production experience and have maintained partnerships with leading global technology enterprises for many years.
