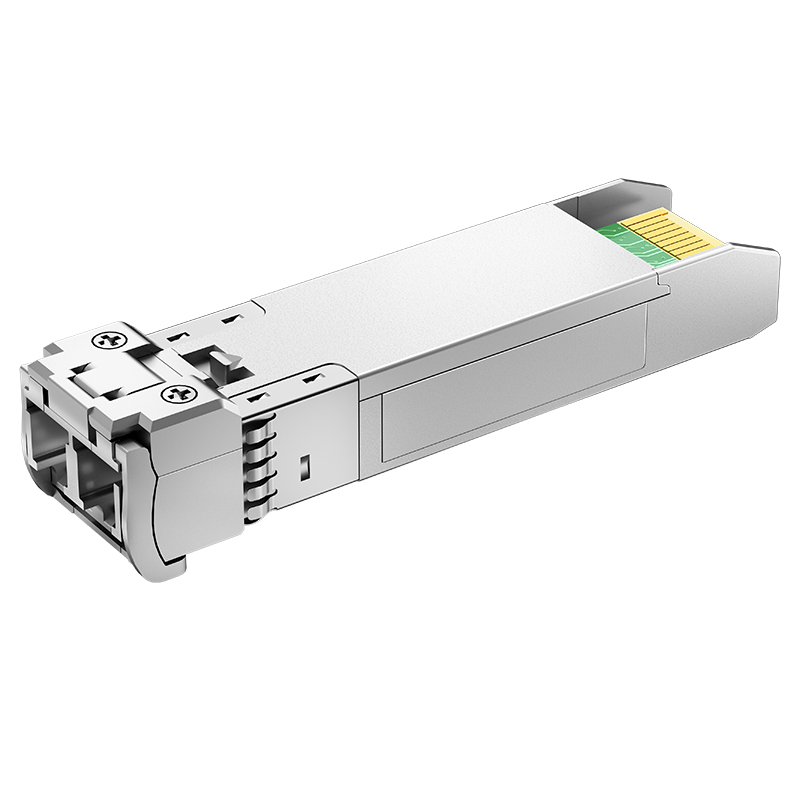

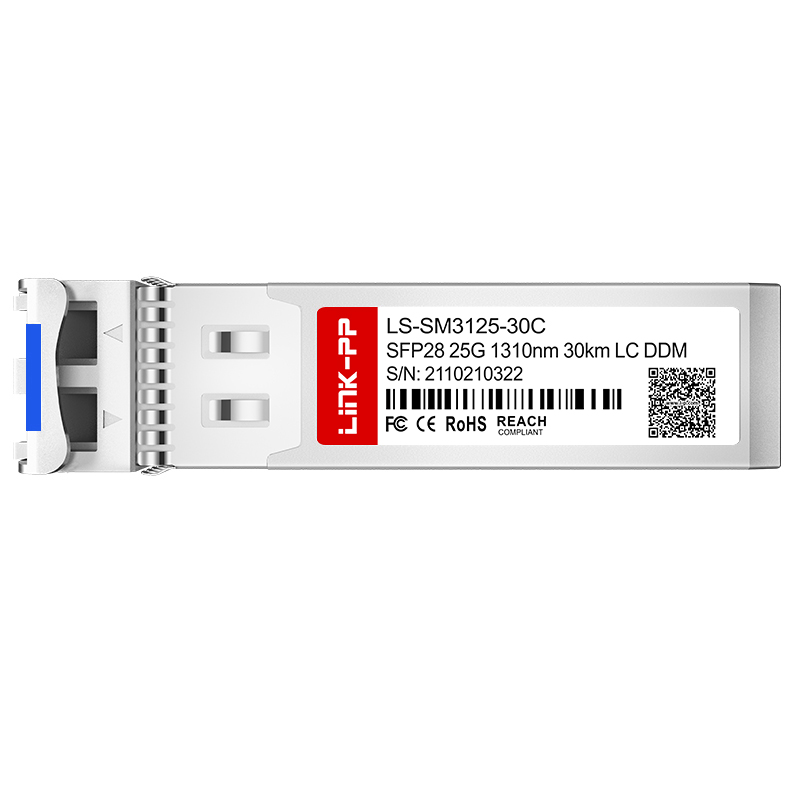

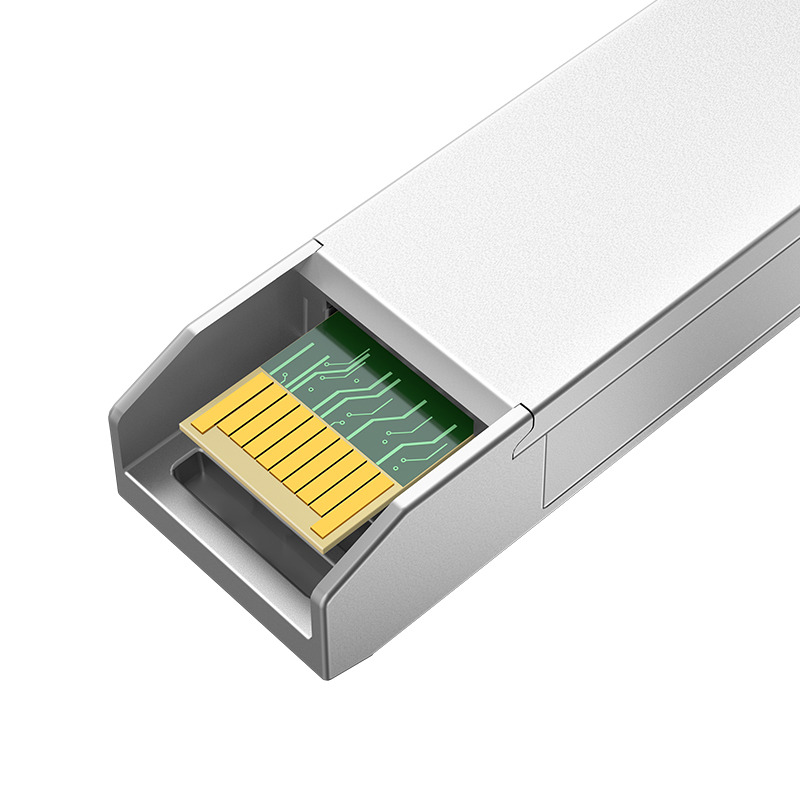

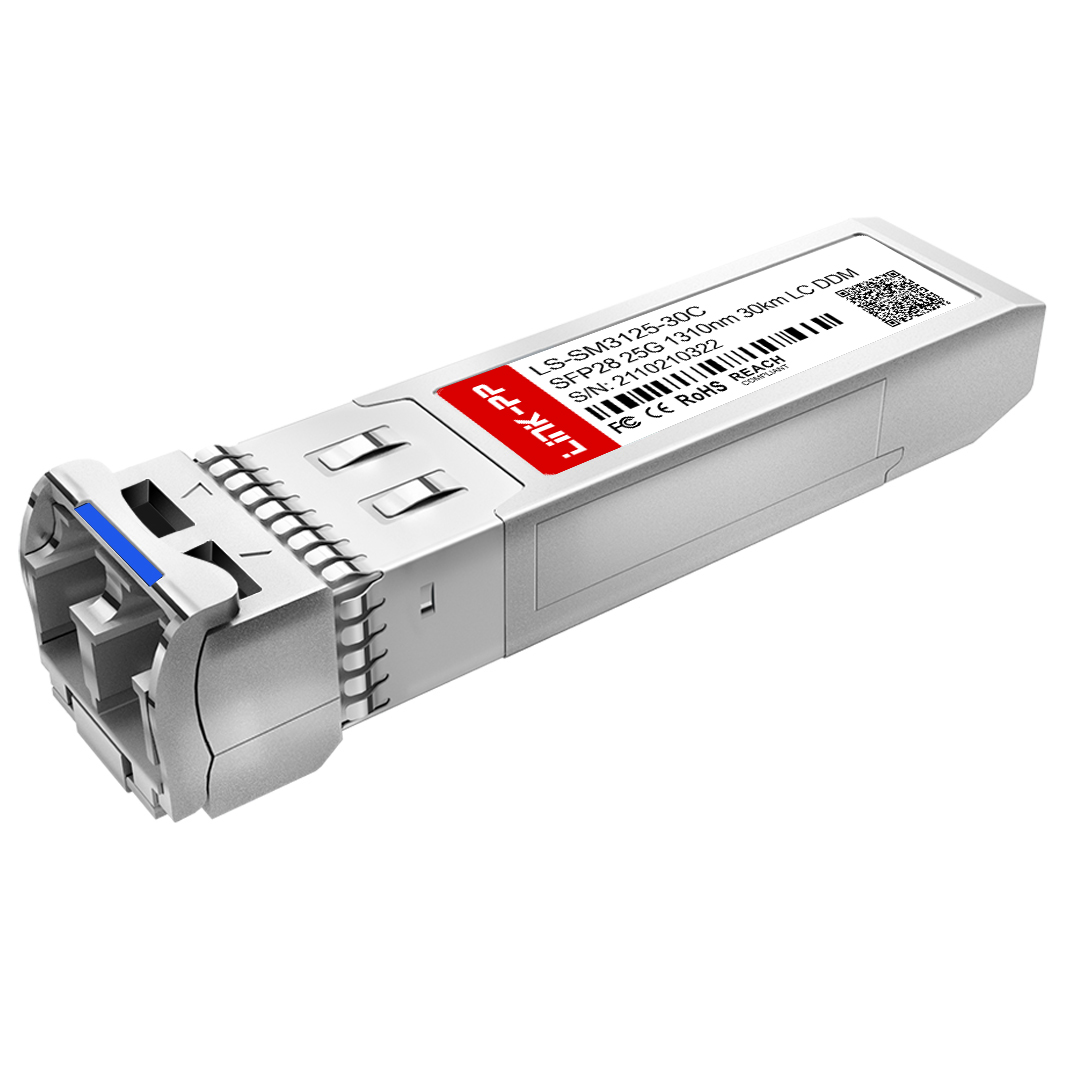

SMF 1310nm Single Mode 25G SFP28 30km DDM Dual LC Fiber Optical Transceiver Module
Products Description
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-SM3125-30C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
25Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
30km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
DML/APD |
| TX Power |
0~6dBm |
| Receiver Sensitivity |
<-19dBm |
| Receiver Overload |
-4dBm |
| Power Consumption |
≤2.2W |
| Extinction Ratio |
4dB |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
MSA Compliant, CPRI, eCPRI |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed, with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Why Choose Us
Company Profile
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, with around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Frequently Asked Questions
?
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors and SFP modules, etc.
?
Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but you should pay the shipping fee.
?
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
?
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
?
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
?
What is your advantage?
19 years of production experience in manufacturing industry.
