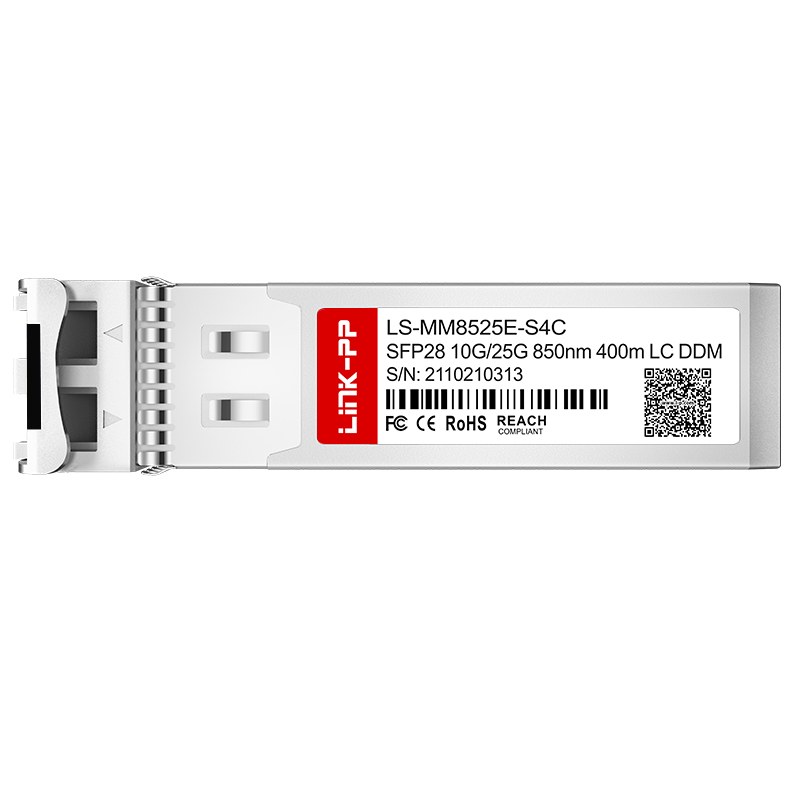

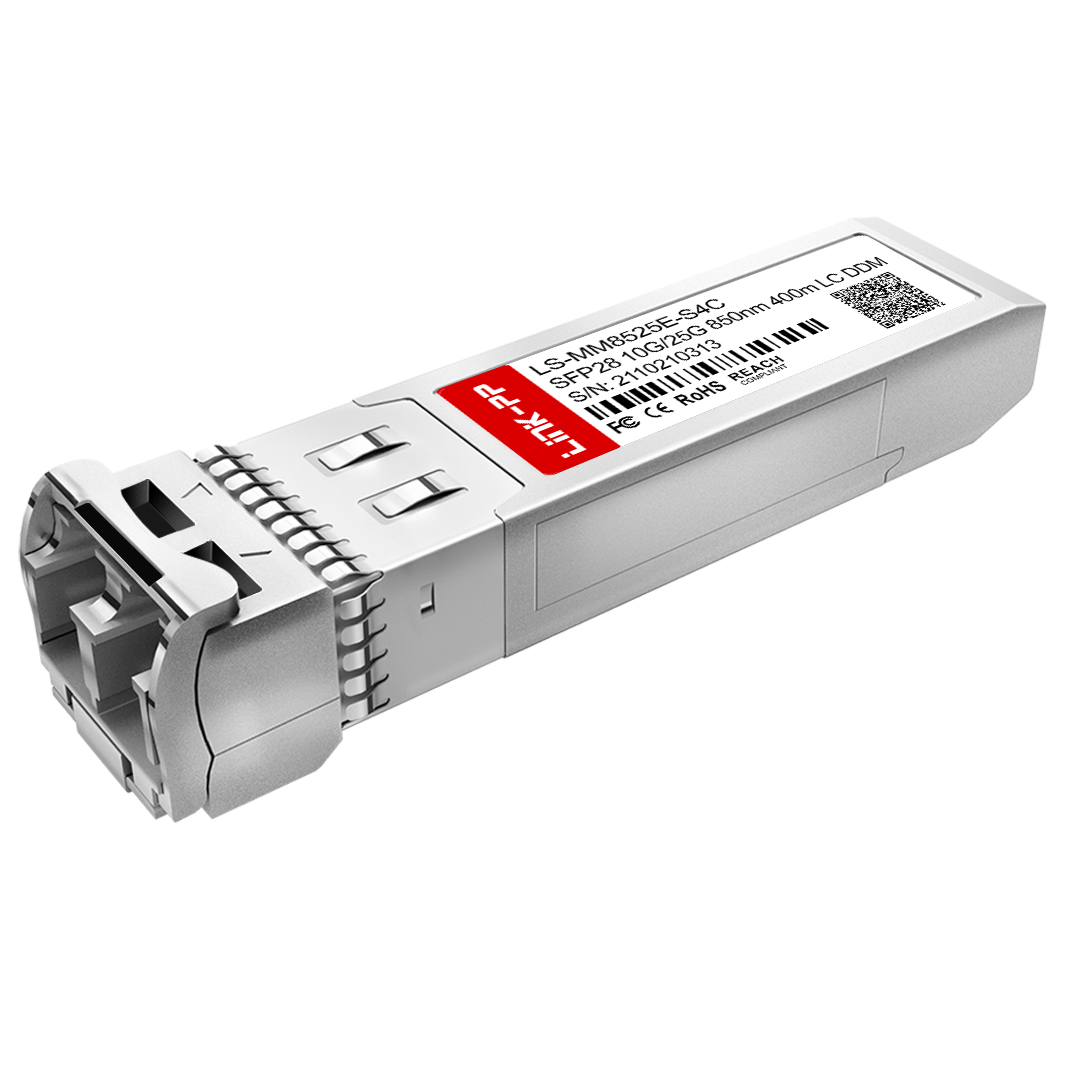

Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
1 / 5
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module

Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module

Send Inquiry

Product Description

Cisco SFP-10/25G-CSR-S Compatible 10/25G CSR SFP28 850nm 400m Duplex LC MMF Optical Transceiver Module
Products Description
Item 25G SFP28
Compatible Cisco SFP-10/25G-CSR-S
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 850nm
Max Cable Distance 400m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-10.3dBm
Receiver Overload 2.4dBm
Power Consumption ≤1W
Extinction Ratio >2dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE802.3by
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Image 1
Solution Image 2
Product 1
Product 2
Network Modules Group
Optical Transceiver Detail
Production Detail 1
Production Detail 2
Related Products SFP Cage
SFP Cage
Why Choose Us
Quality Assurance
Testing Process
Advanced Equipment
Certifications
Factory Overview 1
Factory Overview 2
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and high-quality partner alliances.
