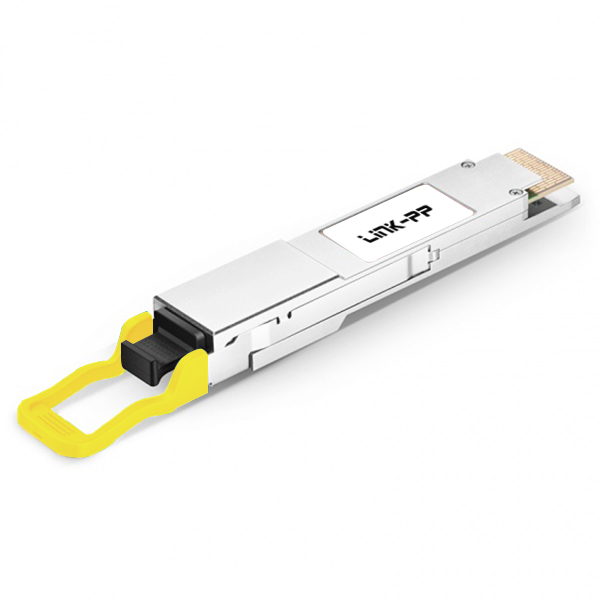

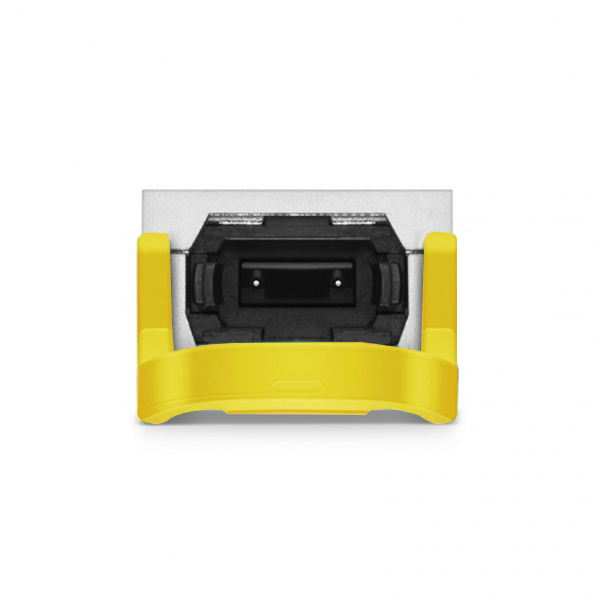

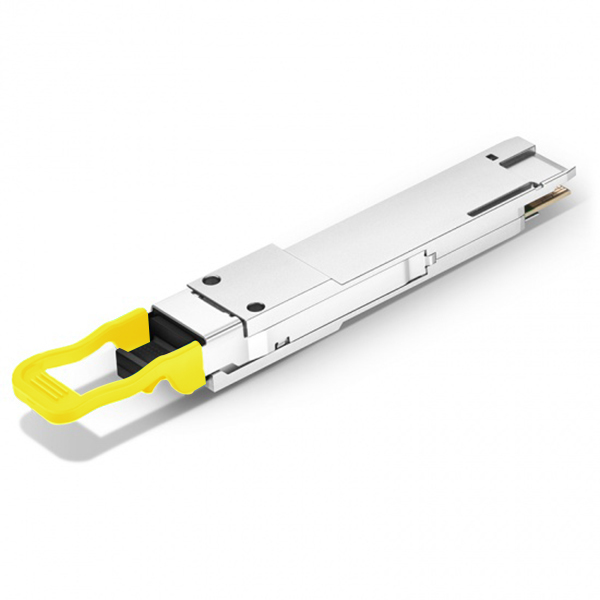

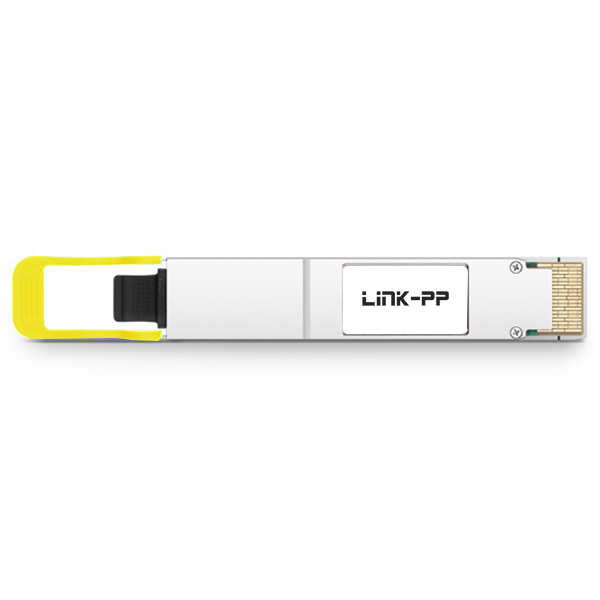

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
Products Description
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
425Gbps (4x106.25Gb/s) |
| Max Cable Distance |
500m |
| Wavelength |
1310nm |
| Connector |
MTP/MPO-12 APC |
| Media |
SMF |
| Optical Component |
DFB/PIN |
| TX Power |
-2.9~4dBm |
| RX Power |
-5.9~4.0dBm |
| Receiver Sensitivity |
-6.5dBm |
| Powerbudget |
3dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
VIEW OUR SOLUTION
✦
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
✦
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
☞ Related Products SFP Cage ☞
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment.
Established in 1997, we have around 2000 staff members at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
FAQ
Q1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees should be covered.
Q3. What is your delivery time?
Ready to ship for items in stock, and 15-30 days for mass production.
Q4. What after-service can you offer?
We offer a one-year guarantee period and online technical support 24 hours a day.
Q5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so that we can have a detailed discussion.
Q6. What is your advantage?
Over 19 years of production experience and long-term partnerships with world-renowned industry leaders.
