Lumopt
Lumopt

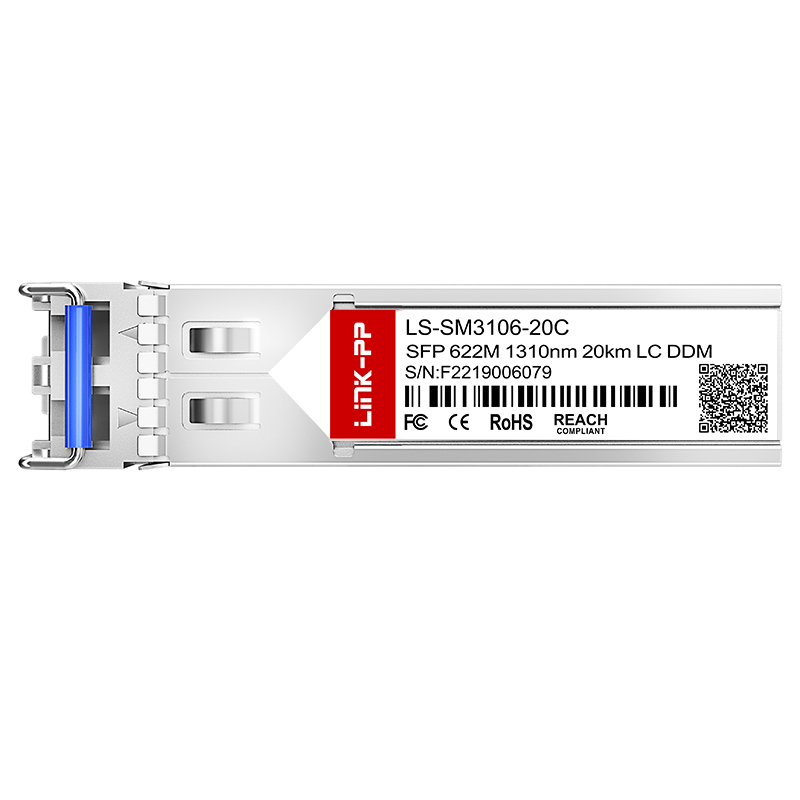

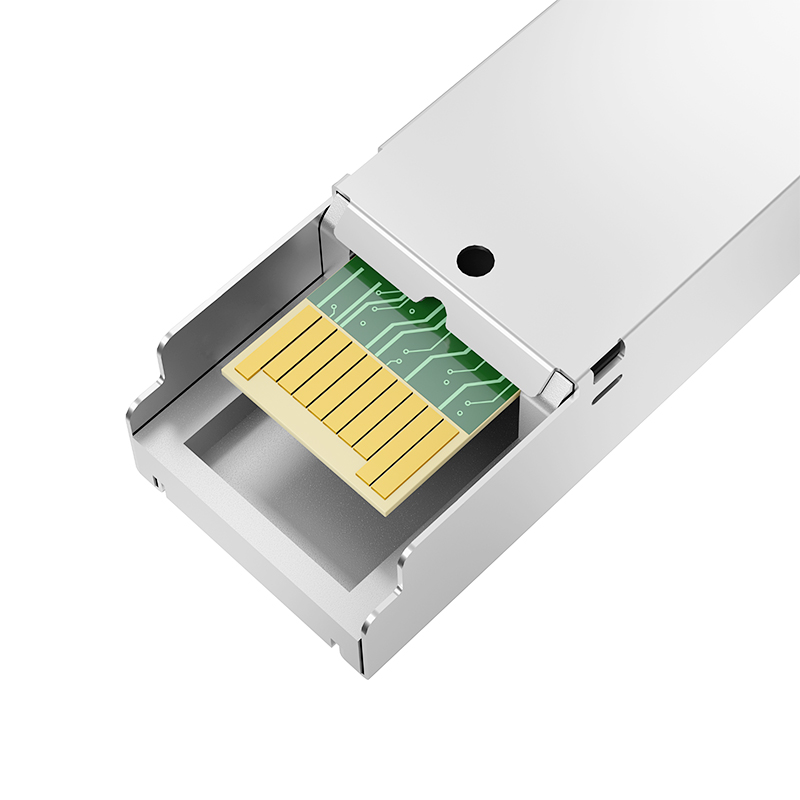

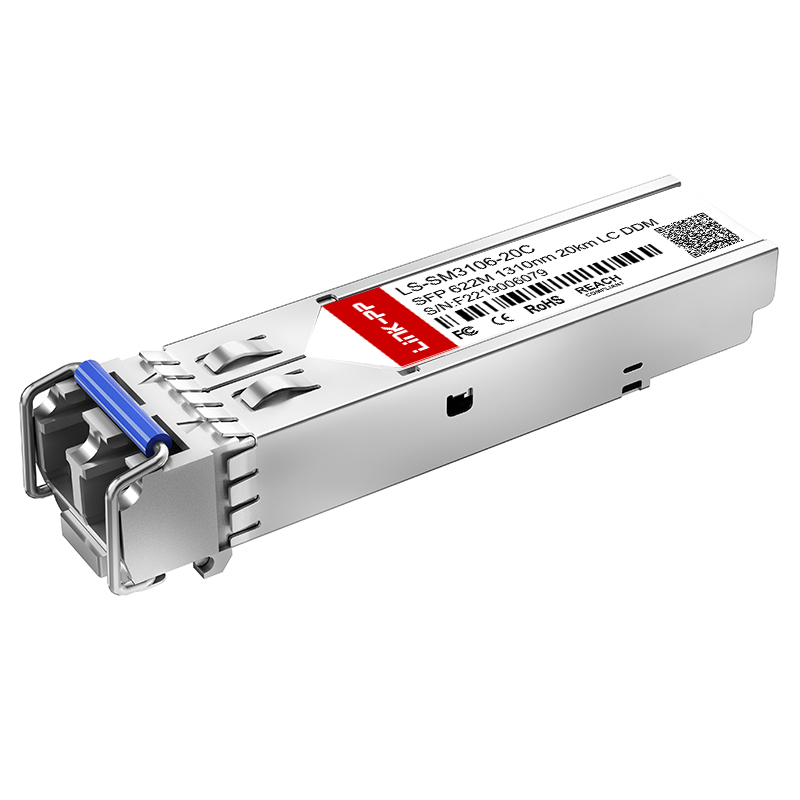

| Part No. | LS-SM3106-20C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Providing a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
End-to-end DWDM devices are supported along with a wide range of optical devices - from active modules to passive optical components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
To meet the demands of high-capacity data transmission in modern data centers, a comprehensive series of high-speed optical modules ranging from 10G to 800G provides reliable, high-quality optical interconnection solutions.
High reliability and performance products utilize mature, efficient lasers and mainstream chip solutions. Offerings include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting all the requirements of 4G/5G system scenarios.
Designed for communication network builders globally, complete FTTx optical fiber access solutions cover both all-optical and hybrid optical-copper access products.
To ensure the stable and continuous operation of communication lines, advanced optical cable O&M solutions integrate optical line protection systems (OLP) and optical line monitoring systems (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples for quality evaluation, though standard shipping fees apply.
In-stock items are ready to ship immediately, while standard mass production orders typically require 15 to 30 days.
We provide a standard warranty period along with dedicated 24-hour online technical support.
Yes, we fully support custom OEM and ODM requirements. Please contact our team with your specifications for detailed discussion.
We have over 19 years of professional manufacturing experience, delivering certified network components to top global technology partners.
