Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
1 / 2
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Send Inquiry

Product Description

Product Description

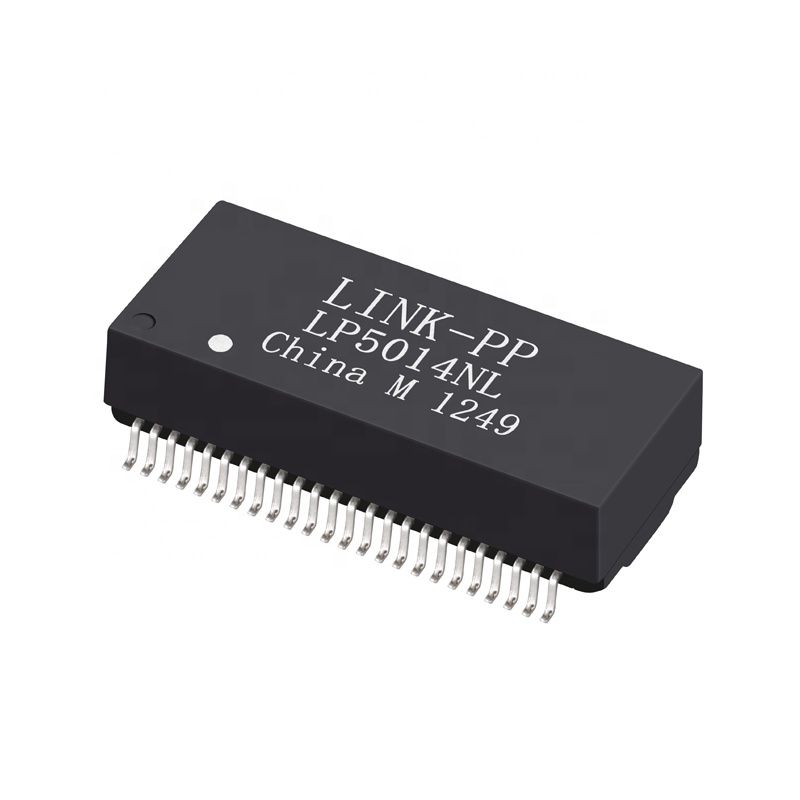

Product Image 1

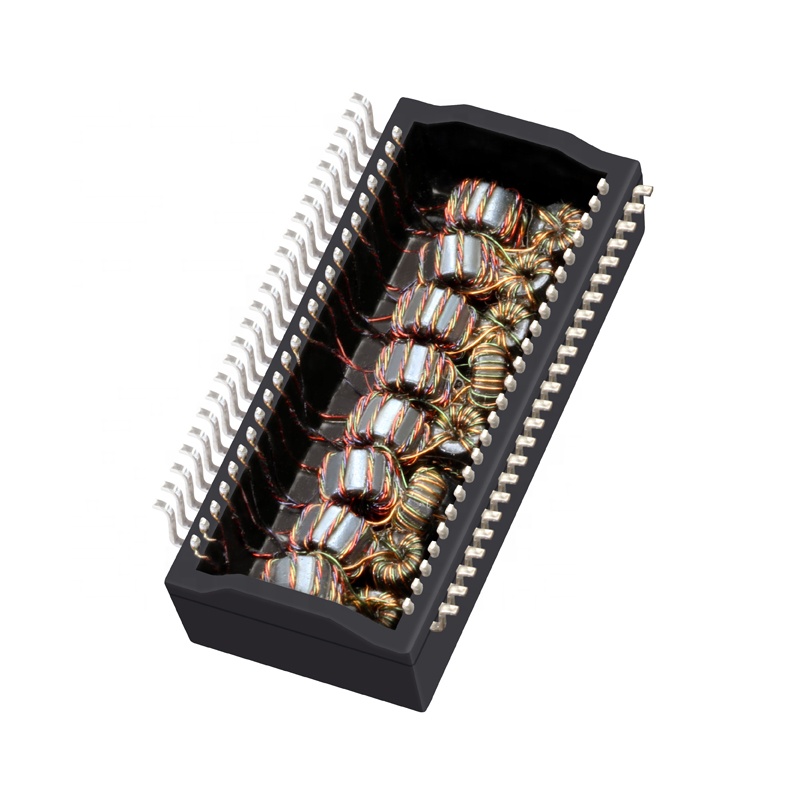

Product Image 2

Specification

Item Value
Place of Origin Guangdong, China
Model Number LP5014NL
Usage Electronic
Phase Single
Coil Structure TOROIDAL
Coil Number AUTOTRANSFORMER
Part Number S558-5999-Q2-F
Part Status Active
Application-Lan Ethernet(NoN PoE)
Number of Ports Dual Port
Speed 10/100/1000 Base-TX
Package Tape & Reel
Cores per Port 16
PIN number 48 PIN
Mounting Type Surface Mount
Temperature 0℃ TO +70℃

Packing & Delivery

Packing Image
N.W / pcs
0.005kg
Package
Reel
SPQ
350pcs
Qty / carton
1400pcs
Carton size
37*37*25cm
G.W / carton
7kg

Frequently Asked Questions (FAQ)

1. What is the application speed supported by the LP5014NL transformer?
This transformer supports Gigabit Ethernet network speeds of 10/100/1000 Base-TX.
2. Does this model support Power over Ethernet (PoE)?
No, the LP5014NL is designed for Ethernet (Non-PoE) applications.
3. What is the mounting configuration and package pin count?
It features a Surface Mount (SMD) mounting type with a 48 PIN configuration.
4. What is the operating temperature range for this component?
The operating temperature range is designed to work reliably from 0℃ to +70℃.
5. How is this product packaged for shipment?
The component is delivered in Tape & Reel packaging. The Standard Package Quantity (SPQ) is 350 pieces per reel, and the export carton contains 1400 pieces.
6. What are the key internal characteristics of this dual-port model?
This component features a toroidal coil structure with an autotransformer configuration, utilizing 16 cores per port.
