Female RJ45 for Internet Modular Plug TIC-L003-11

1 / 5

Female RJ45 for Internet Modular Plug TIC-L003-11

Send Inquiry

Product Description

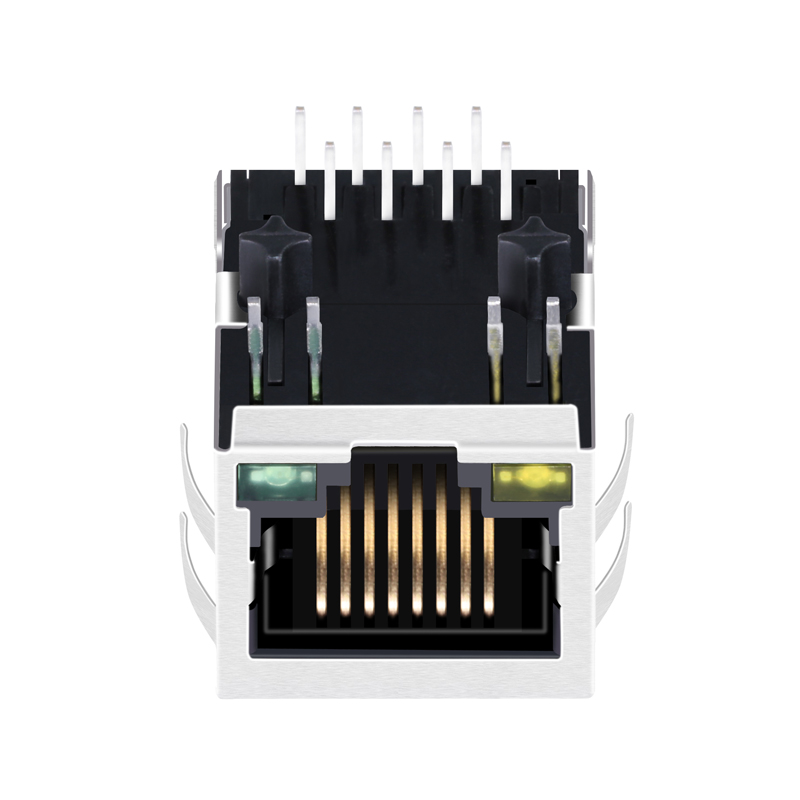

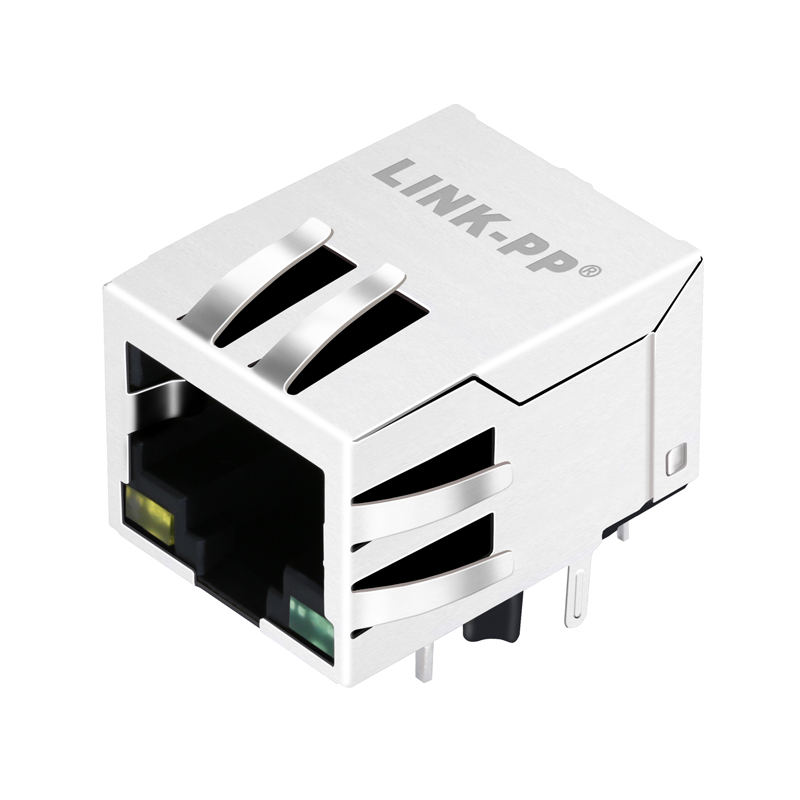

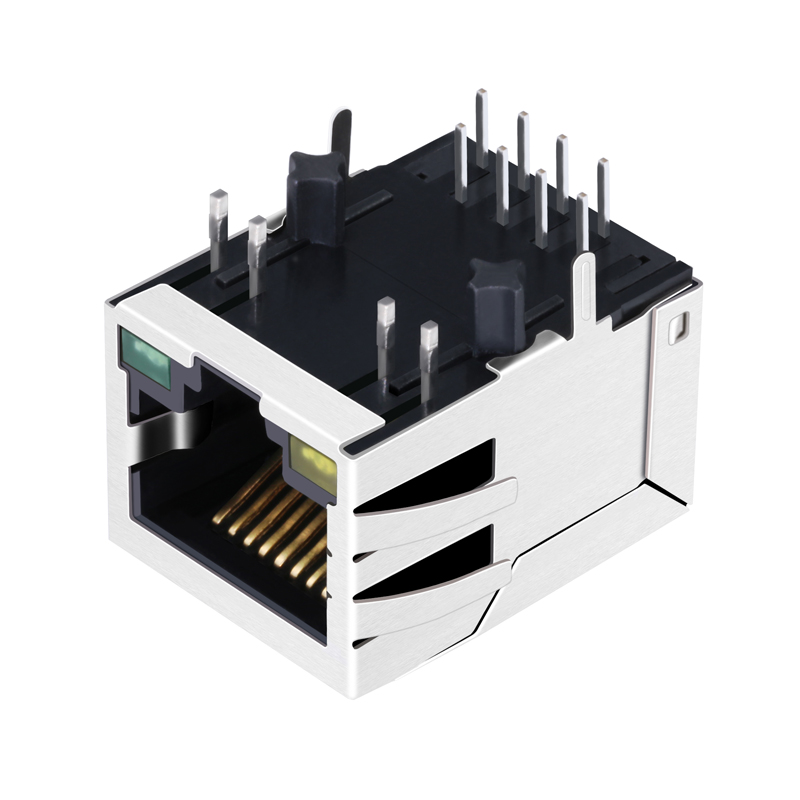

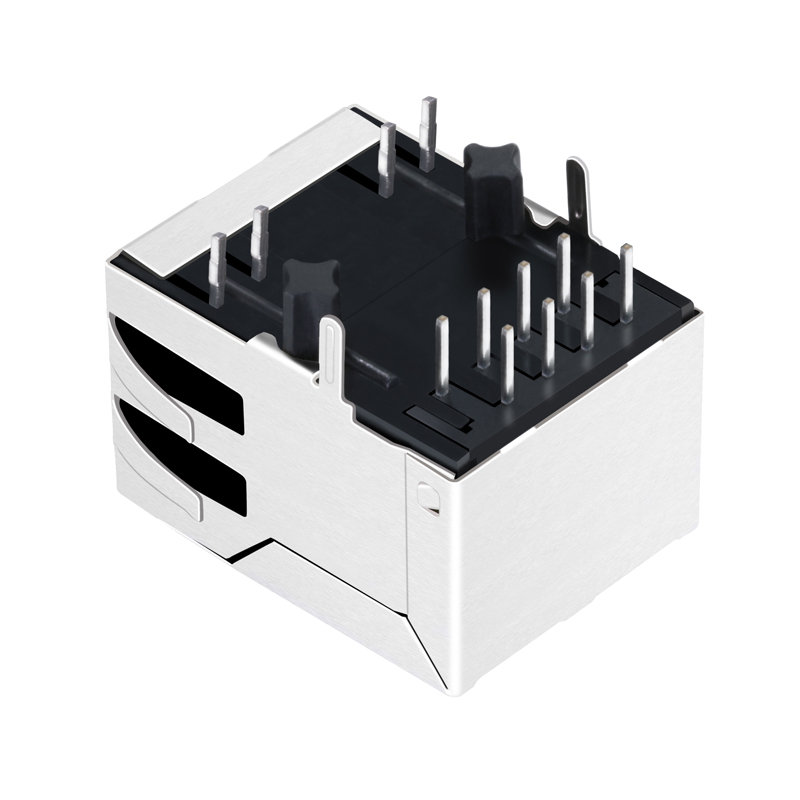

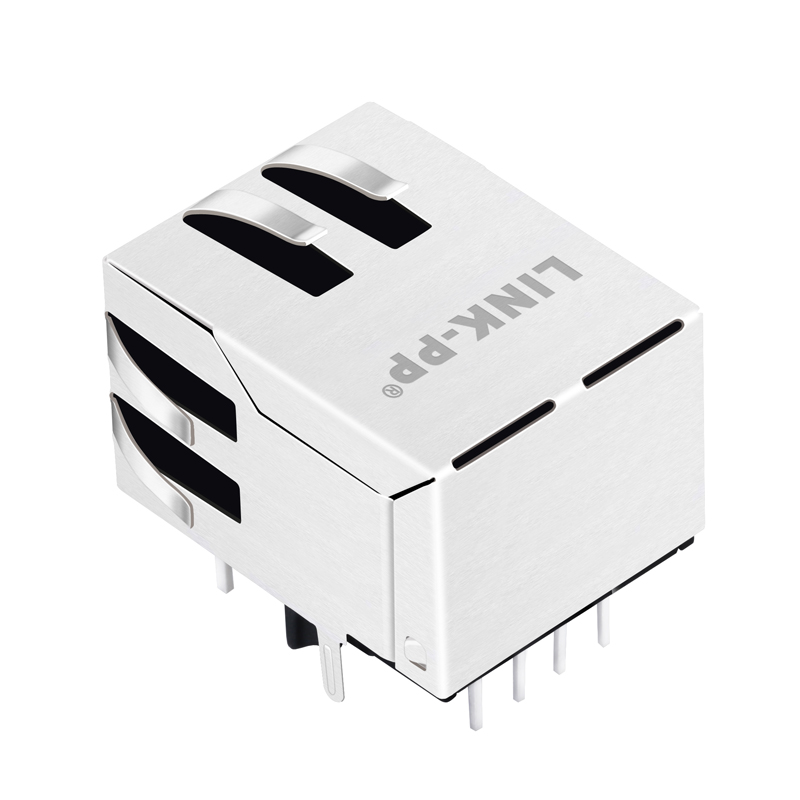

Female RJ45 for Internet Modular Plug TIC-L003-11

Part Number	TIC-L003-11
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WithOUT LEDS
Latch	DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With OR WithOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
Quality Guarantee: 6 Years

Competitive Price And Service

Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements

Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

Frequently Asked Questions

What transmission speeds are supported by the TIC-L003-11 connector?

This connector is specifically engineered to support 10/100 BASE-T network transmission speeds, making it ideal for standard internet modular plug integrations.

Does this model include integrated LEDs?

No, the TIC-L003-11 is designed without LEDs (WithOUT LEDS configuration) for applications that do not require visual status indicators.

What is the operating temperature range for this RJ45 connector?

The connector operates across standard ranges from 0 to 70°C, with extended capability ranging from -40 to 85°C, ensuring reliability in varying environmental conditions.

Is the TIC-L003-11 compliant with international environmental directives?

Yes, it is fully RoHS compliant (RoHS-5 with lead in solder exemption) and aligns with active reach and environmental policies.

What are the PCB mounting specifications for this connector?

It features a side-entry PCB mount angle, T-post retaining mechanism, and standard THT (Through-Hole Technology) solder pins for secure mounting on FR4 board material.

What gold plating options are available for the contact mating area?

The contact mating area features high-quality gold plating, available in thicknesses of 6u", 15u", or 30u" to suit different durability and performance requirements.
