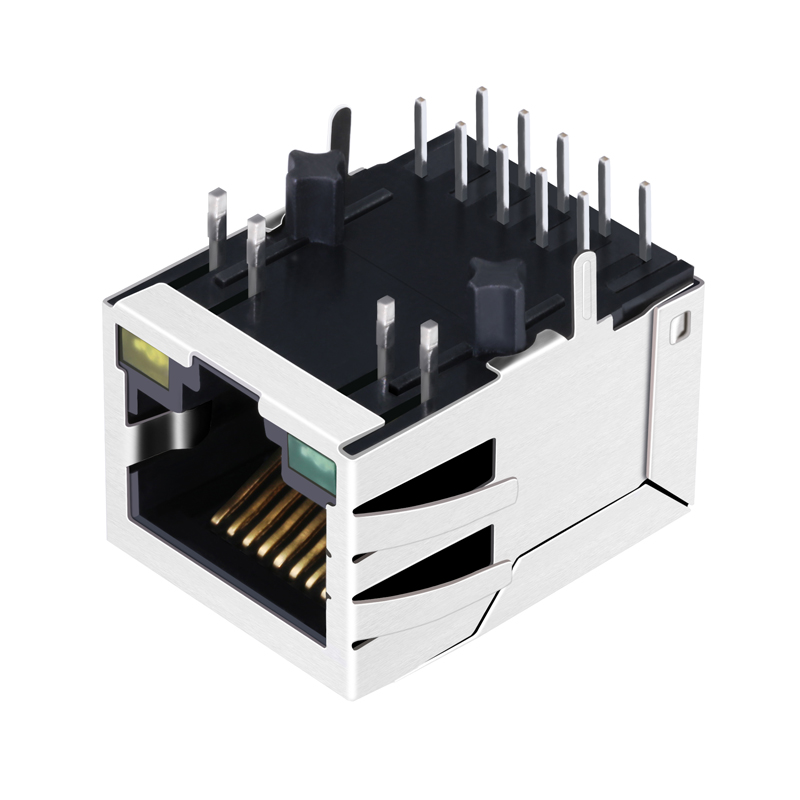

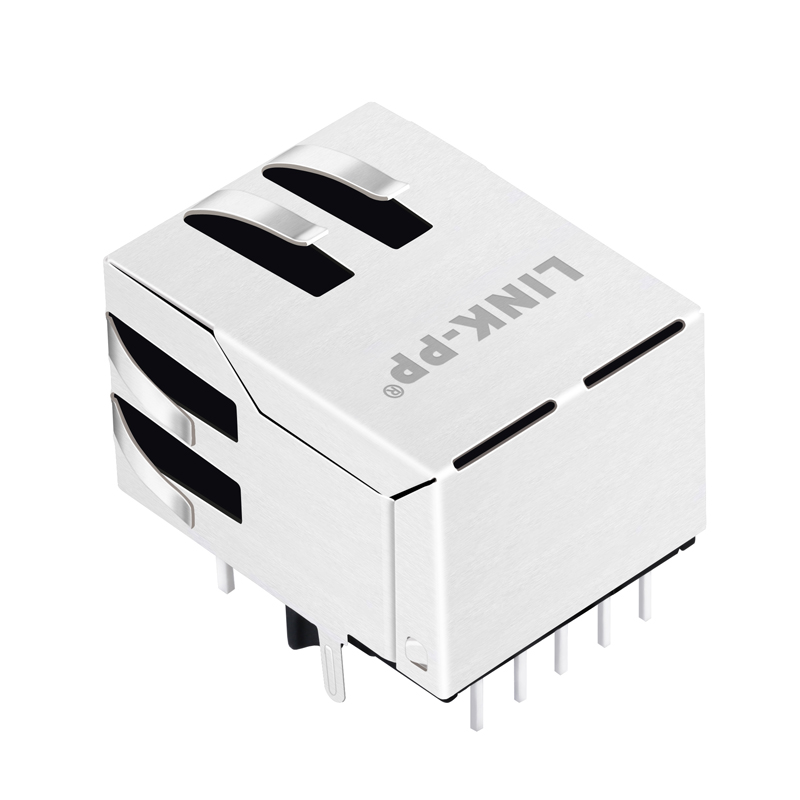

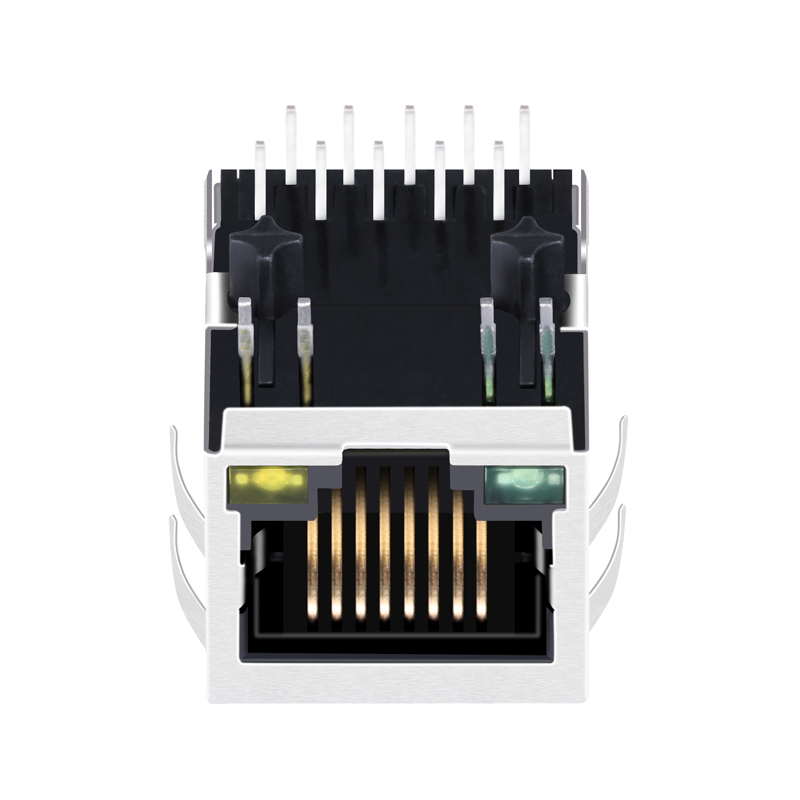

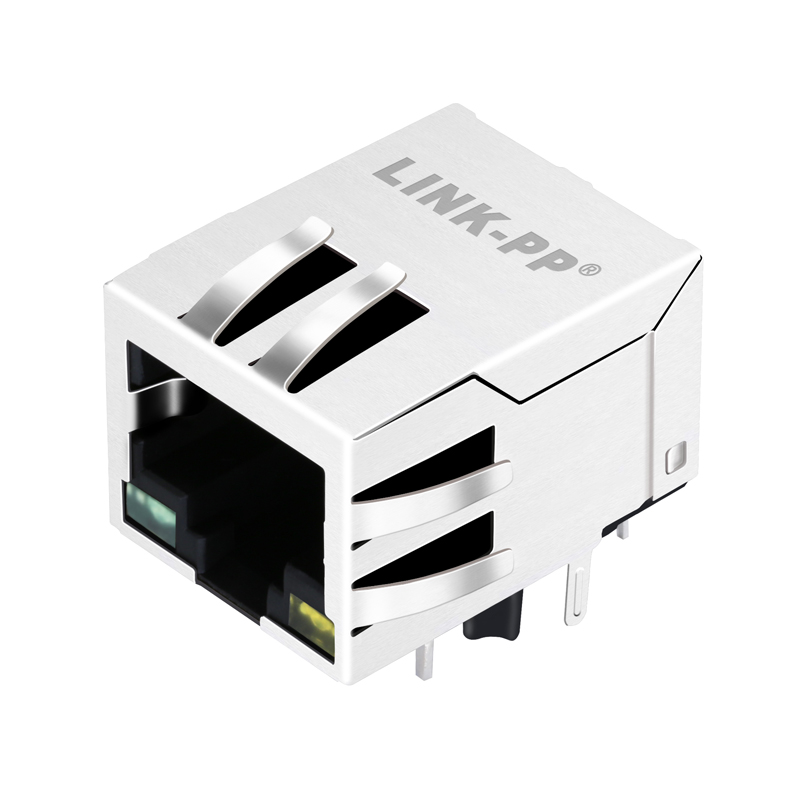

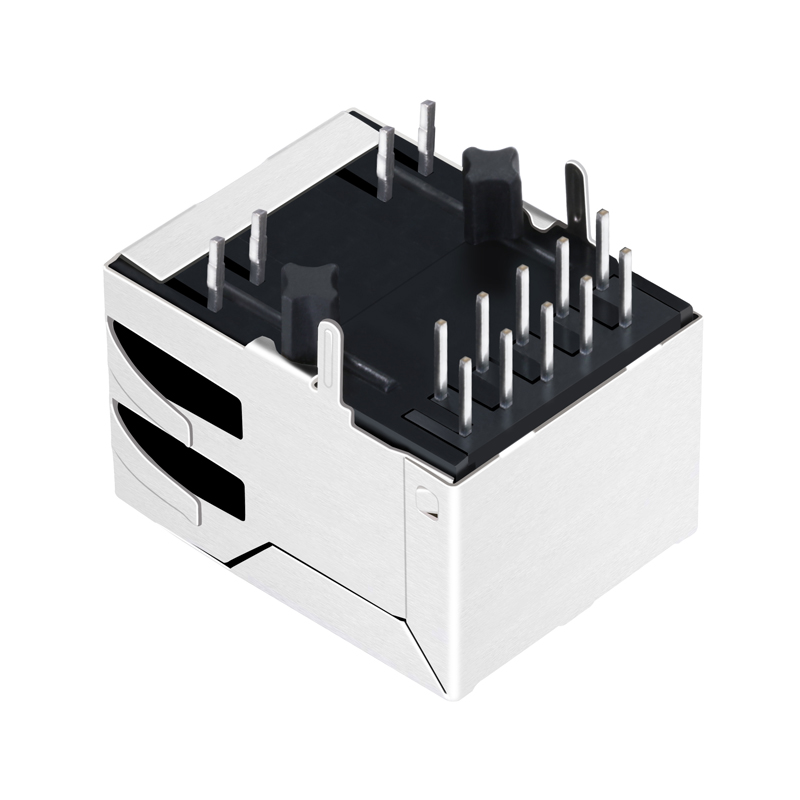

1. What are the key features of the ARJ11E-MCSS RJ45 Connector?
The ARJ11E-MCSS is a 1x1 port RJ45 Ethernet Jack supporting 1000 BASE-T speeds. It features Power over Ethernet (POE) compatibility, a Side Entry PCB mount angle, THT solder pin type, and is RoHS compliant with lead-in solder exemptions.
2. What are the operating temperature options for this Ethernet jack?
This connector supports standard commercial temperature range from 0 to 70°C, as well as an industrial temperature range from -40 to 85°C, making it suitable for various working environments.
3. What plating options are available for the contact mating area?
The contact mating area plating options include Gold finishes in thicknesses of 6u", 15u", 30u", or 50u" to ensure optimal conductivity and prevent corrosion.
4. Does this RJ45 connector include integrated LED lights?
Yes, it comes with a Green/Red LED option configuration to provide visual network activity indicators.
5. Are free product samples available for test evaluation?
Yes, free samples are available for quality evaluation and testing. Additionally, custom designs can be provided based on your specific requirements.
6. What is the average delivery time and shipping policy?
The typical delivery time is 2-3 weeks after order confirmation. We also offer highly discounted shipping options, saving up to 90% of the cost via DHL, UPS, FEDEX, or TNT.
