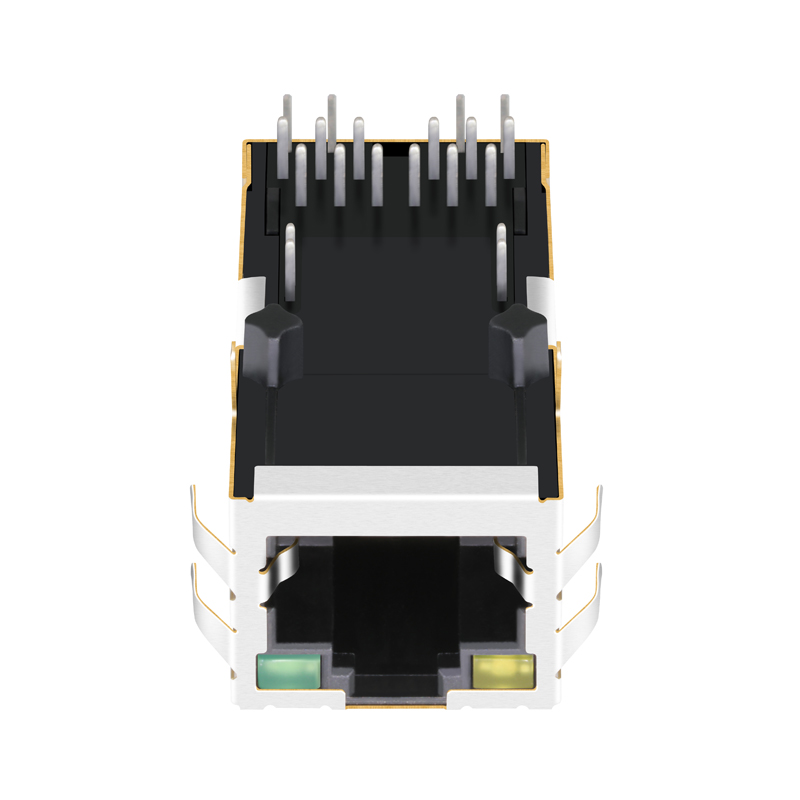

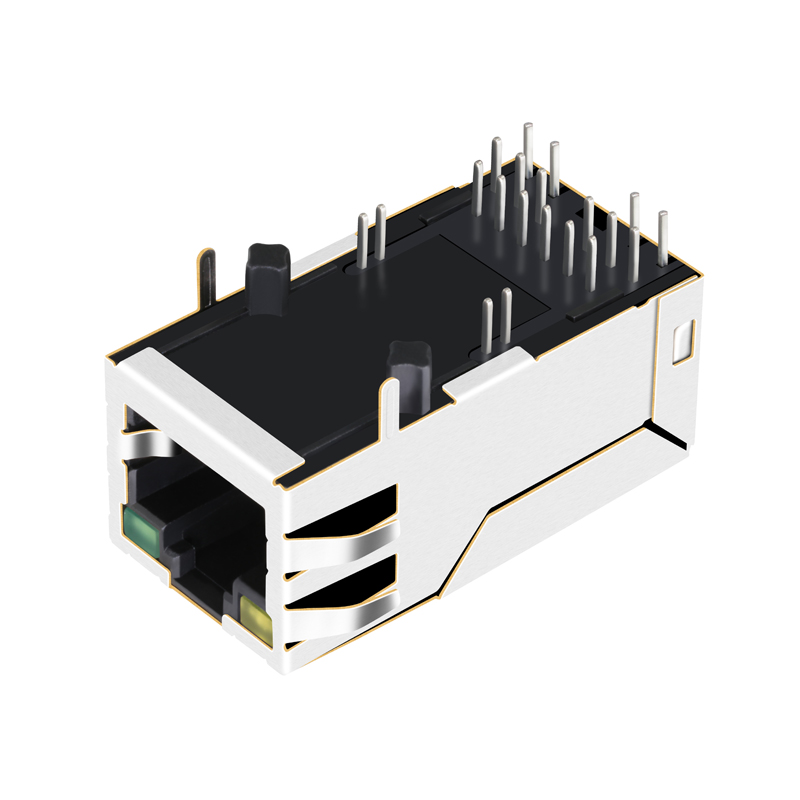

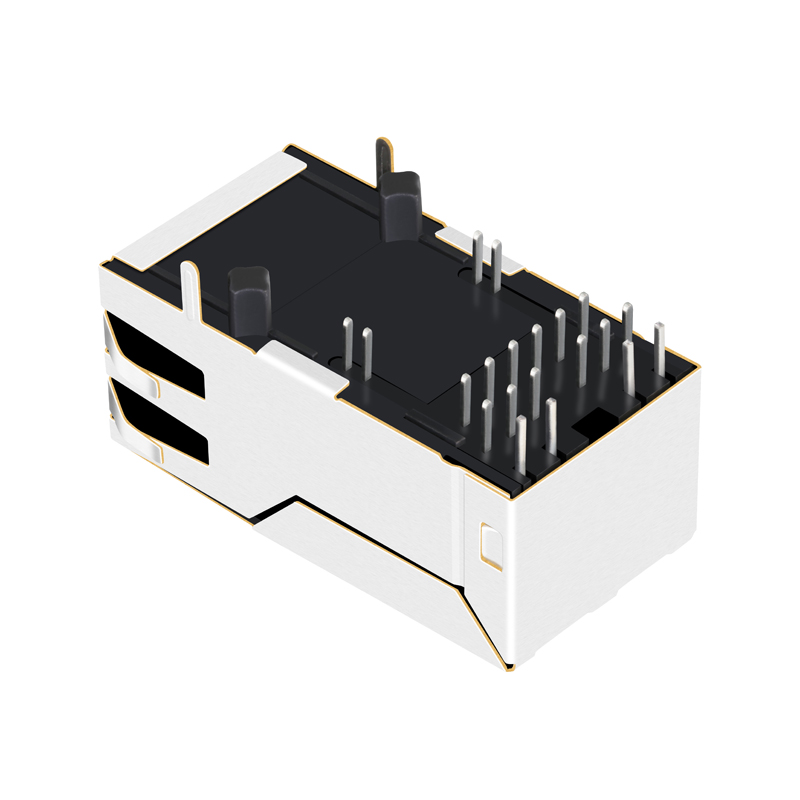

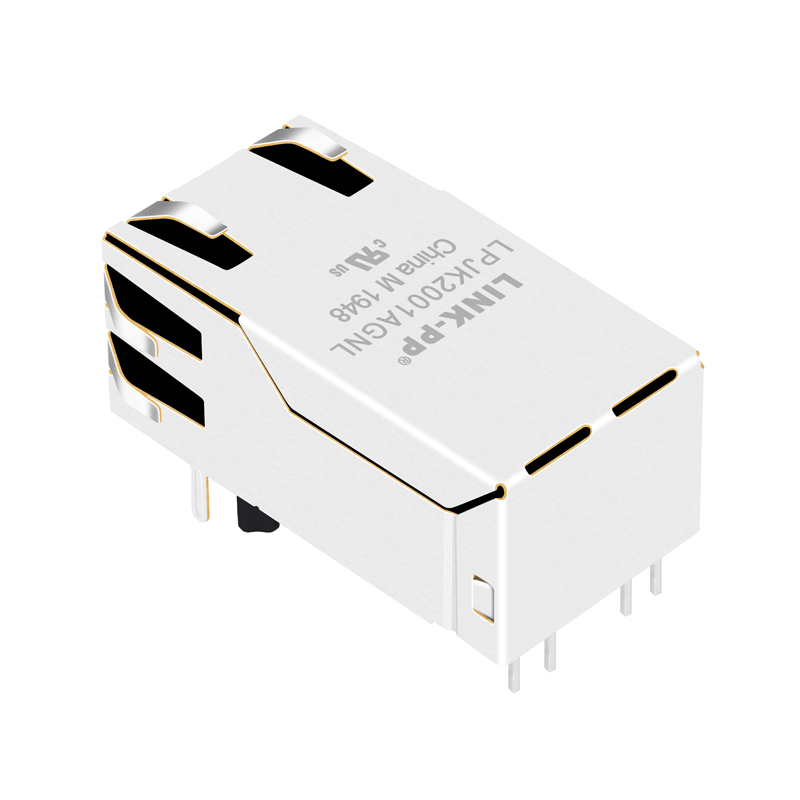

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
1 / 5
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
Product Categories Overview
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR851140A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

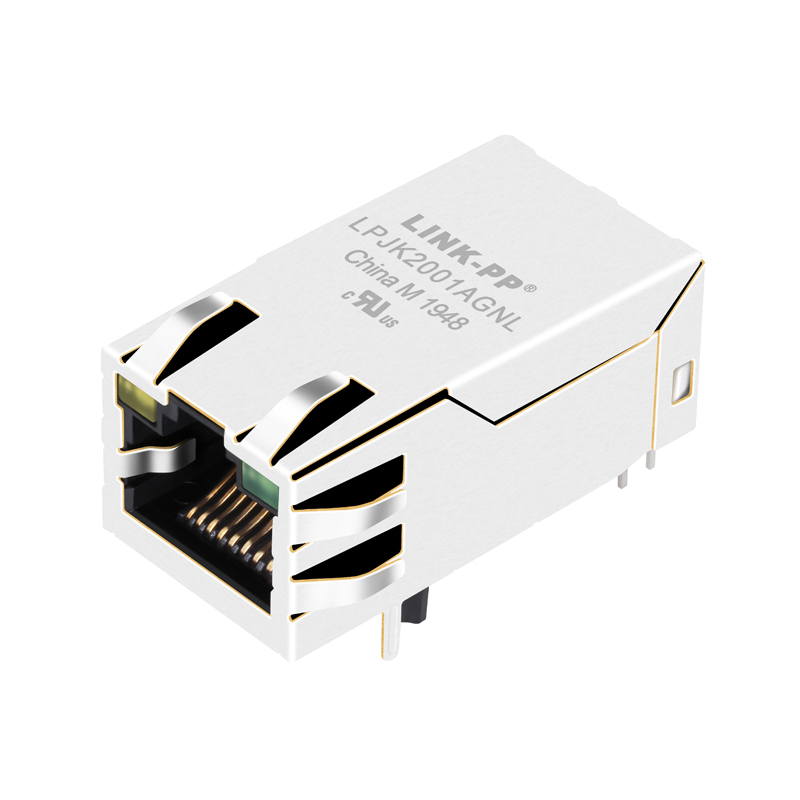

Product Showcase View 1
Product Showcase View 2
Detail View 1
Detail View 2
Detail View 3
Detail View 4
See Below Products For More Options
Product Options Grid
Product Banner Detail
Drawing Specs 1
Drawing Specs 2
Drawing Specs 3
Drawing Specs 4
Drawing Specs 5
Drawing Specs 6
Manufacturer Profile
Established in 1997, is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Manufacturing Area 1
Manufacturing Area 2
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3 What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5 Can you accept OEM/ODM order?
Yes, please send an inquiry to us so that we can have a detailed discussion.
6 What is your advantage?
Over 19 years of production experience and long-term partnerships with leading global technology enterprise partners.
