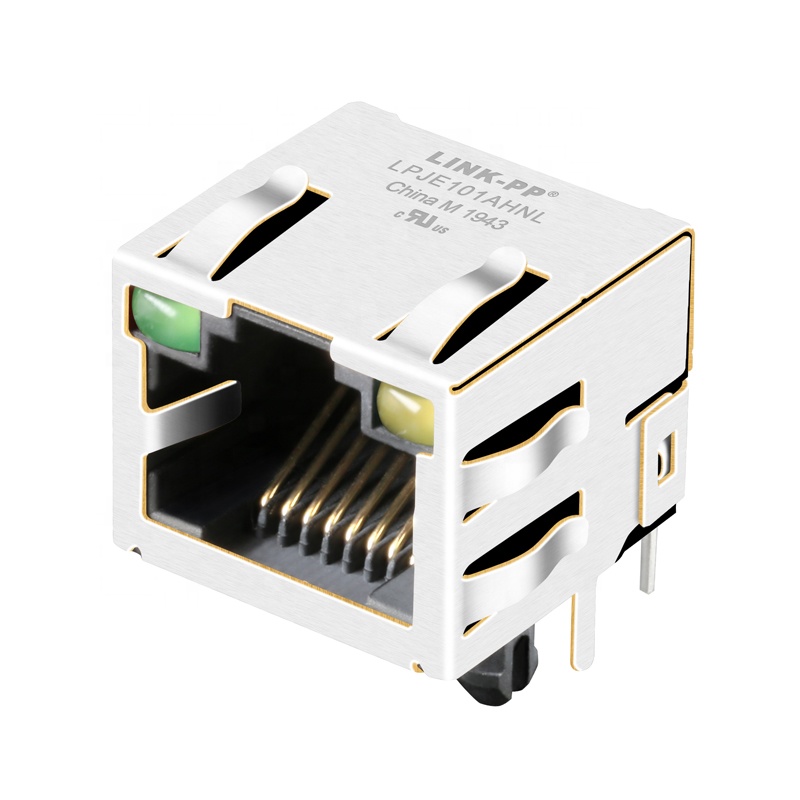

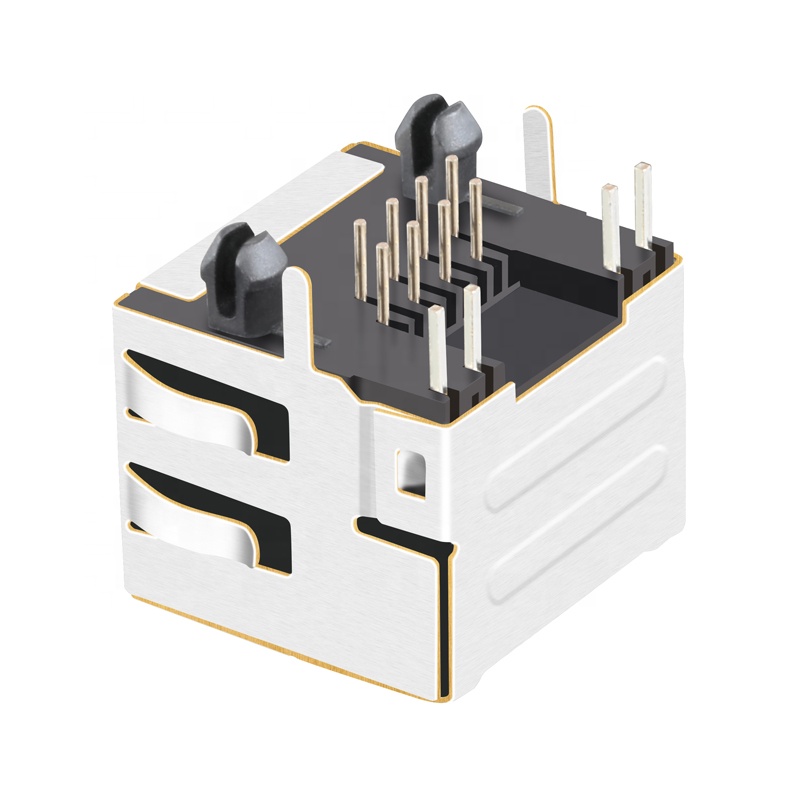

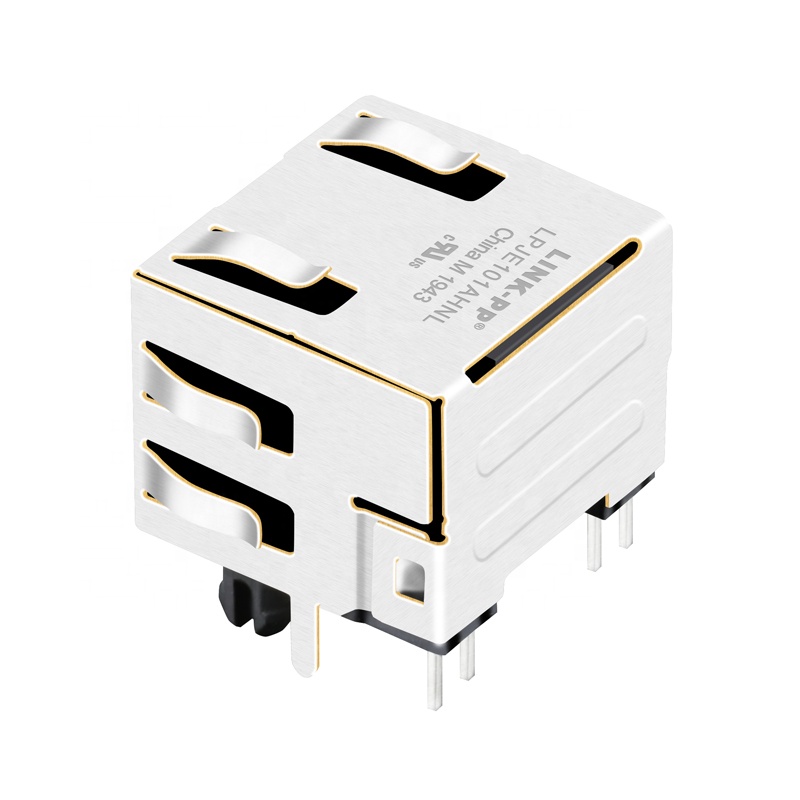

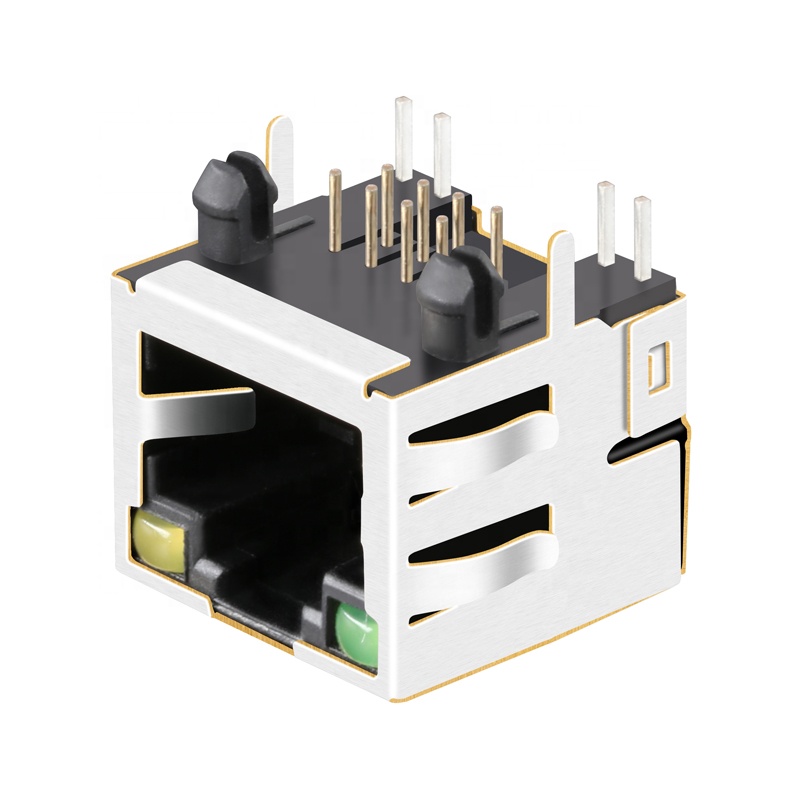

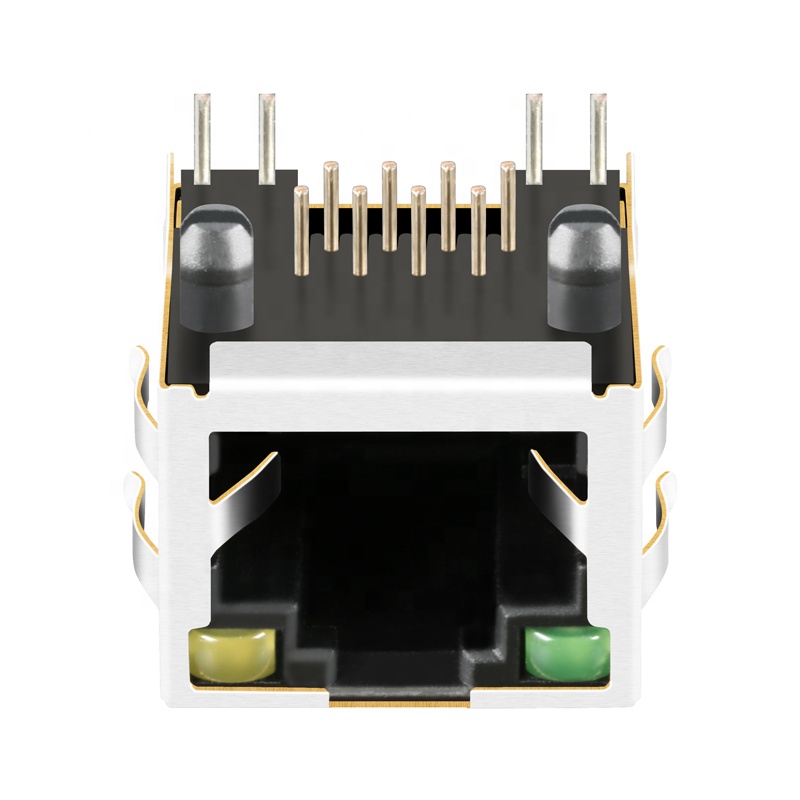

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
| Equivalent Part Number |
1116173-4 |
| Standard Part Number |
LPJE101AHNL |
| Application-LAN |
ETHERNET(NON POE) |
| AutoMDIX |
YES |
| Package Height (Inches/mm) |
0.516/13.10 |
| Package Length (Inches/mm) |
0.620/15.75 |
| Package Width (Inches/mm) |
0.640/16.26 |
| Configuration TX/RX |
T, C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
- |
| Diodes |
No |
| Latch |
Up |
| LED Option |
Green/Yellow LEDS |
| Number of Ports |
1X1 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Speed |
- |
| Temperature |
-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
