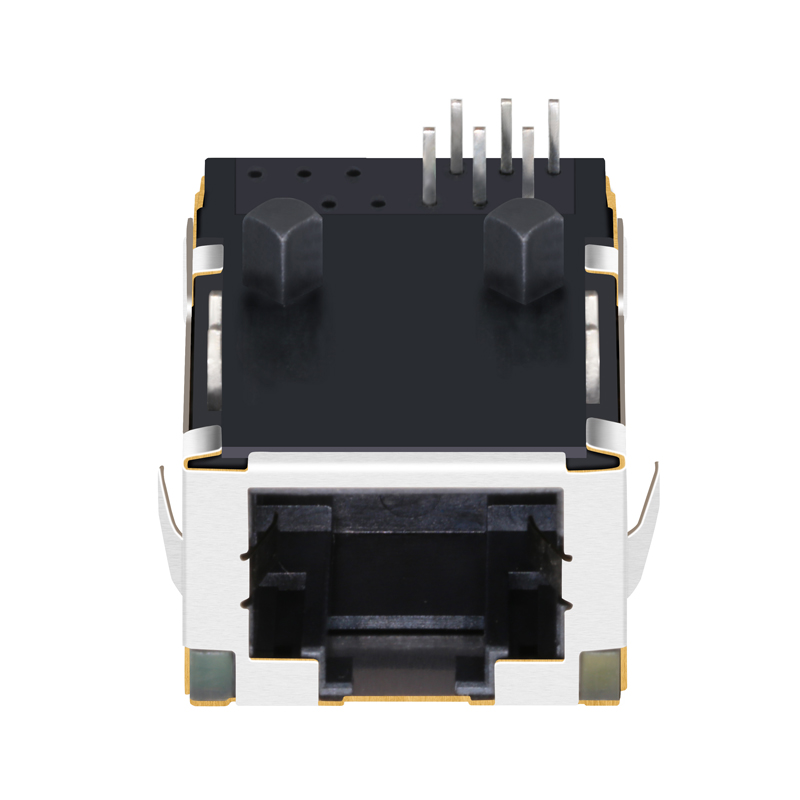

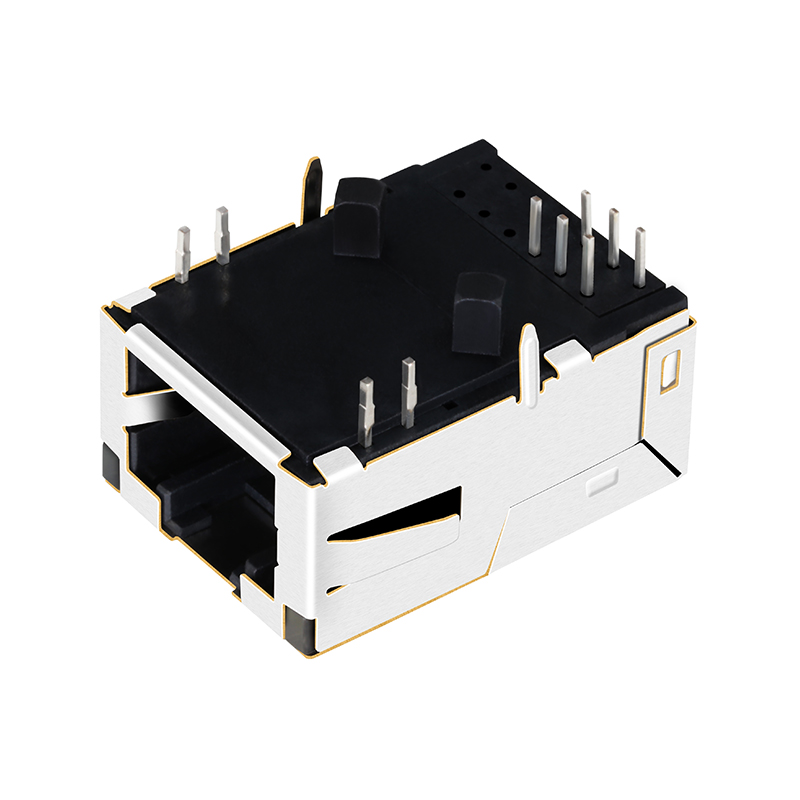

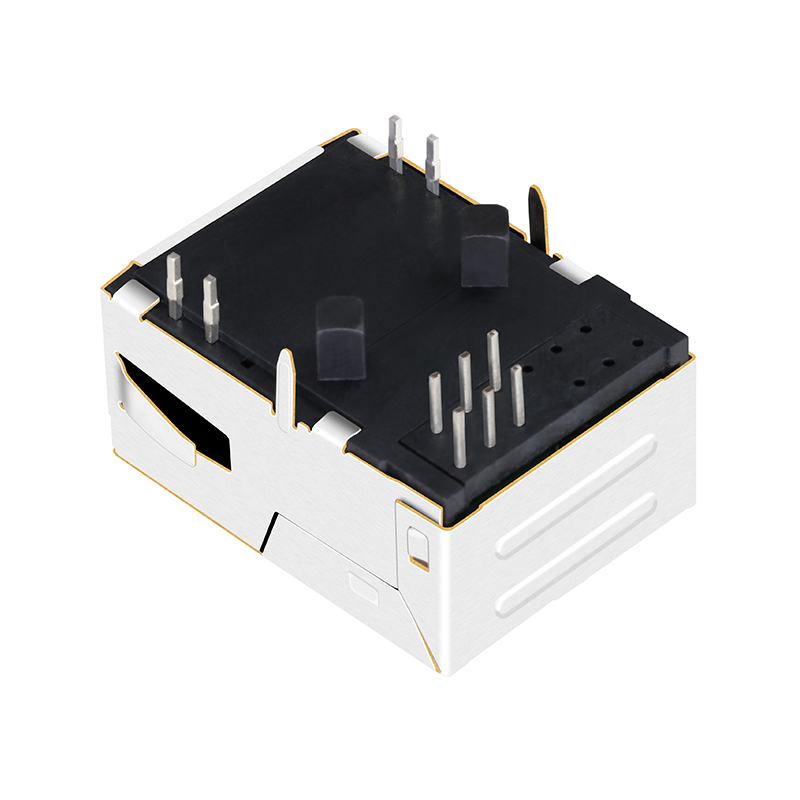

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
1 / 5
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

L829-1D1T-91 Tab up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led

Send Inquiry

Product Description

Ethernet RJ45 Jack Connector
L829-1D1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Low Profile RJ45 Jack Connector With Led
Products Description
Item RJ45 Female Connector
Part Number LPJK7001AGNL
Compatible With L829-1D1T-91
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Drawing
Product Categories Overview
Product Structure Details Product Performance Test
Quality Standard Control Connector Dimensions Info
Service Information Grid Packaging Presentation Storage and Delivery
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
A global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Environment Production Equipment Line Product Quality Center
FAQ
Q Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
Q What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
19 years of professional production experience and partnership with global industry leaders for many years.
