Product Description

Magnetic RJ45 Sockets and Transceivers

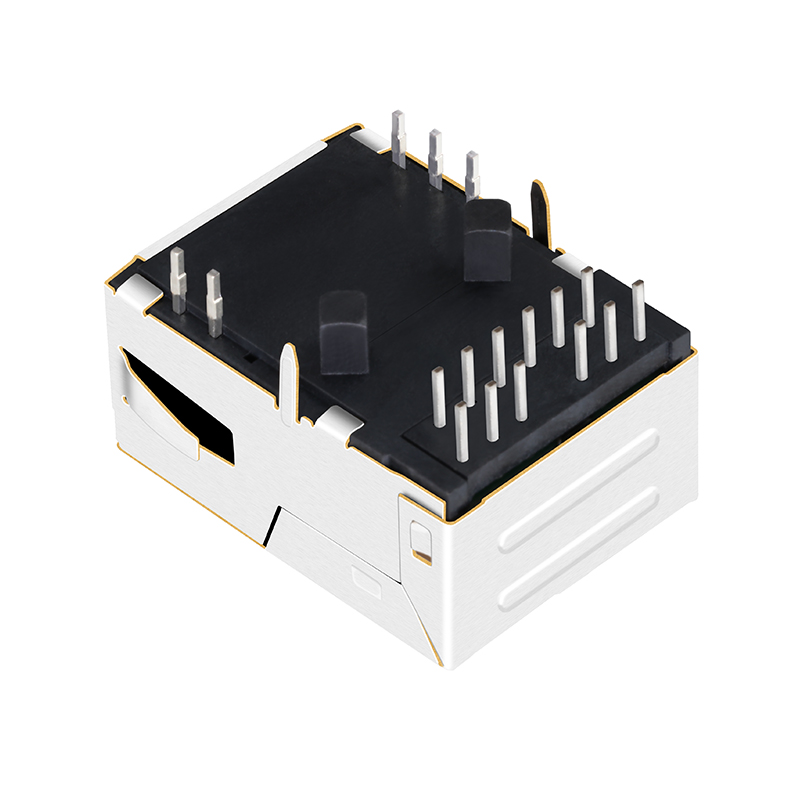

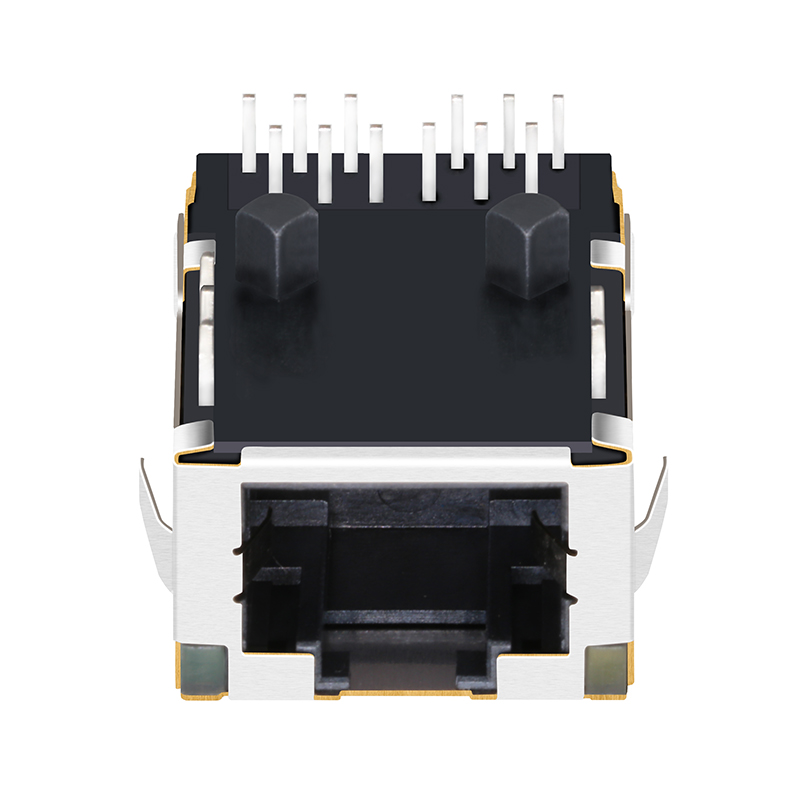

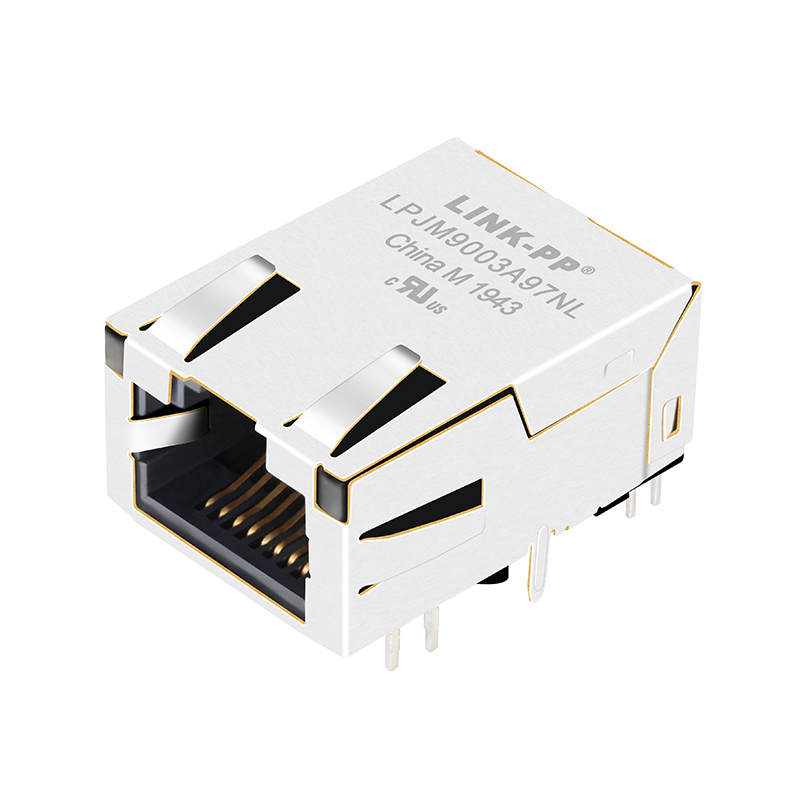

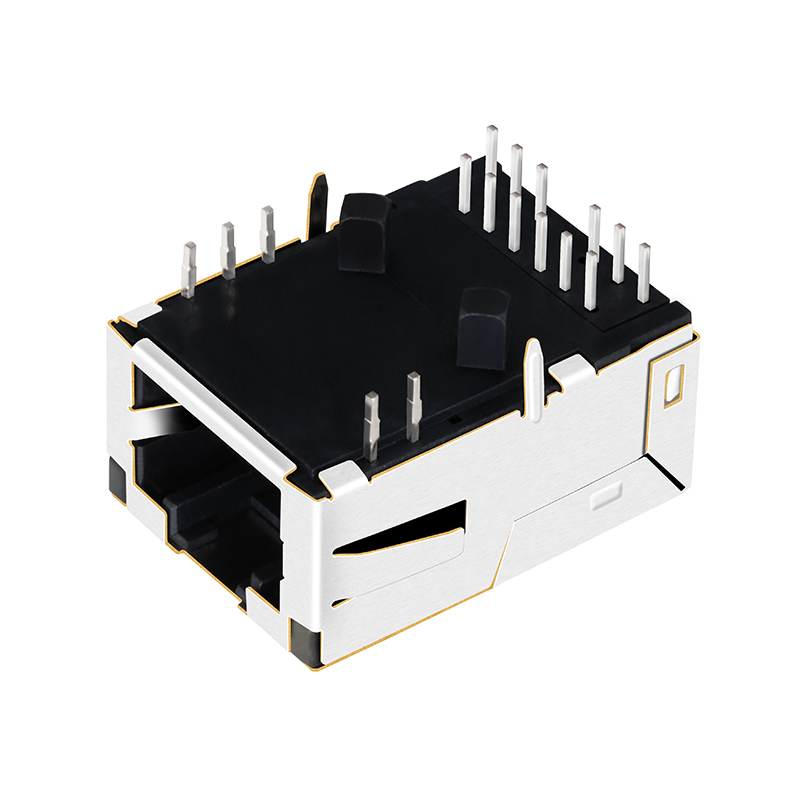

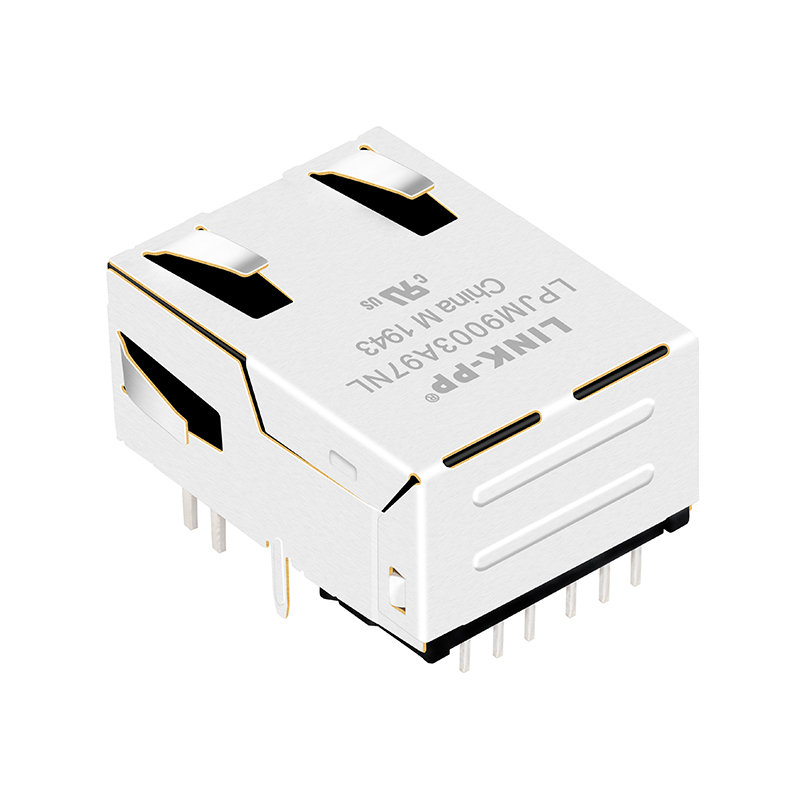

Tab Up Low Profile Magnetic RJ 45 Socket Shielded 1 Port 10G Female RJ45 Jack
Products Description
Item RJ45 Female Connector
Part Number LPJM9003A97NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Engineering Structure
Product Categorization Matrix
RJ45 Schematic Design
Component Diagram Layout
PCB Footprint Dimensions
Quality Testing Protocol
Manufacturing Assembly Flow
Technical Specifications Details
FAQ
? Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
? Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs are to be covered by the customer.
? What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes between 15 to 30 days.
? What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
? Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion of your requirements.
? What is your advantage?
We bring 19 years of dedicated production experience to deliver industry-leading reliability and standard-compliant manufacturing quality.
