100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
1 / 5
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector
100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

100/1000/2.5G/5G/10G Base-T Shielded 10p8c 8p8c Right Angle Low Profile PCB Integrated Magnetics Network RJ45 Female Connector

Send Inquiry

Product Description

Specification & Characteristics

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores

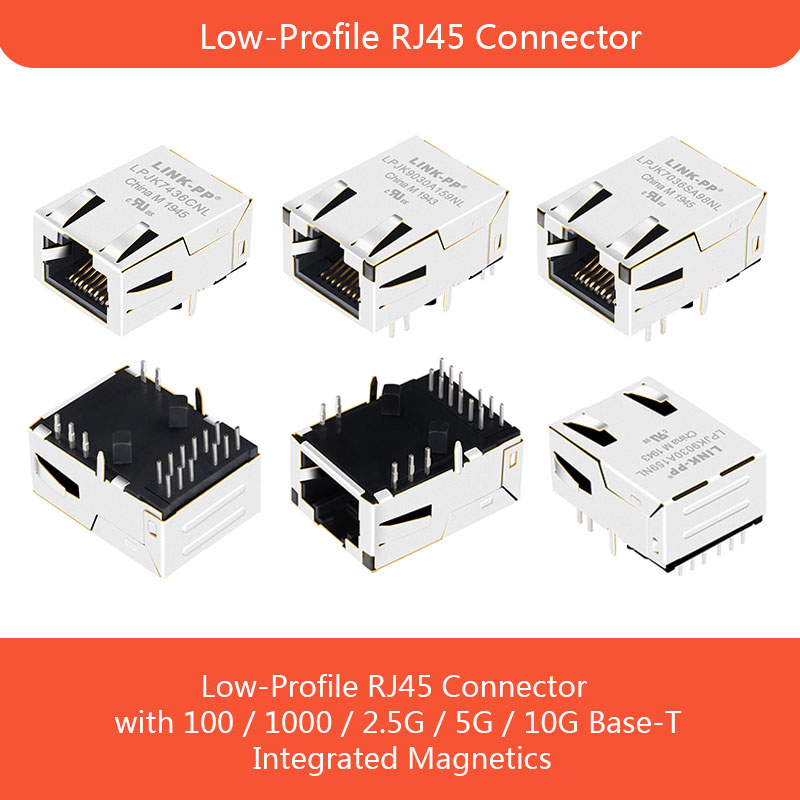

RJ45 Connector Specification

Technical Specifications

Item Value
Model Number Low profile rj45 jack
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Package Type: Tray

Carton Size: 40 * 32 * 33 cm

Gross Weight / Carton: 12.3 kg

Quantity / Carton: 1200 pcs

Standard Packaging Quantity (SPQ): 50 pcs

Net Weight / Piece: 0.01 kg

Packing and Packaging details

Company Profile & Manufacturing

Manufacturing Environment 1
Manufacturing Environment 2
Manufacturing Environment 3
Manufacturing Environment 4
Manufacturing Environment 5
Manufacturing Environment 6
Manufacturing Environment 7

Frequently Asked Questions

1. Who are we?
We are a professional manufacturer established in 2012, serving global markets including North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), Eastern Asia (3.00%), Mid East (3.00%), Western Europe (2.00%), South Asia (1.00%), Northern Europe (1.00%), and Central America (1.00%).
2. How can we guarantee quality?
We ensure quality by providing a pre-production sample before mass production and conducting a final inspection before shipment.
3. What can you buy from us?
You can buy RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
4. Why should you buy from us not from other suppliers?
We are a specialized manufacturer of RJ45 connectors and LAN transformers for over 19 years. Our products and systems are certificated by SGS, ISO9001:2008, UL, REACH, and CE, supported by large-scale weekly production capacities.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
6. What is the typical operating temperature range for these RJ45 jacks?
The operational temperature range for these connectors spans from 0°C ~ 70°C up to -40°C ~ +85°C depending on the specific model specifications.
