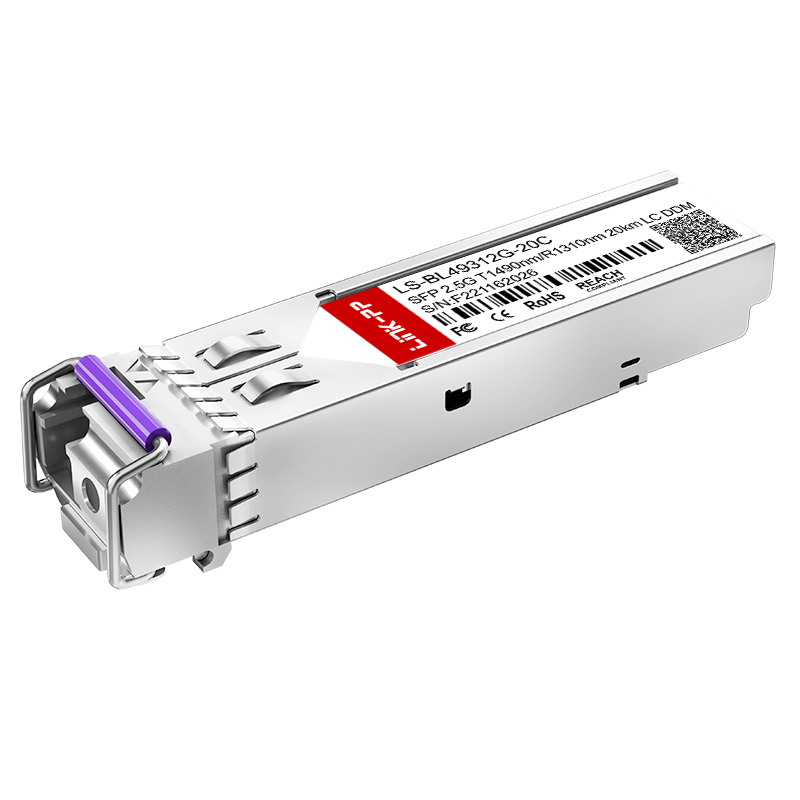

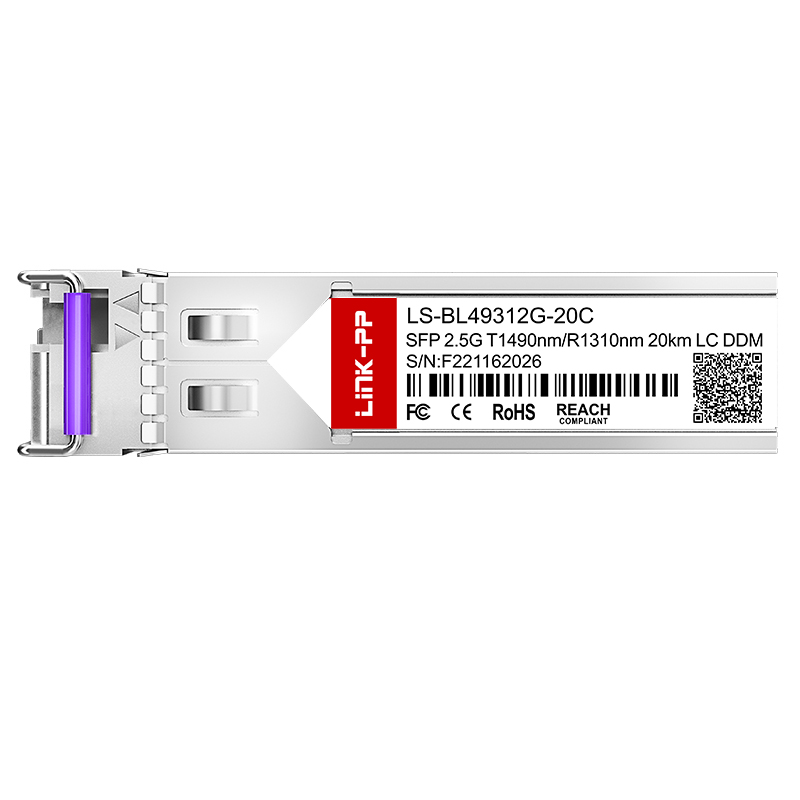

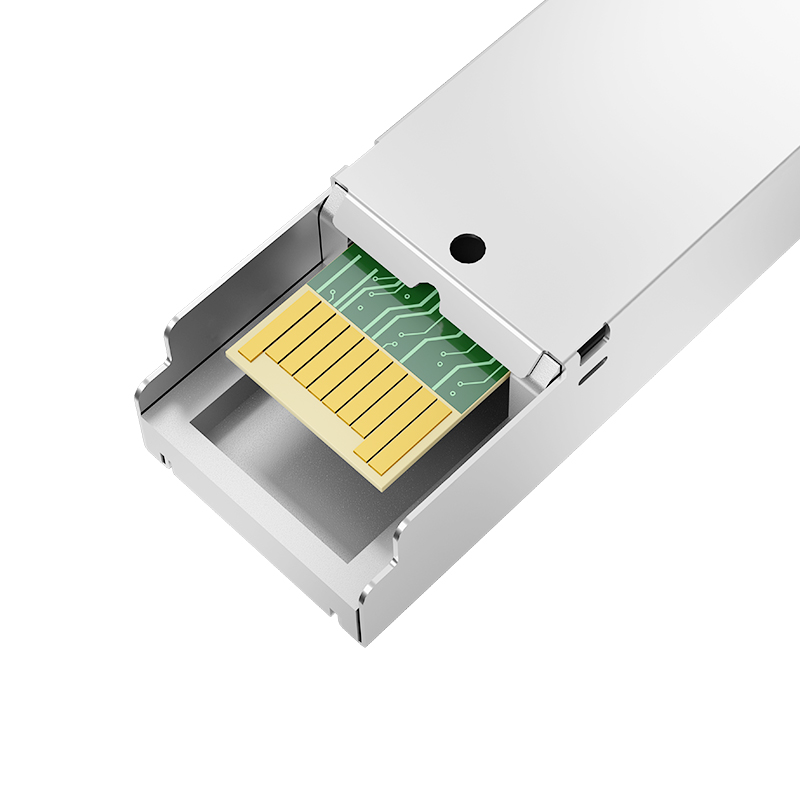

1490nm-TX/1310nm-RX Single Mode SFP 2.5G Bidi 20km Simplex LC Optic Transceiver Module

1 / 5

1490nm-TX/1310nm-RX Single Mode SFP 2.5G Bidi 20km Simplex LC Optic Transceiver Module

Send Inquiry

Product Description

Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1490nm-TX/1310nm-RX
Max Cable Distance	20km
Connector	Simplex LC
Media	SMF
Transmitter Type	DFB
Receiver Type	PIN
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	SFP MSA and SFF-8472
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks is available.

Support 1.25G BiDi SFP

Support 10G/25G BiDi SFP

Application Scenarios

Optical Transport Networks

End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality optical interconnection solutions for data centers.

Wireless

High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, FTTx optical fiber access total solutions cover all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, the optical cable O&M solution integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

FAQ

Q: Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q: Can I get a sample before mass production?

Yes, free samples are available to test the quality, with the shipping fee covered by the customer.

Q: What is the delivery time?

Stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.

Q: What after-sales service do you offer?

We offer a one-year warranty period along with 24-hour online technical support.

Q: Do you accept OEM/ODM orders?

Yes, please send your requirements to us so we can proceed with a detailed discussion.

Q: What is your main advantage?

We have over 19 years of production experience and have partnered with major global enterprises for many years.
