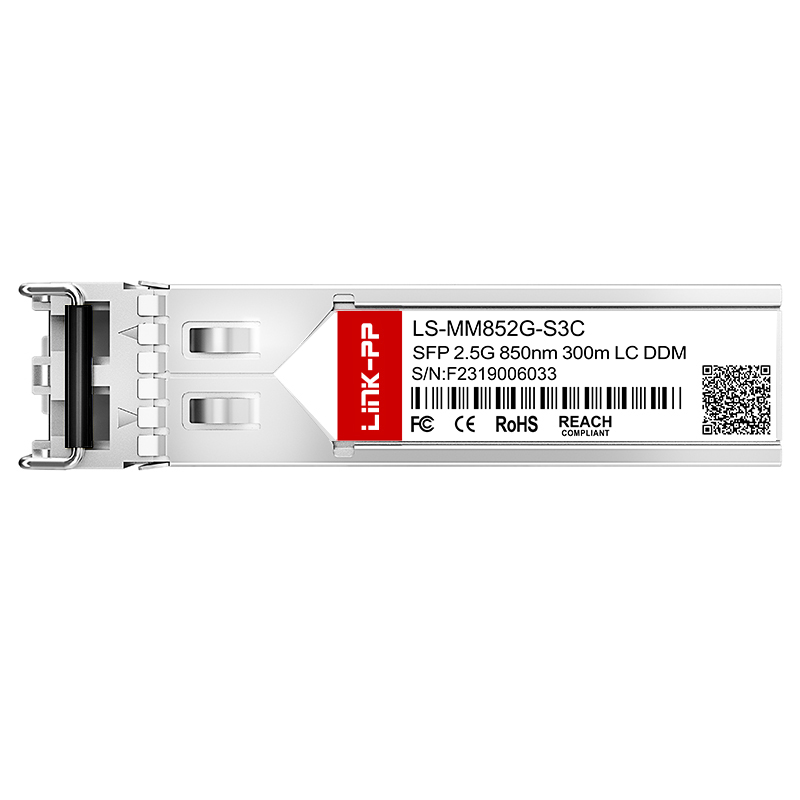

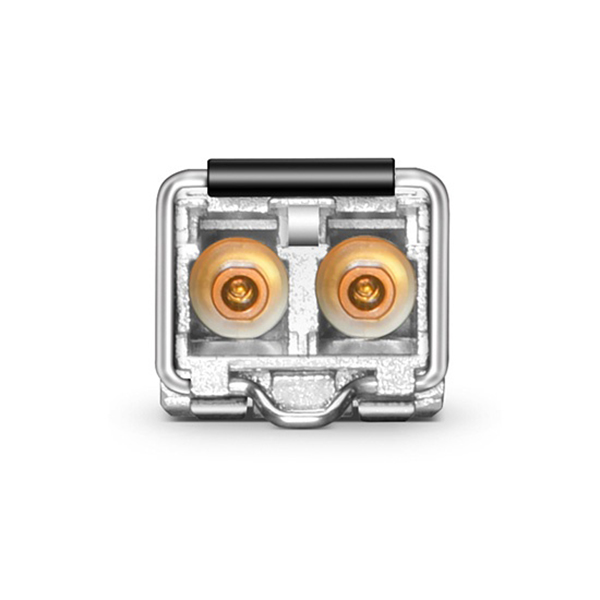

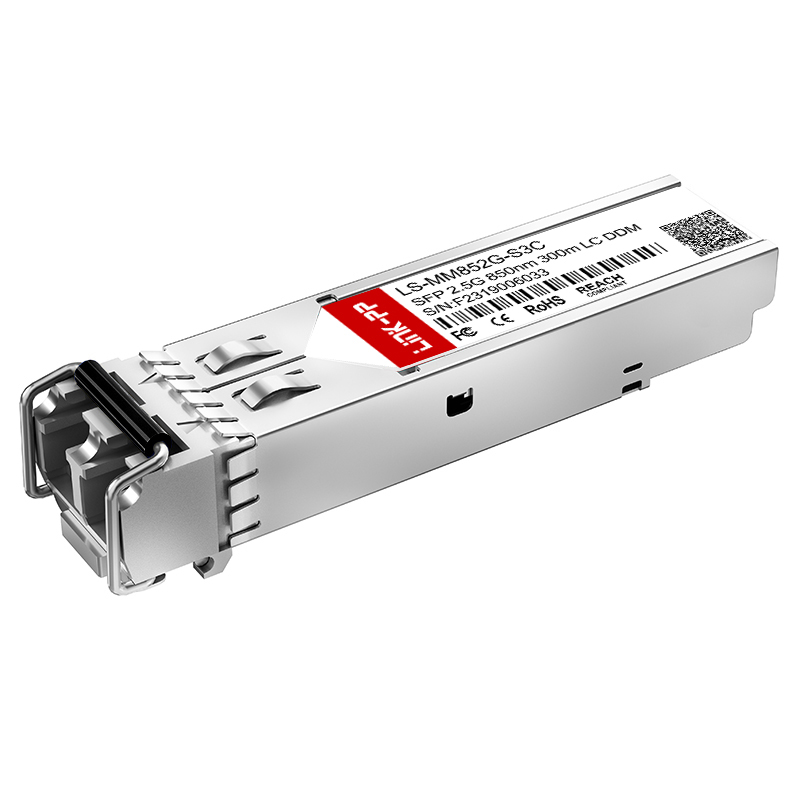

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
1 / 5
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver

Send Inquiry

Product Description

Optical Transceiver Interface
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -10~-3dBm
Receiver Sensitivity <-18dBm
Receiver Overload -3dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range -10 to 70°C (-37 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty 5 Years
Sample Available
Product Specification Diagram

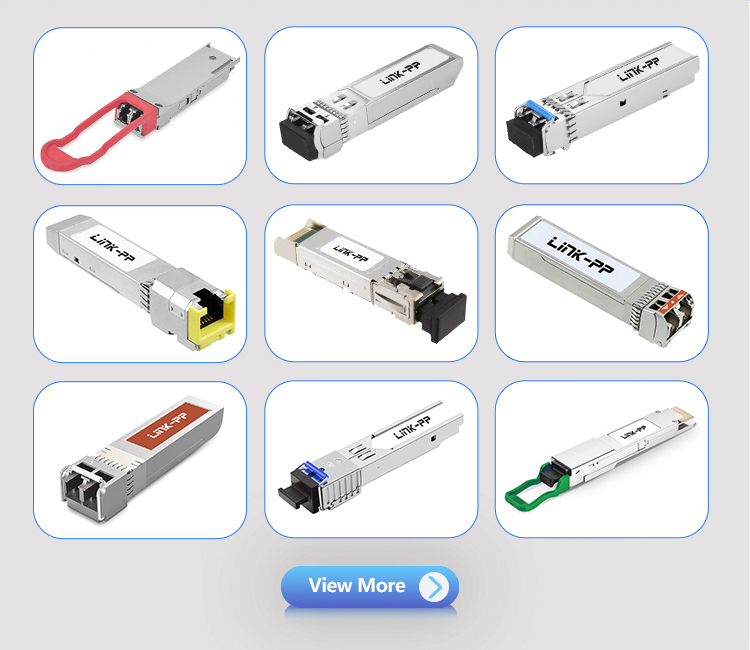

Product Compatibility Showcase
Product Detail View 1
Product Detail View 2
Product Detail View 3
Product Detail View 4
Product Detail View 5
SFP Modules Overview
⚙ Related Products SFP Cage
SFP Cage Option 1
SFP Cage Option 2
Why Choose Us
Quality Assurance 1
Quality Assurance 2
Quality Assurance 3
Quality Assurance 4
Quality Assurance 5
Company Profile
Manufacturing Facility 1
Manufacturing Facility 2
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping fees are to be covered by the customer.
Q3 What is your delivery time?
Items are ready to ship for stock orders, and take 15-30 days for mass production.
Q4 What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q5 Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding your specific requirements.
Q6 What is your advantage?
We bring extensive production experience in the field, coupled with long-term partnerships with leading global enterprises.
