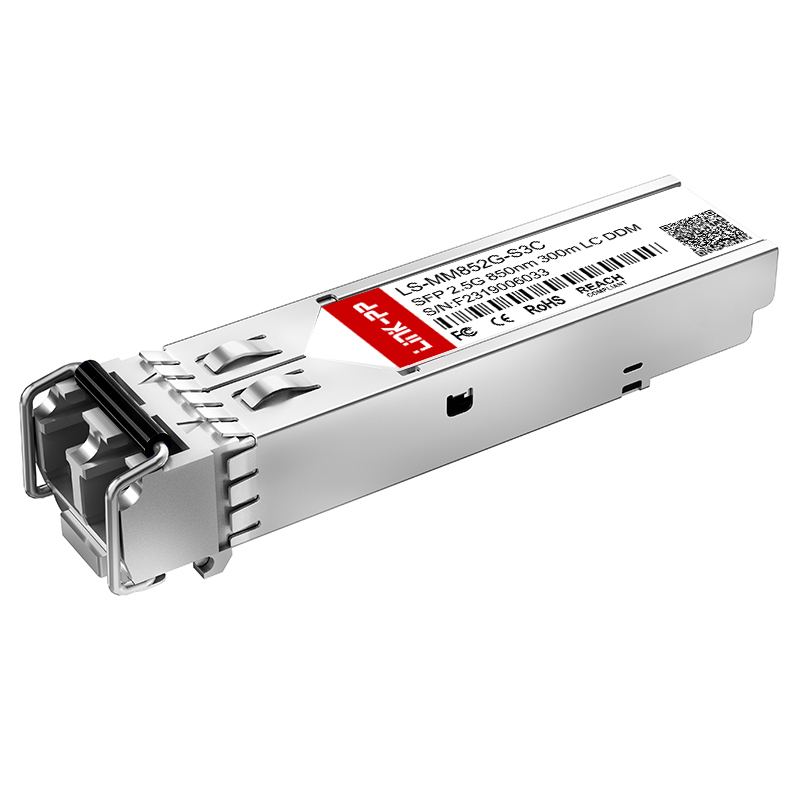

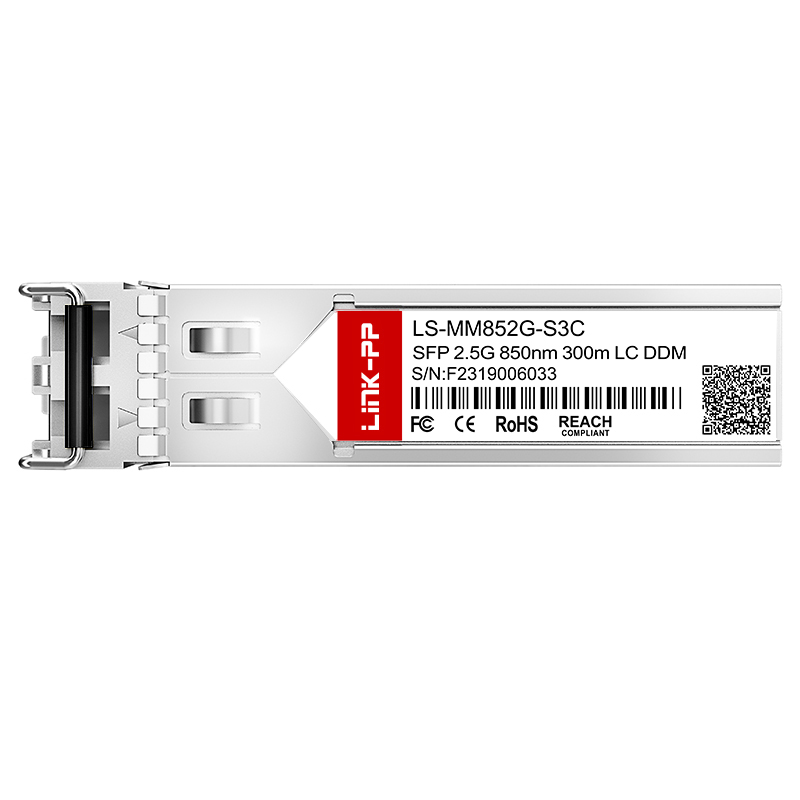

2.5GBASE-SX Multimode 850nm 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module

Product Description

2.5GBASE-SX Multimode 2.5G SFP 300m Duplex LC MMF Optical Transceiver Module
Part No. LS-MM852G-S3C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 850nm
Max Cable Distance 300m
Connector Duplex LC
Media SMF
Transmitter Type VCSEL
Receiver Type PIN
TX Power -10 ~ -3dBm
Receiver Sensitivity < -18dBm
Receiver Overload -3dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Solutions
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes
SFP Interface Diagram
SFP Module Categories
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
SFP Cage Product
Why Choose Us
Quality Management
R&D Capabilities
Manufacturing Center
Global Support
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we have about 2000 employees at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
Facility Overview 1
Facility Overview 2
Frequently Asked Questions
Q1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q3 What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
Q4 What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours a day.
Q5 Can you accept OEM/ODM orders?
Yes, please contact us so that we can have a detailed discussion regarding your custom requirements.
Q6 What is your advantage?
We have 19 years of production experience and have been a trusted partner for major global industry leaders for many years.
