5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
1 / 5
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector
5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

Send Inquiry

Product Description

Product Description

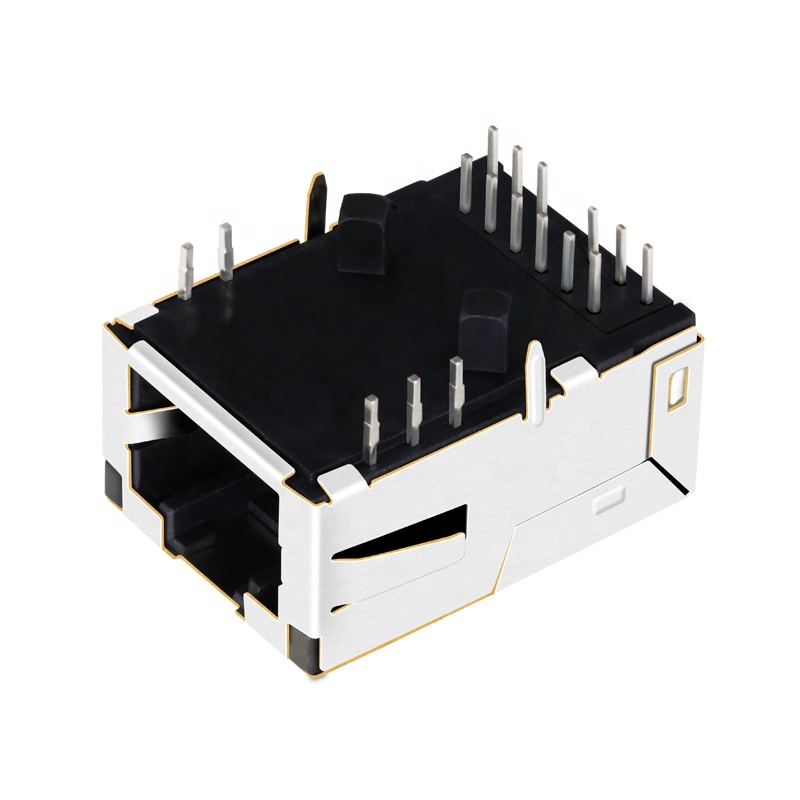

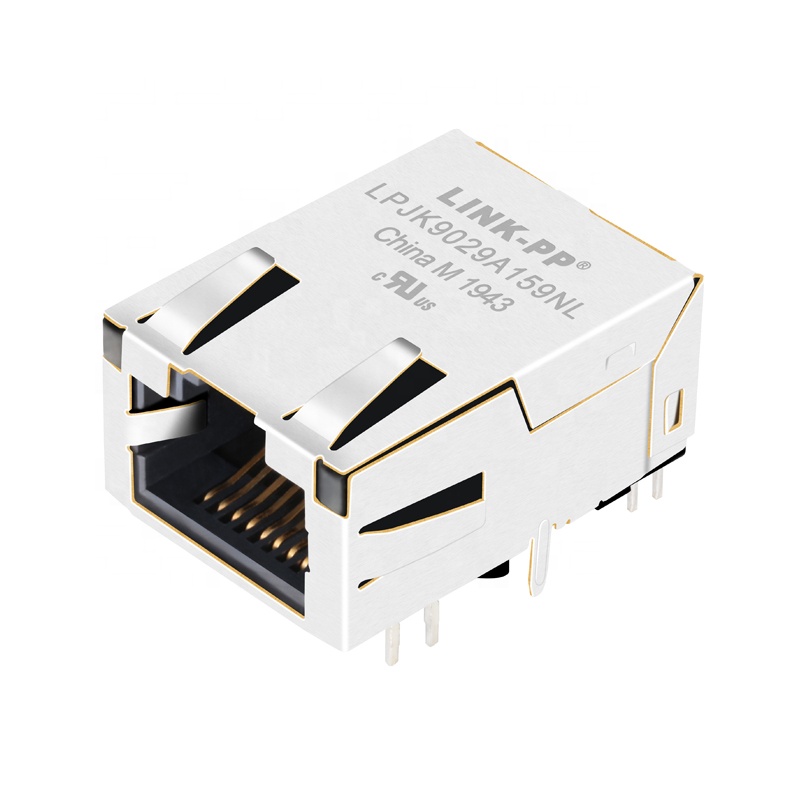

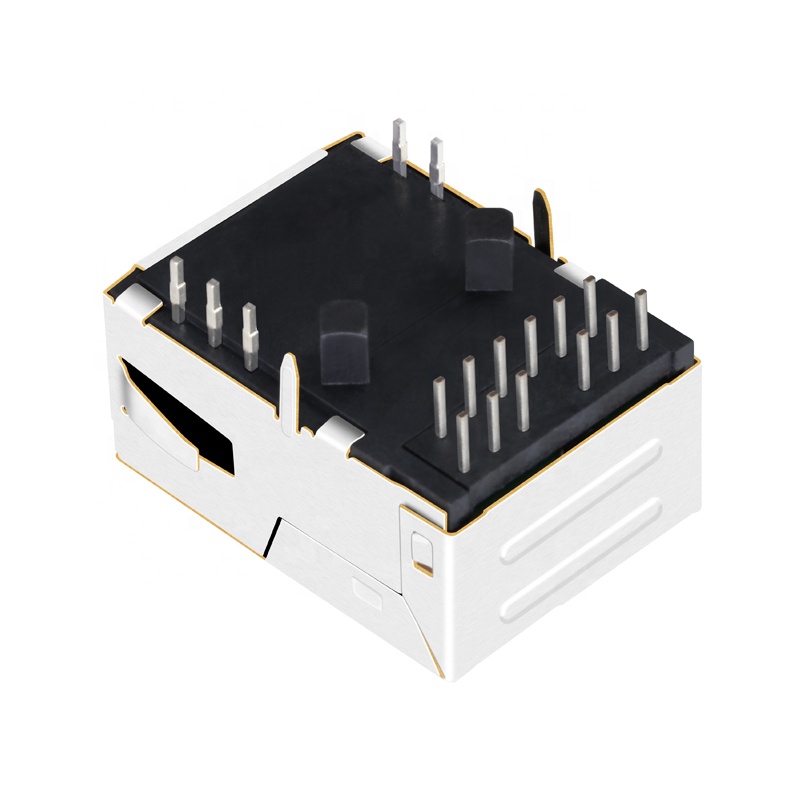

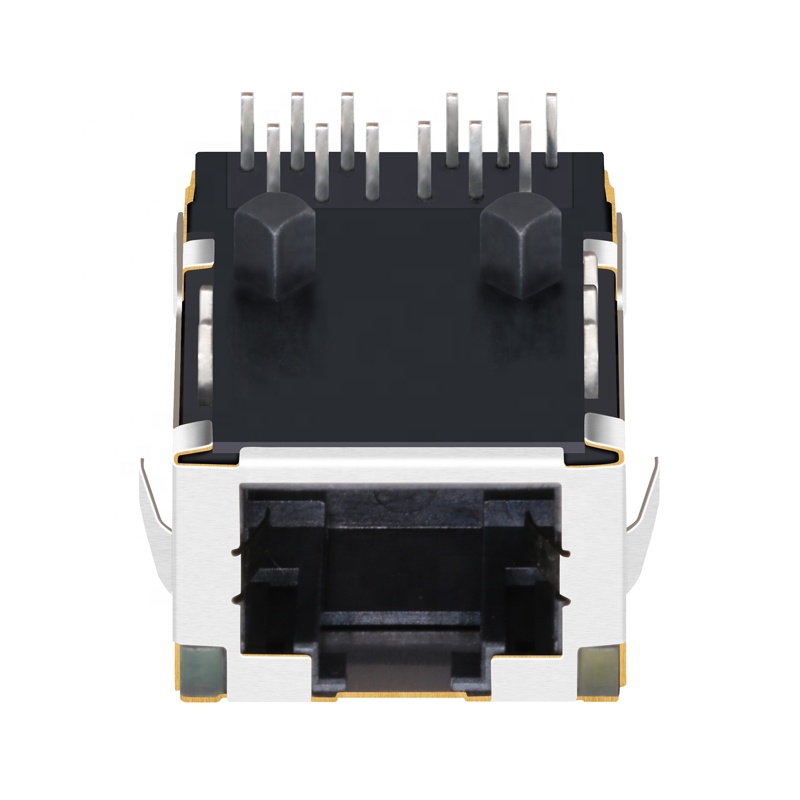

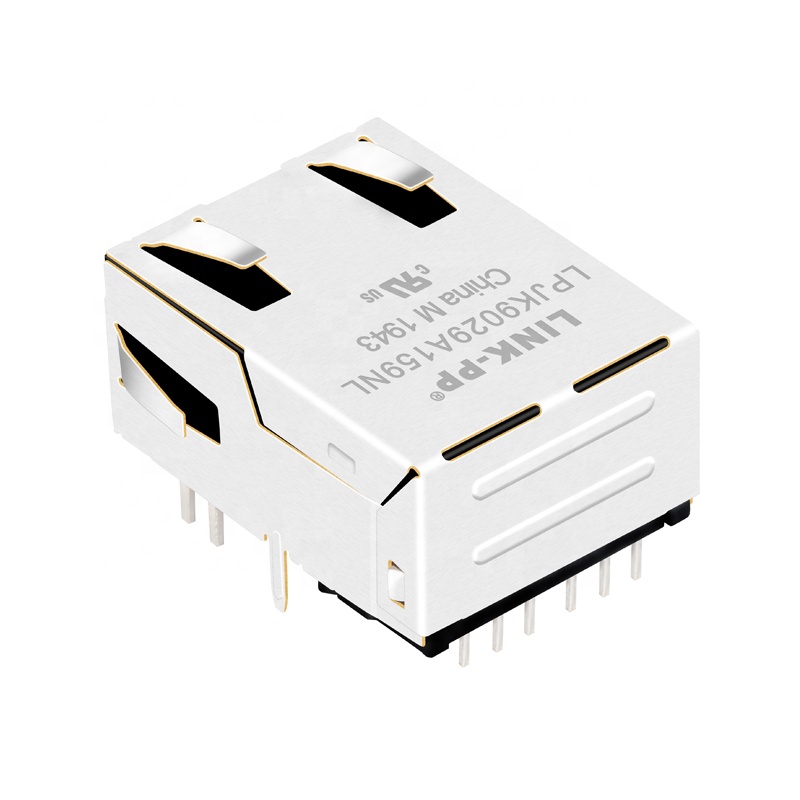

Product Layout Diagram 1 Product Layout Diagram 2
Specification
item value
Model Number LPJK9029A159NL
Part Status Active
Connector Type RJ45
Applications-Lan 5G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow&Green - Yellow
Number of Cores per Jack 8
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Characteristics
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Product Structure Diagram
Packing & Delivery

The Part Number package: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.

Packing Specification
Product Gallery
Product Close Up 1 Product Close Up 2 Product Structural View Product Dimensions View Factory Environment Layout Factory Testing Facility Quality Certification Reference
Frequently Asked Questions
Q1: What are the primary applications of this RJ45 connector?
A1: This RJ45 connector is optimized for high-speed network transmission systems, including 5G Base-T networks and devices supporting AutoMDIX auto-detection.
Q2: What is the operating temperature range for the LPJK9029A159NL model?
A2: This connector is designed to function reliably within a commercial temperature range of 0°C to 70°C.
Q3: Does this RJ45 connector support Power over Ethernet (PoE)?
A3: Yes, it supports Power over Ethernet (PoE) installations up to 50 Watts and is capable of reaching data speeds of up to 10 Gbit/s.
Q4: What are the packaging and weight specifications for standard shipments?
A4: The products are packaged with 110 pieces per tray. A full standard carton holds 550 pieces (5 trays), with package dimensions of 34.5*34.5*27cm and a total weight of 5.5 KGS.
Q5: What standard compliance ratings do these RJ45 connectors hold?
A5: These components are fully compliant with standard networking protocols, including IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and the upcoming IEEE 802.3bt specifications.
Q6: What mounting configuration does this model utilize?
A6: It uses a Through Hole mounting configuration with a 90° (Right Angle) orientation, board guide pins, and standard solder terminations.
