| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Quality Guarantee: 6 Years
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Frequently Asked Questions

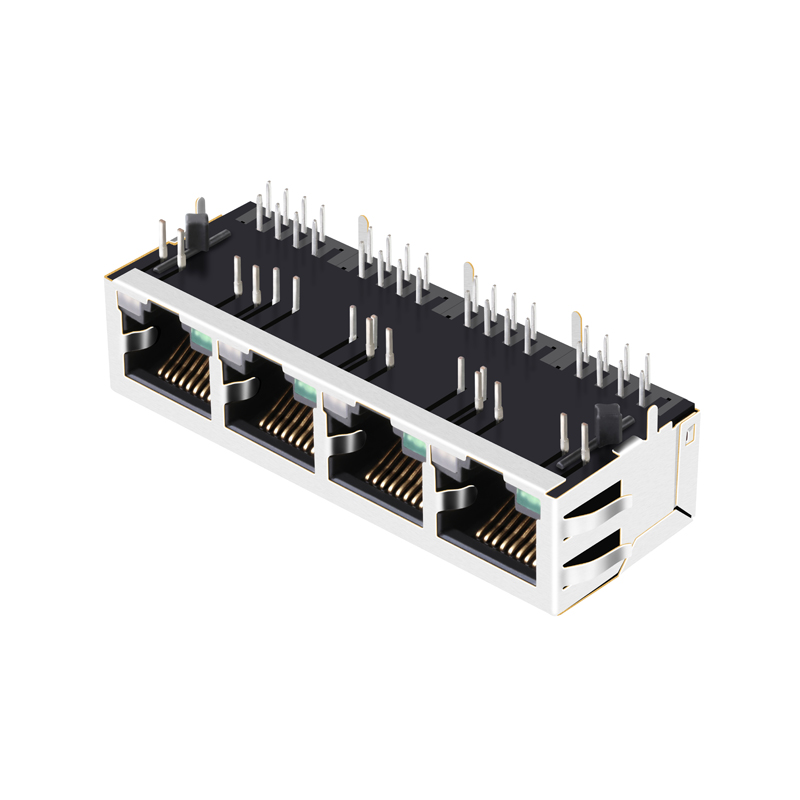

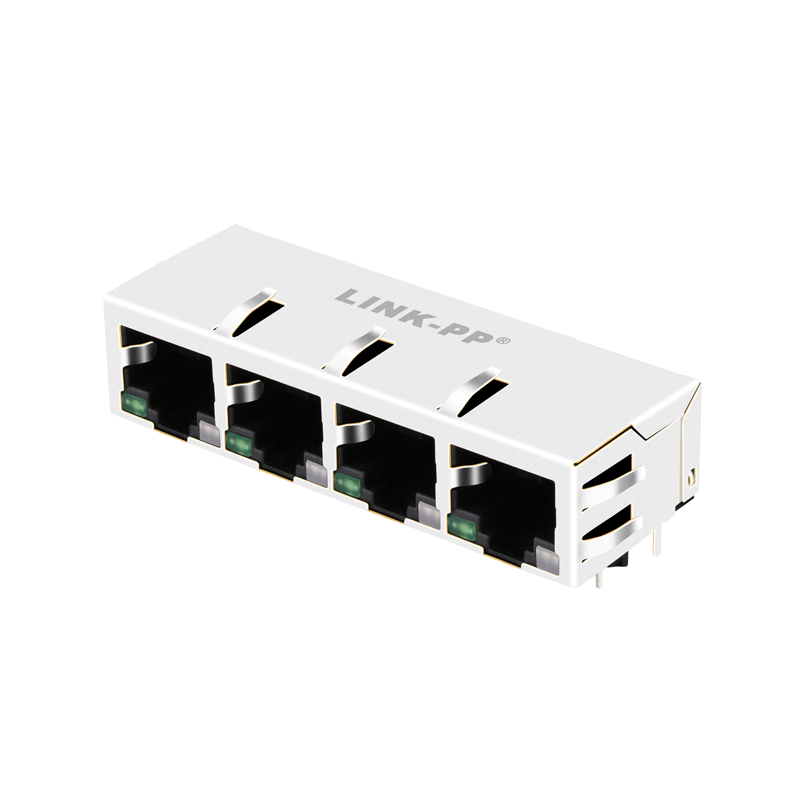

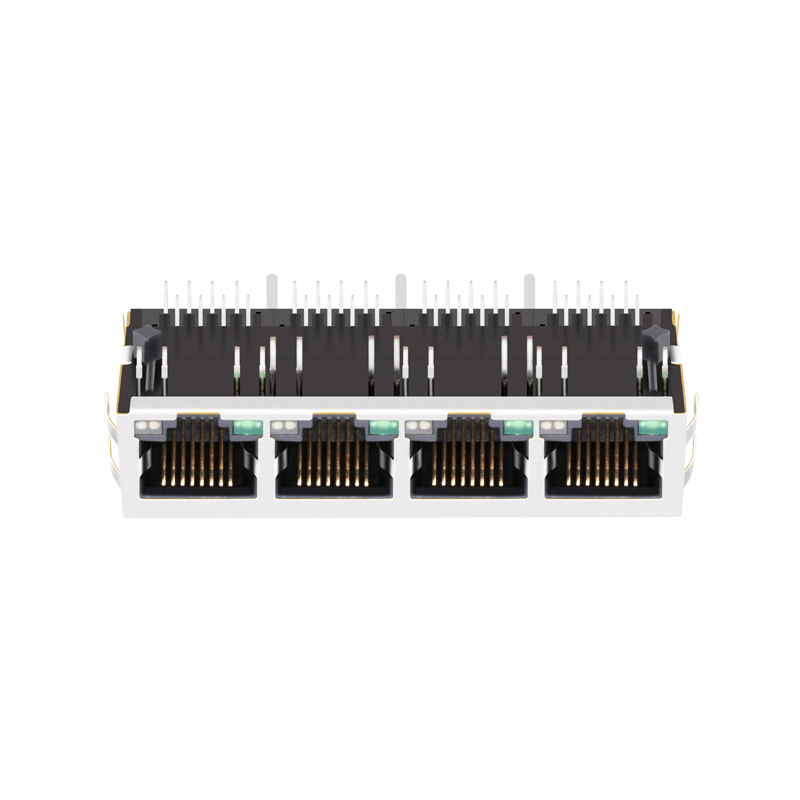

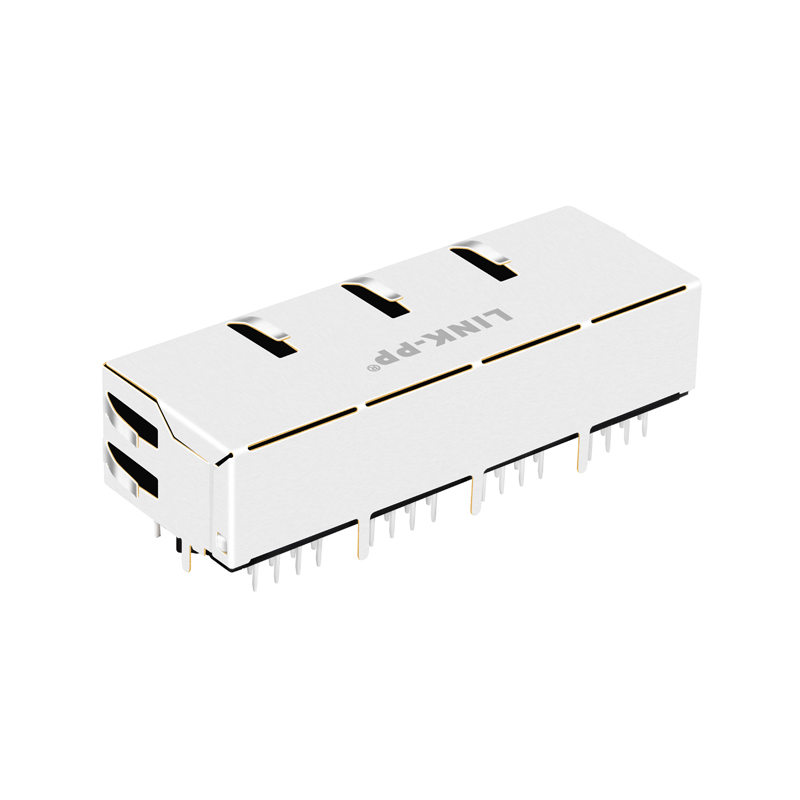

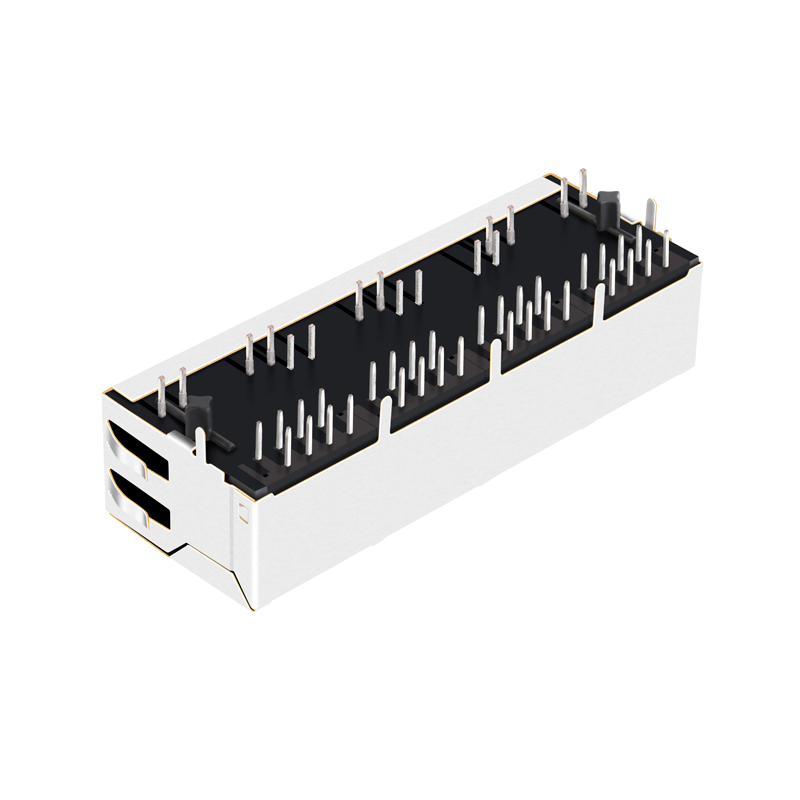

Q1: What is the configuration of the 5-6610068-7 modular jack?
It features a 1X4 multi-port configuration, containing 4 Gigabit Ethernet RJ45 female connector ports.
Q2: Does this RJ45 connector support Gigabit Ethernet transmission?
Yes, it is designed for Gigabit Ethernet speeds supporting up to 1000 BASE-T transmission rates.
Q3: What are the mating area plating options available for this model?
The contact mating area is plated with gold, with options including 6u", 15u", 30u", or 50u" thickness.
Q4: What is the operating temperature range for this connector?
It can operate within standard commercial temperature ranges from 0 to 70°C, and industrial ranges from -40 to 85°C.
Q5: Is this connector compliant with RoHS environmental standards?
Yes, it is RoHS-5 compliant with lead in solder exemption, ensuring compatibility with environmental standards.
Q6: What mounting and latch configurations does this jack utilize?
It features a Tab Up latch orientation, THT Solder pin type, and side entry PCB mounting angle.
