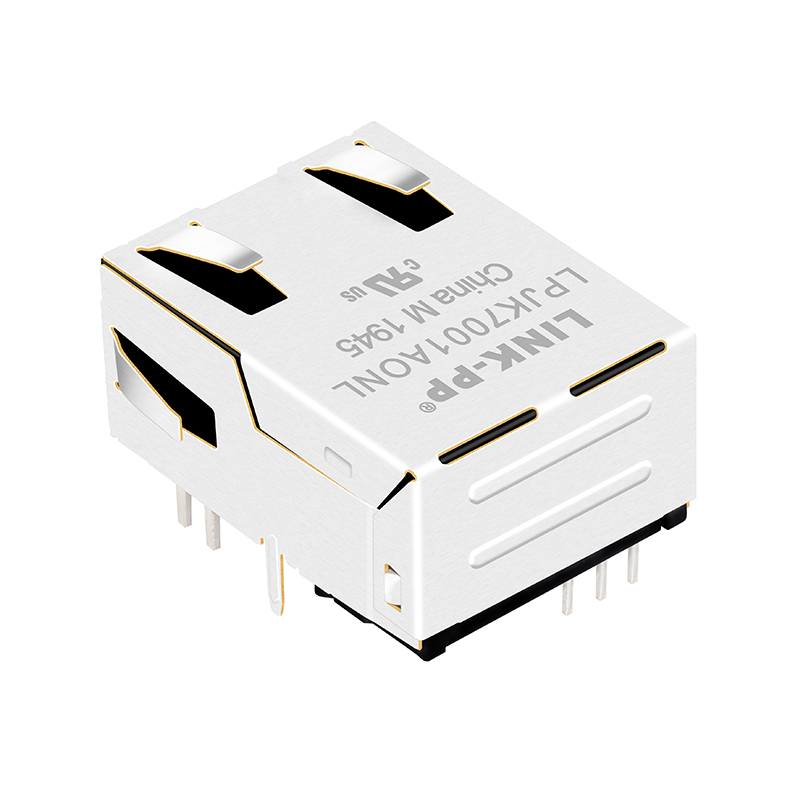

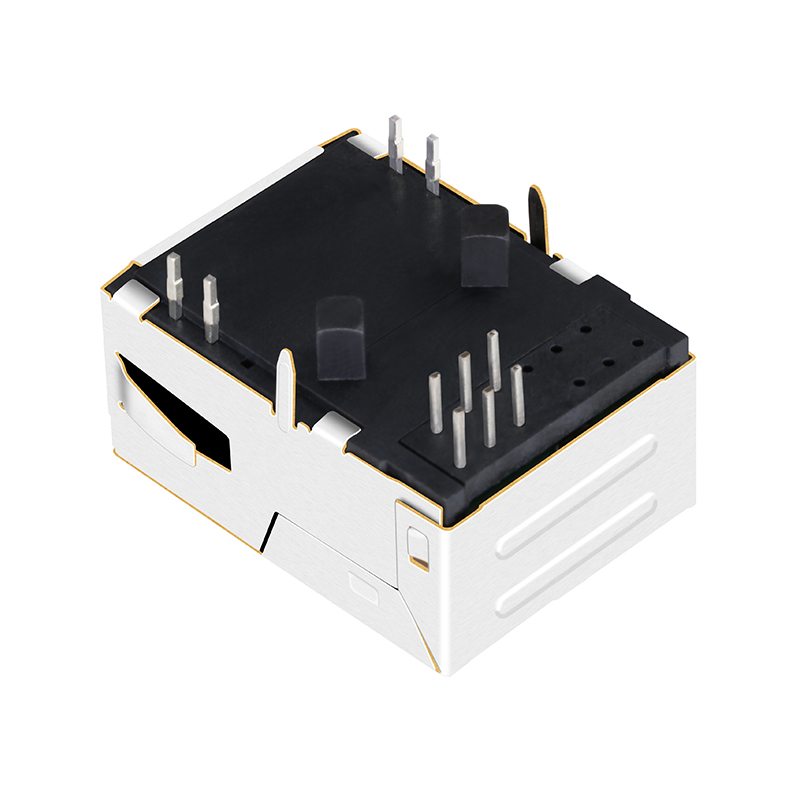

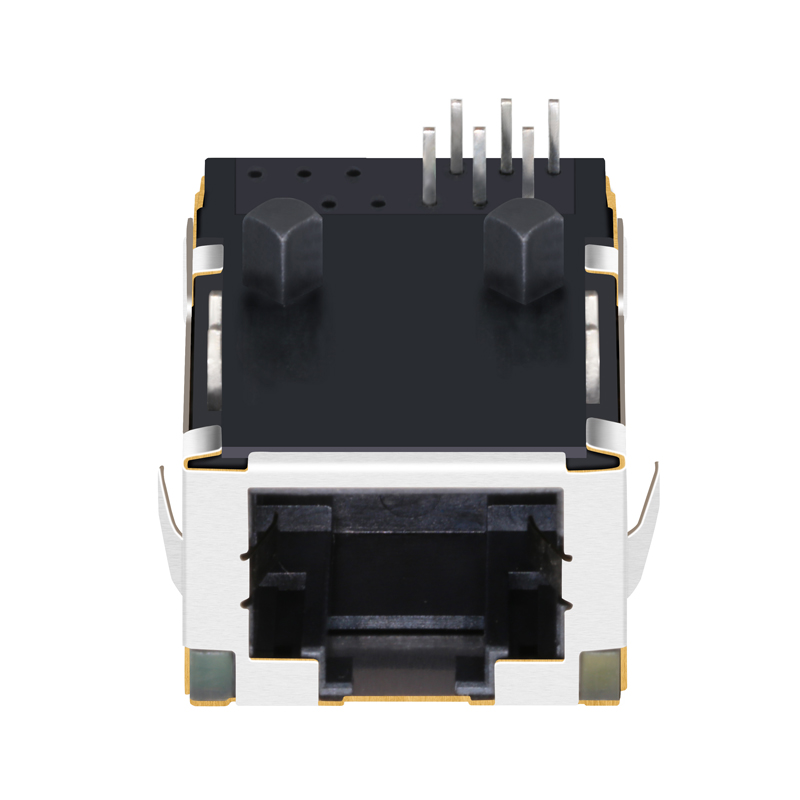

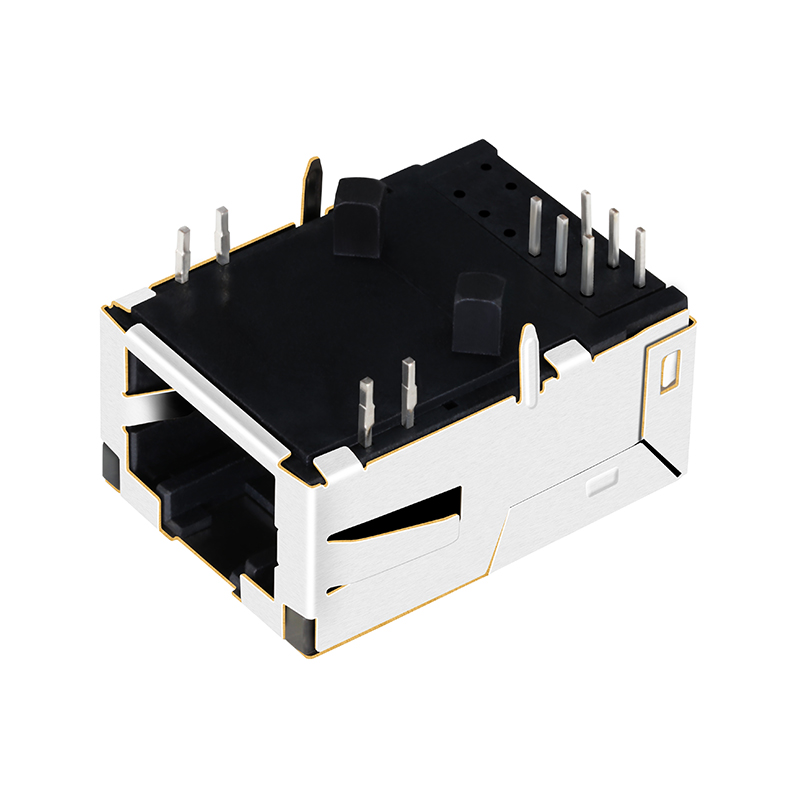

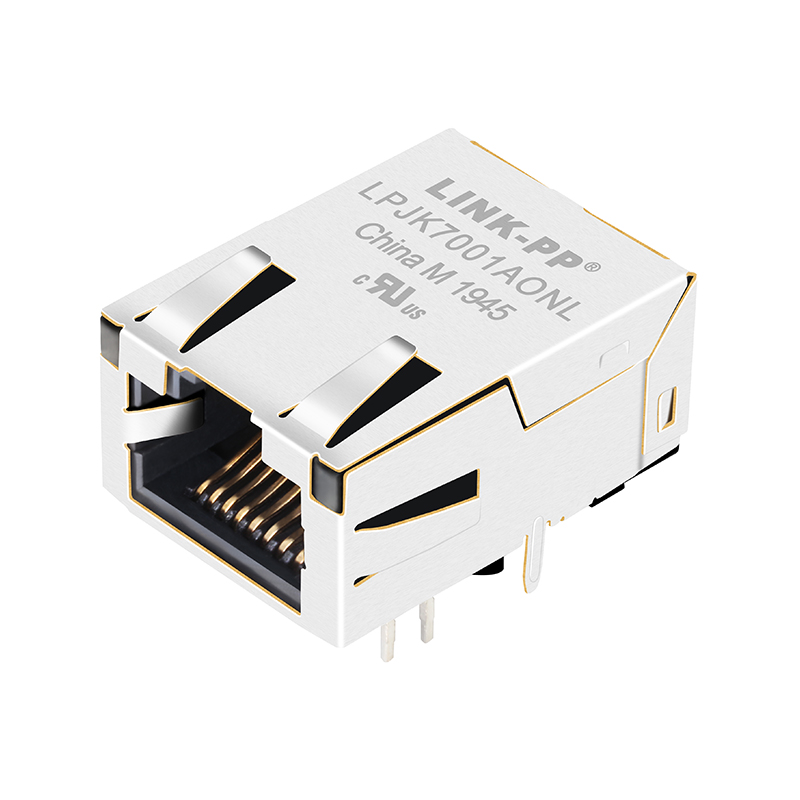

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
1 / 5
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

L829-1X1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
Ethernet Connectors
Products Description
Item RJ45 Female Connector
Part Number LPJK7001AONL
Compatible With L829-1X1T-91
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Specification Drawing
Product Categories Grid
Product details 1
Product details 2
Product details 3
Product details 4
Product details 5
Product details 6
FAQ
Q1 Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Q3 What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
Q4 What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q5 Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
Q6 What is your advantage?
19 years of production experience and we are intel's and Jabil's partner for many years.
