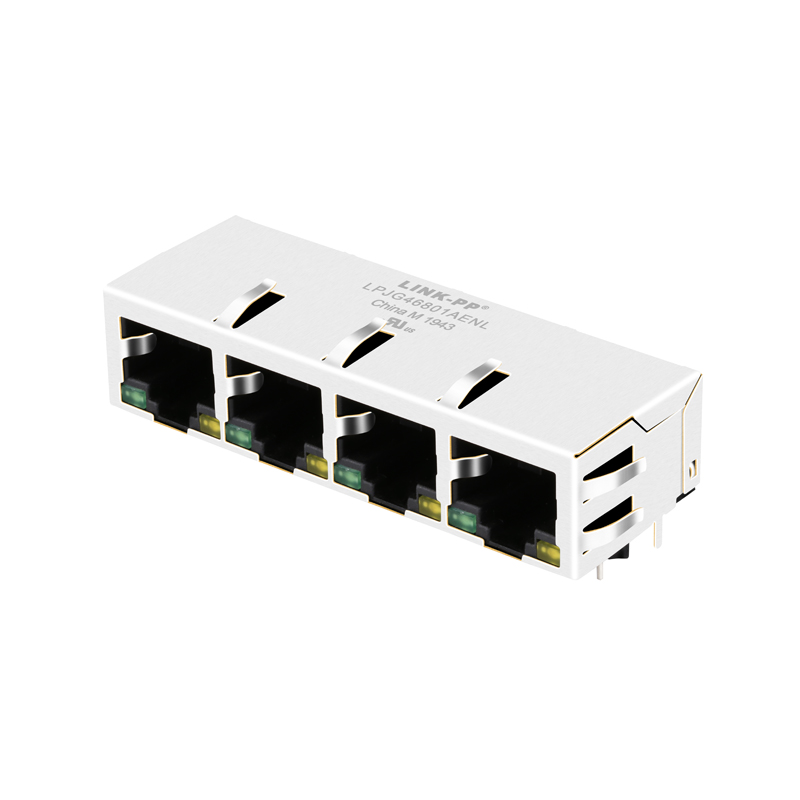

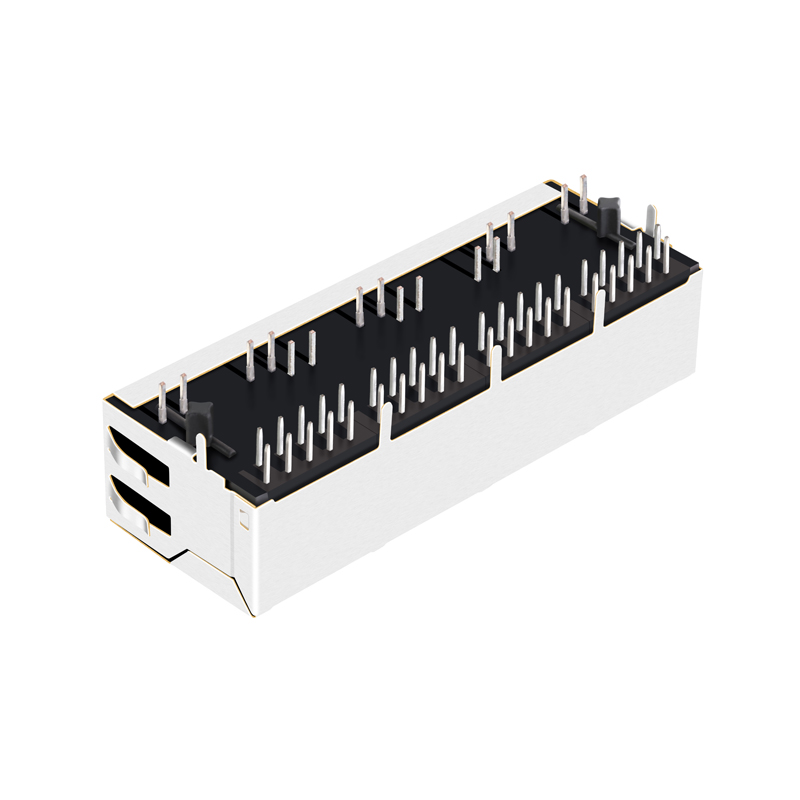

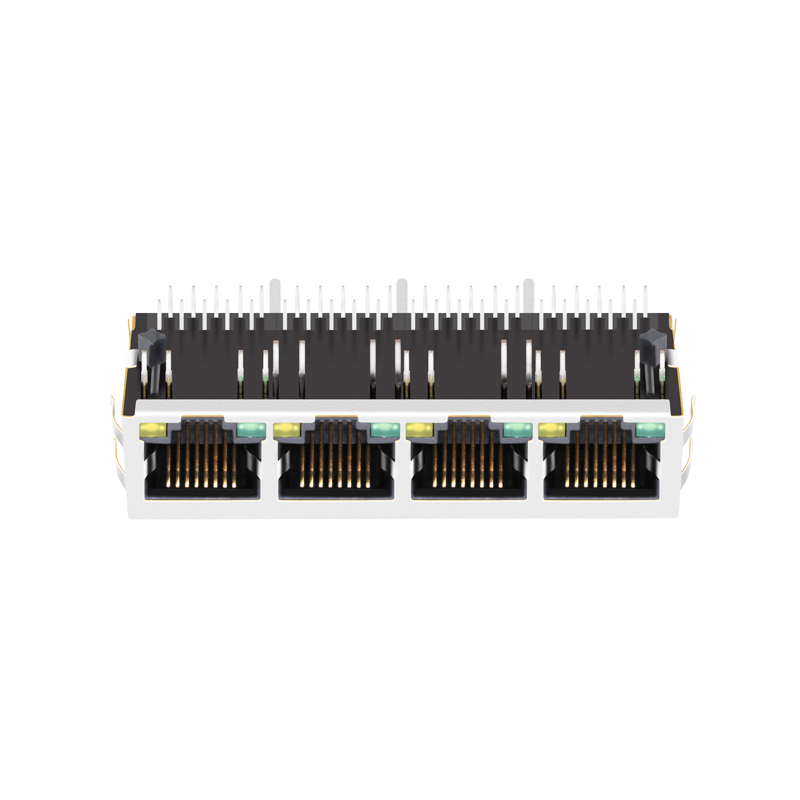

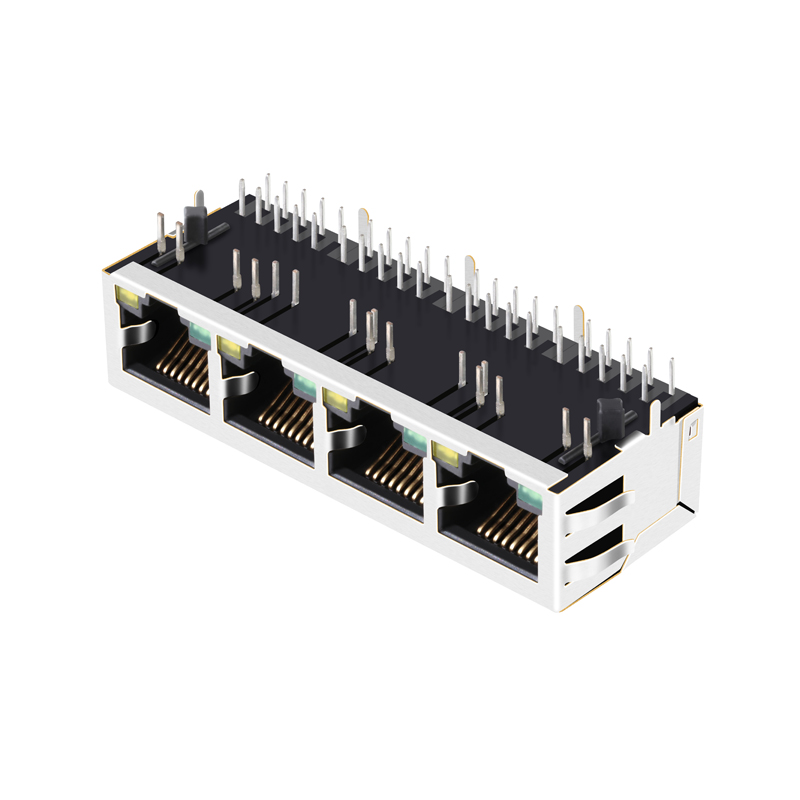

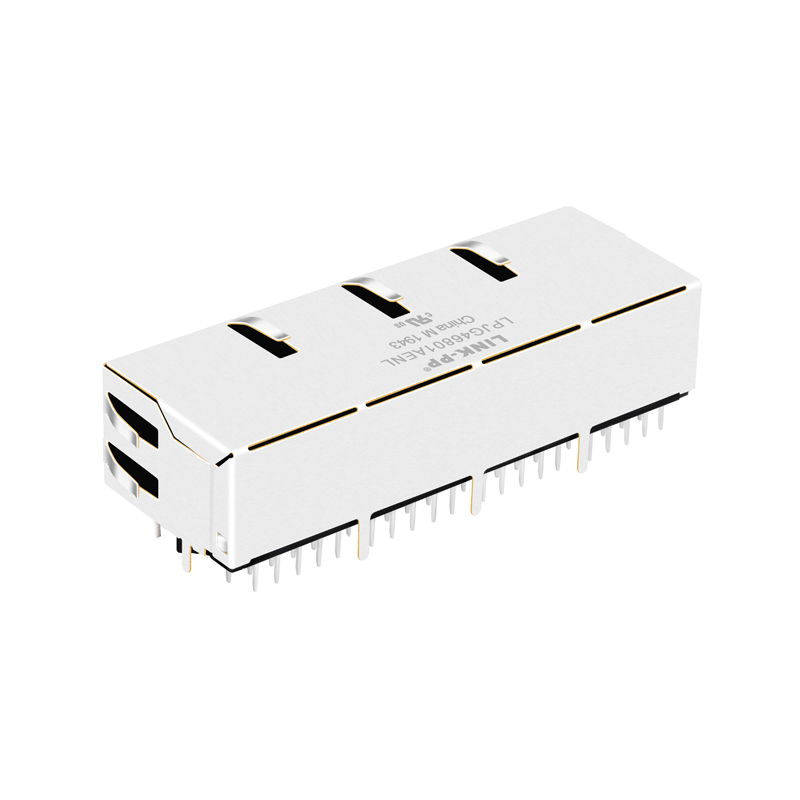

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

Product Description
Product View 1
Product View 2
Specification
Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery

Packaging Standard: 20 pcs in 1 tray, 20 trays in 1 carton.
Carton Dimensions: 37 * 30 * 30 cm
Weight: 10 KGS (400 pcs) per carton.

Packing Details
RJ45 Connector Features
100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
  • Suitable for industrial temperatures from -40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most ICs for Ethernet applications such as Microchip, Broadcom, Marvell
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Performance Test Chart
Dimensional Schematic
Frequently Asked Questions
Q1: What is the main capability of your manufacturing operations?
We specialize in manufacturing magnetic telecom and networking components. Our production lines are certified by ISO9001:2000, RoHS, REACH, CE, and UL, supported by advanced manufacturing facilities and imported test equipment.
Q2: How do you guarantee the quality of your products?
Quality is controlled strictly through two key steps: a pre-production sample is always generated and reviewed before mass production, followed by a mandatory final inspection of all units prior to shipment.
Q3: What types of products can I purchase from you?
Our main product portfolio includes RJ45 Magnetic connectors, LAN Transformers, Modular Jacks, and RJ11 Connectors suitable for various networking setups.
Q4: Why should I choose your products over other suppliers?
We offer nearly two decades of specialized manufacturing experience in RJ45 connectors and LAN transformers. Our processes are certified by SGS, ISO9001, UL, REACH, and CE, backed by high-volume weekly production capacities to ensure timely delivery.
Q5: What delivery terms and payment currencies do you support?
We support multiple delivery options including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES. Supported currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF.
Q6: What payment methods and communication languages are available?
We accept T/T, L/C, D/P, D/A, MoneyGram, Credit Cards, PayPal, Western Union, Cash, and Escrow. Our services support communication in English, Chinese, Spanish, Japanese, Portuguese, German, French, and multiple other global languages.
