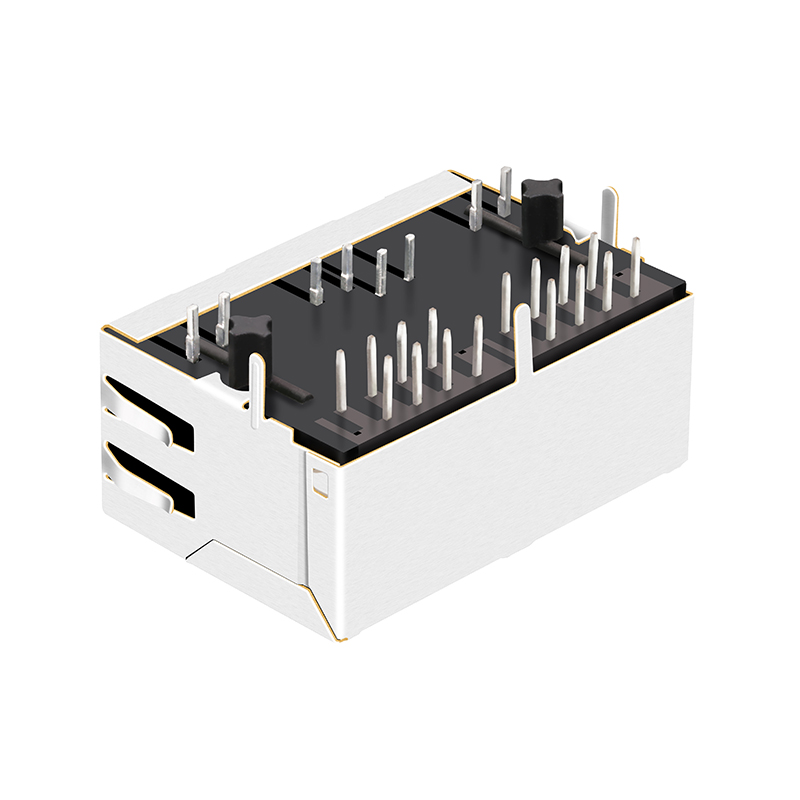

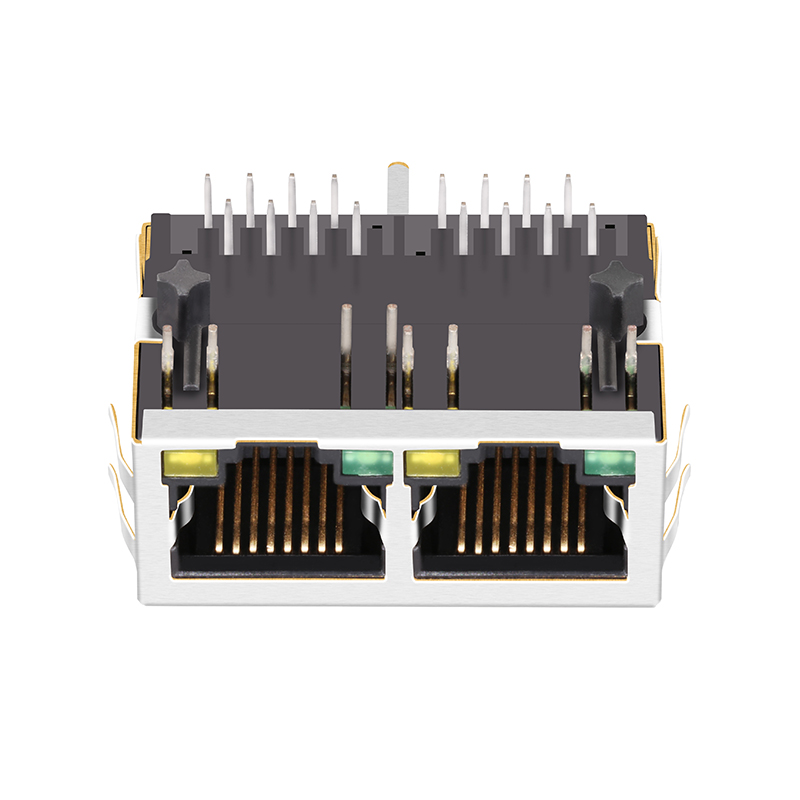

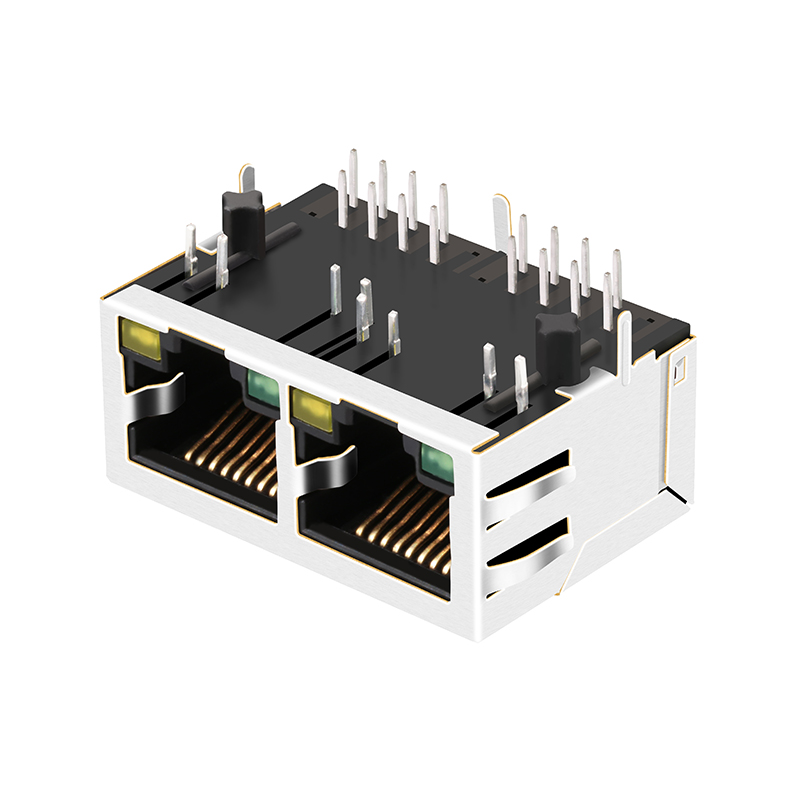

HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
1 / 5
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led

HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led

Send Inquiry

Product Description

Ethernet Magnetic Female RJ45 Connector Overview
HFJ12-E2450ER-L12RL Tab Down 1x2 Ports 10/100 Base-t Ethernet Magnetic Female RJ45 Connector With Led
Products Description
ItemRJ45 Female Connector
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x2 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0°C TO 70°C
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Specification Design
Product Options Matrix
Technical Layout Dimension PCB Pin Layout
Circuit Schematic Diagram Electrical Specifications
Quality Standard Certifications
Testing and Verification Production Process
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Company Facility View Warehouse Stocking Automated Manufacturing
FAQ
Q1Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees should be covered by the buyer.
Q3What is your delivery time?
Products in stock are ready to ship, and mass production takes 15-30 days.
Q4What after-sales service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so we can discuss requirements in detail.
Q6What is your advantage?
We bring over 19 years of professional production experience and have partnered with major global enterprises for many years.
