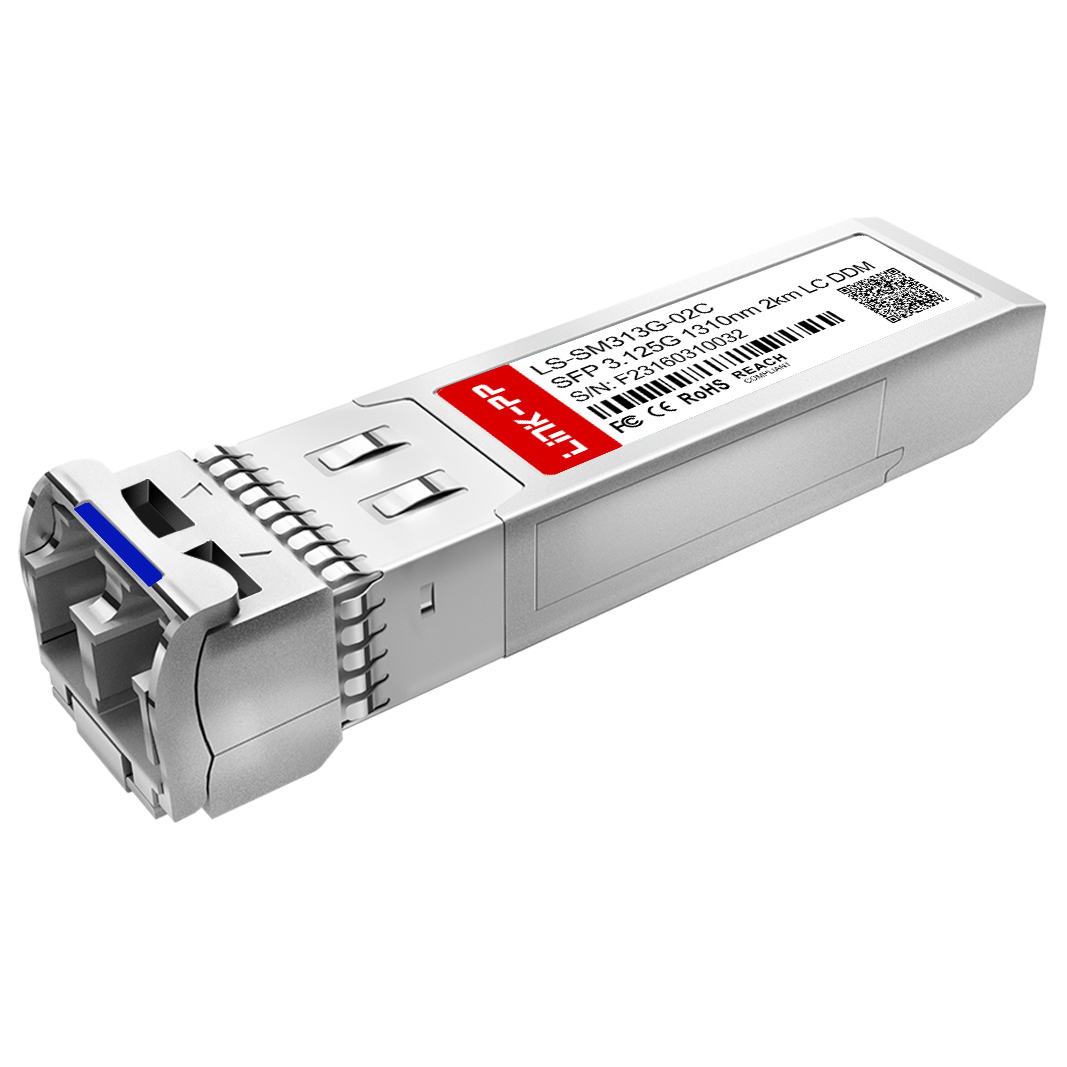

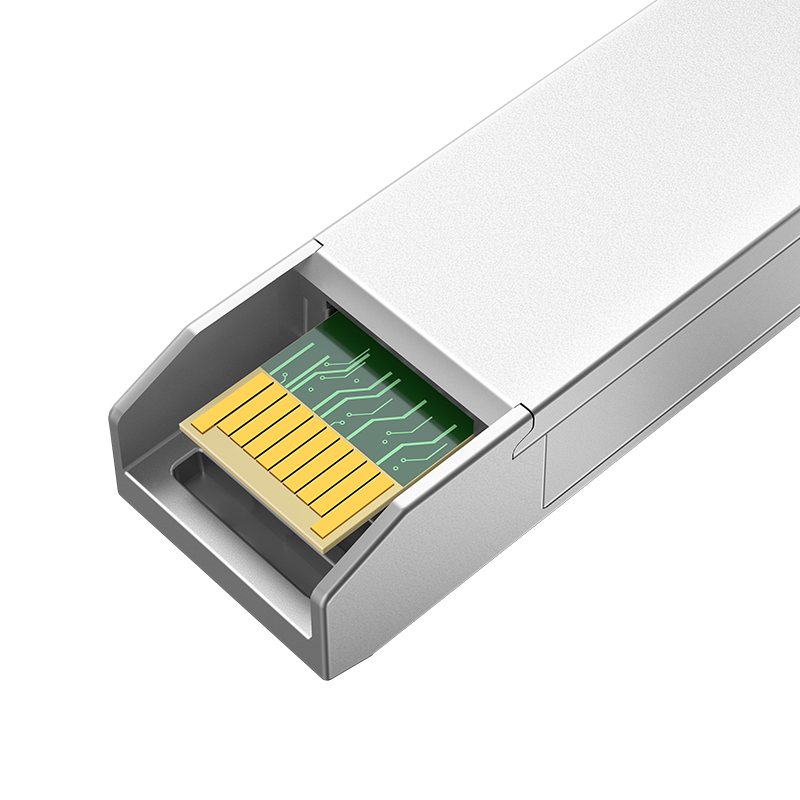

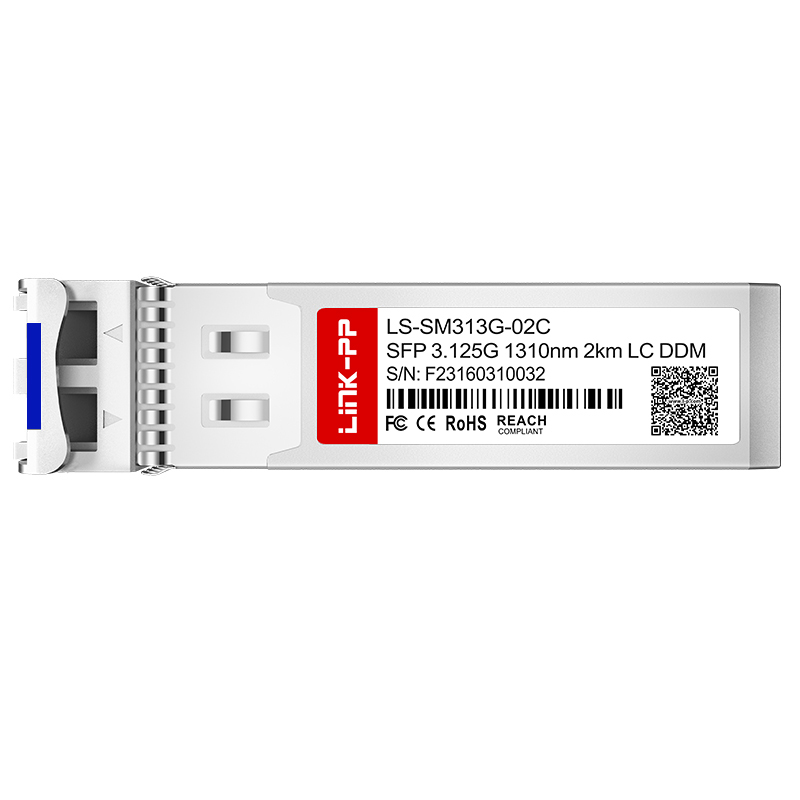

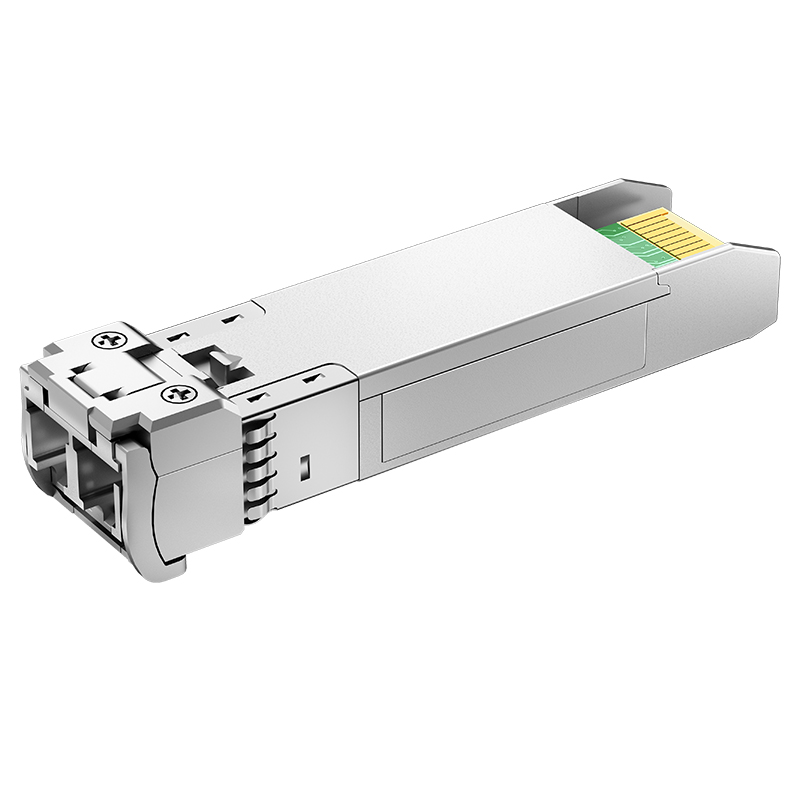

Single Mode 3G SFP 1310nm 2km SMF Duplex LC Optical Transceiver Module
| Part No. | LS-SM313G-02C |
| Form Factor | SFP |
| Max Data Rate | 3.125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -8 ~ 0dBm |
| Receiver Sensitivity | < -18dBm |
| Receiver Overload | -1dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM852G-S3C | 2.5Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM852G-S5C | 2.5Gbps | 850nm | 550m | Multi-mode | Yes |
| LS-SM312G-02C | 2.5Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM312G-10C | 2.5Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM312G-15C | 2.5Gbps | 1310nm | 15km | Single Mode | Yes |
| LS-SM312G-20C | 2.5Gbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM552G-20C | 2.5Gbps | 1550nm | 20km | Single Mode | Yes |
| LS-SM312G-40C | 2.5Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM552G-40C | 2.5Gbps | 1550nm | 40km | Single Mode | Yes |
| LS-SM552G-80C | 2.5Gbps | 1550nm | 80km | Single Mode | Yes |
End-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G provides high-quality optical interconnection solutions for data centers.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers worldwide. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all requirements in 4G/5G systems.
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer free samples for quality evaluation purposes, with the shipping cost covered by the client.
Stock items are ready for immediate dispatch. For bulk production orders, the lead time is typically 15 to 30 days.
We offer a warranty period on our products and provide online technical assistance to support you.
Yes, we support both OEM and ODM services. Please send us your specifications so we can review the technical requirements.
We have 19 years of production expertise combined with partnerships working alongside industry leaders to ensure high-reliability solutions.
