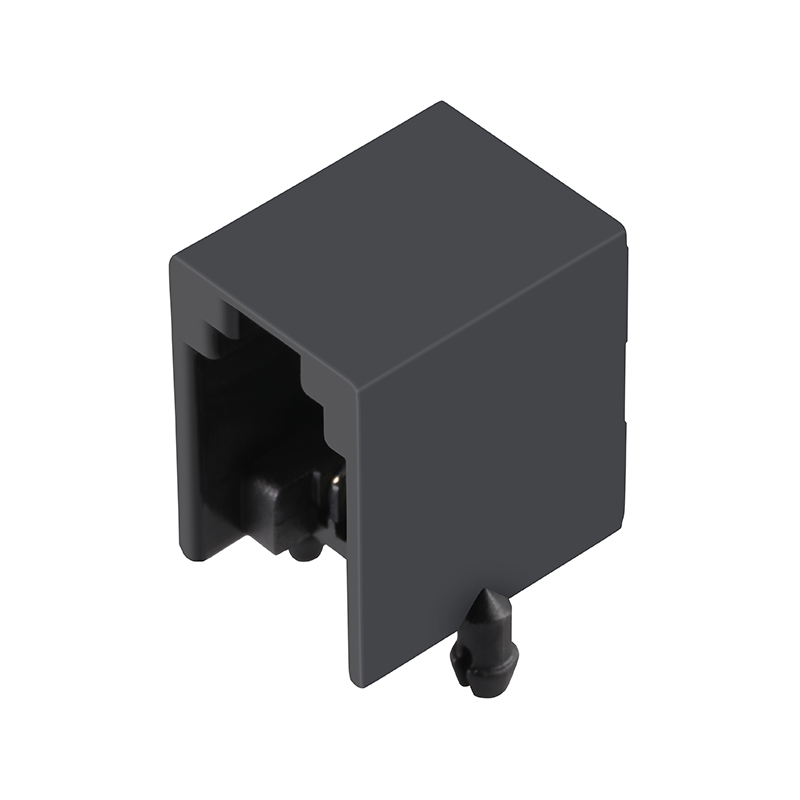

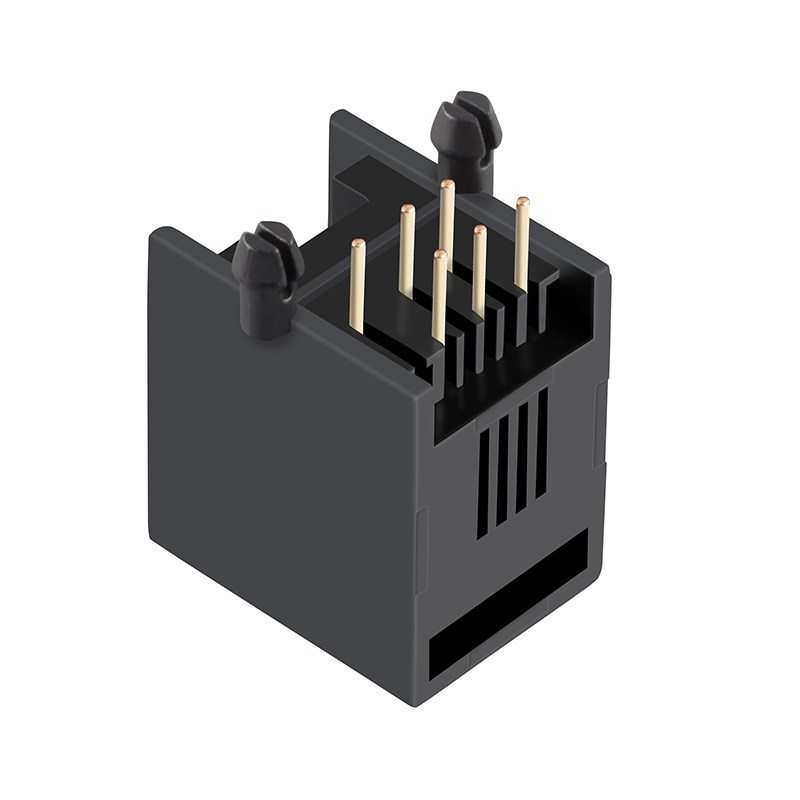

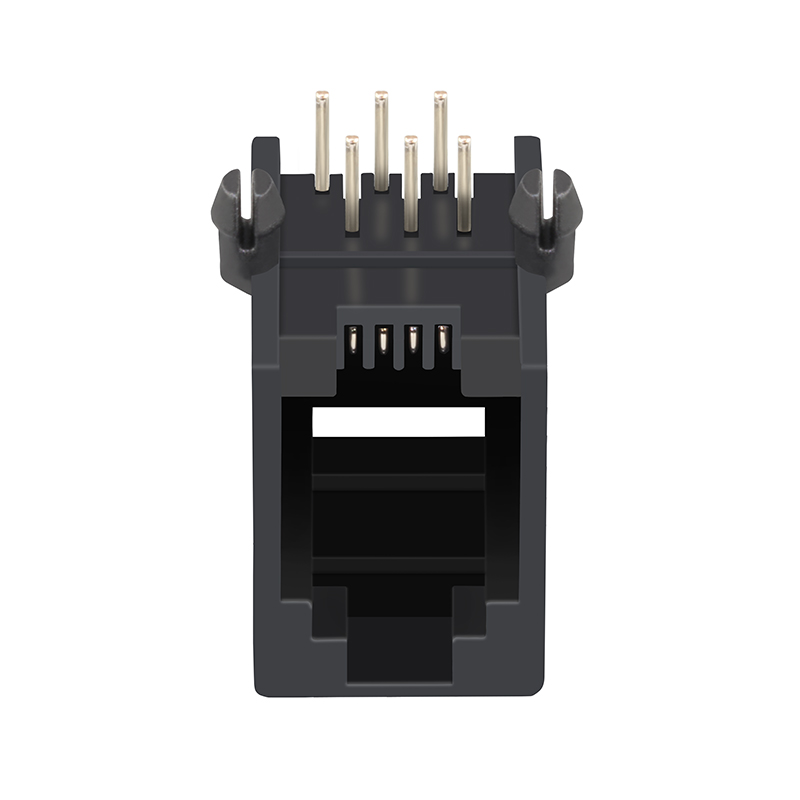

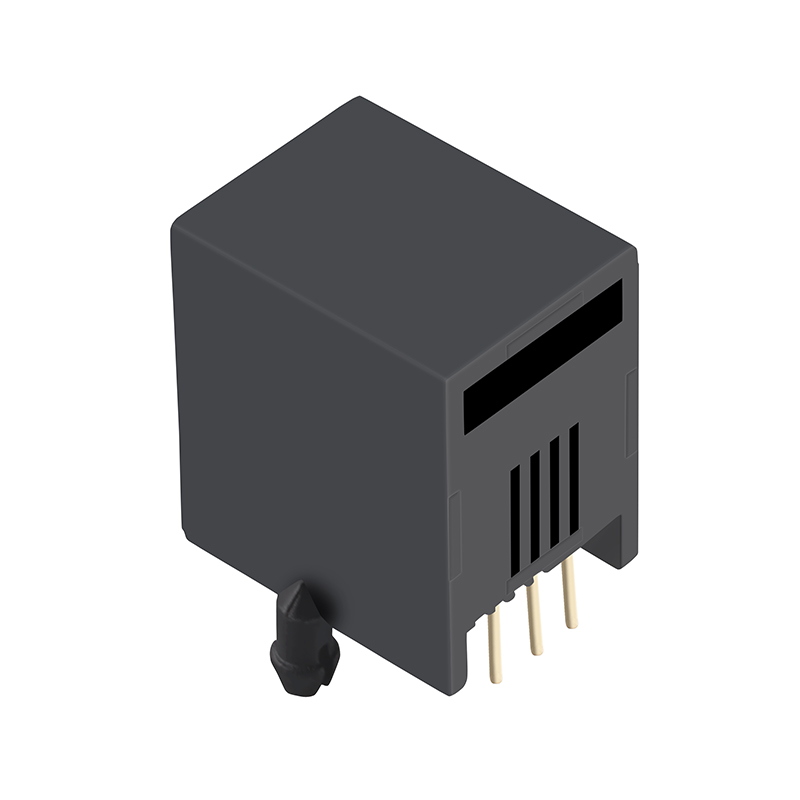

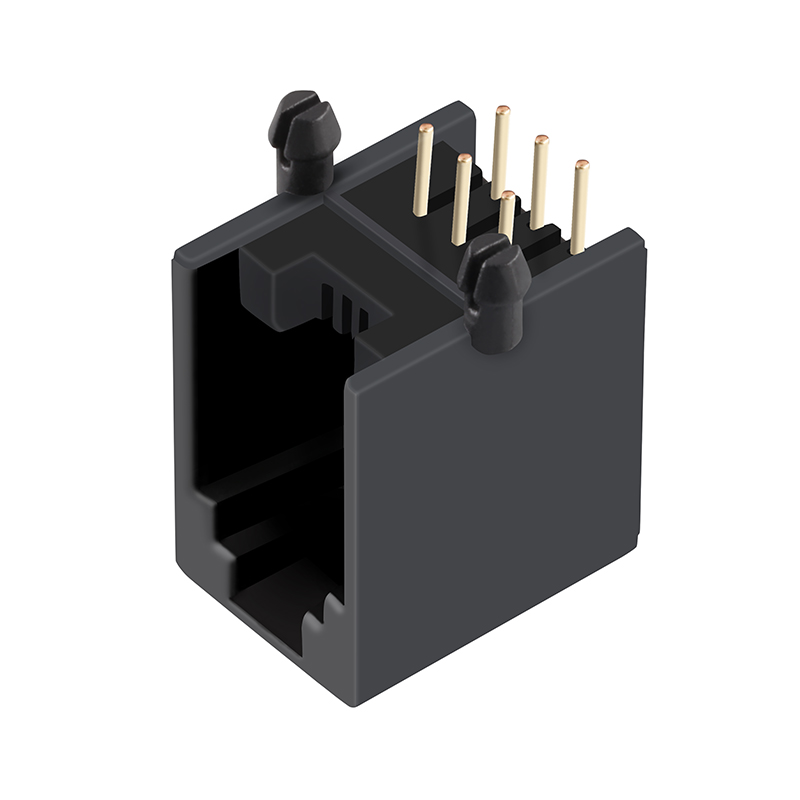

Unshielded 6P6C RJ11 RJ12 Ethernet Connector

Product Description

Ethernet Connector Overview
Unshielded 6P6C RJ11 RJ12 Ethernet Connector
Products Description
Item RJ45 Female Connector
Part Number LPJE8014NNL
Compatible With 615006138421
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Detail Image
Connector Dimension Detail Left
Connector Dimension Detail Right
Click Below Products To Get More
Related Ethernet Connector Types
Technical Drawing Specification
Technical Layout Specification
Technical Dimension Specification
Production Process Image 1
Production Process Image 2
Production Process Image 3
Certification Showcase
