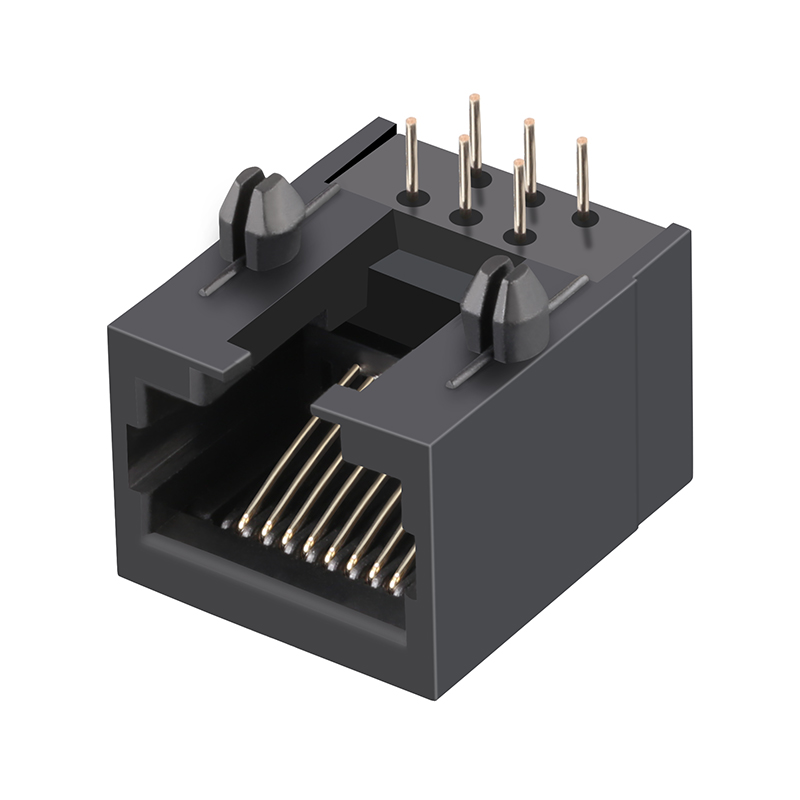

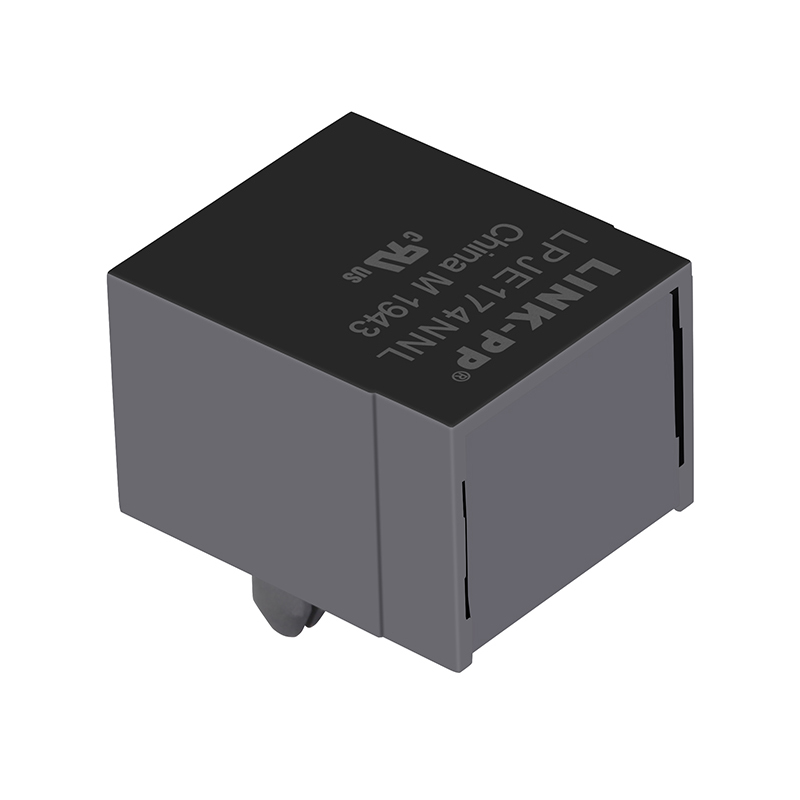

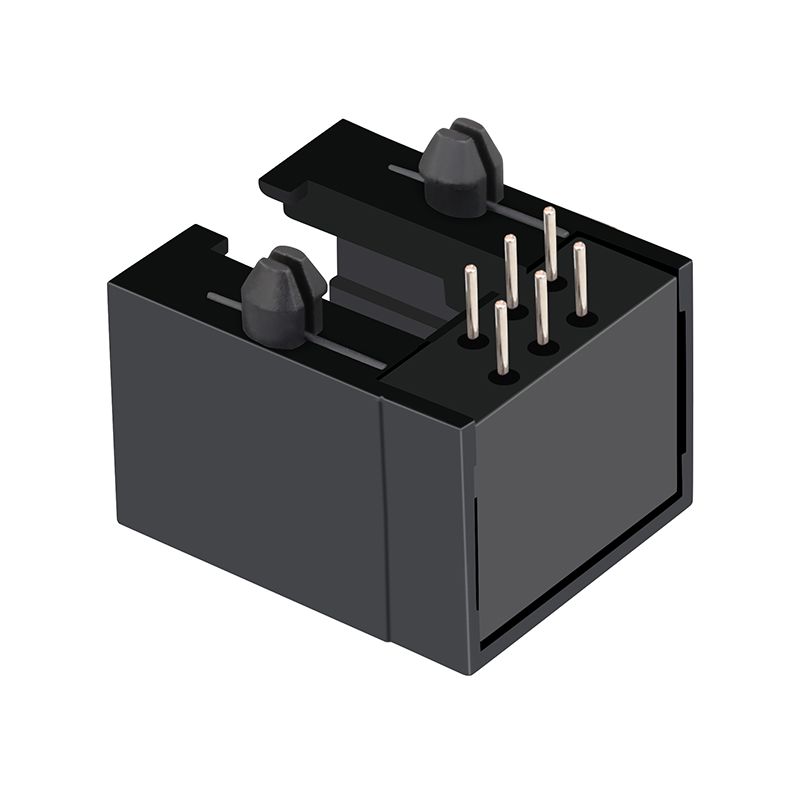

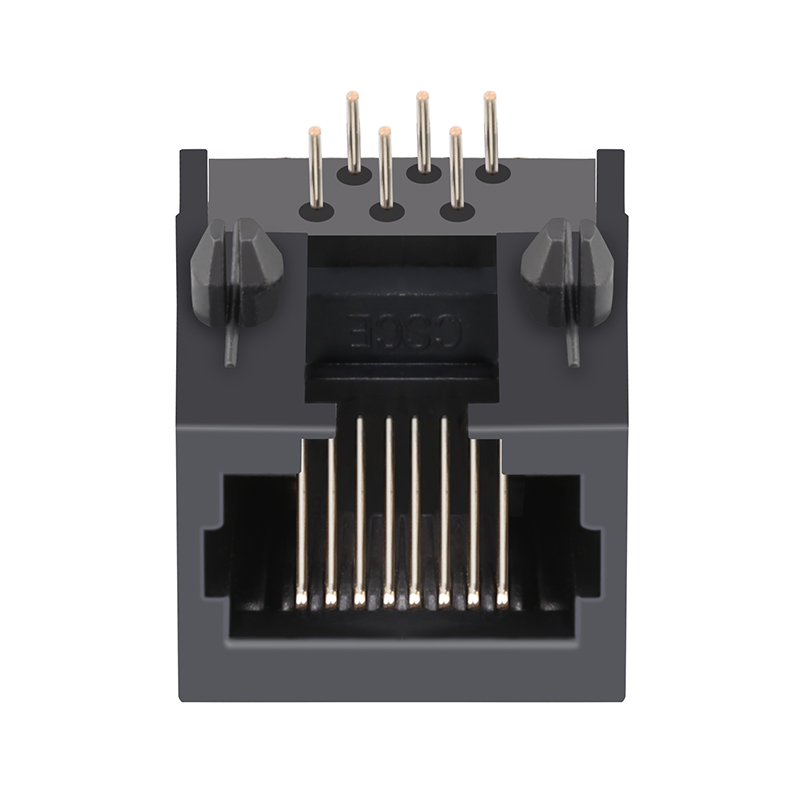

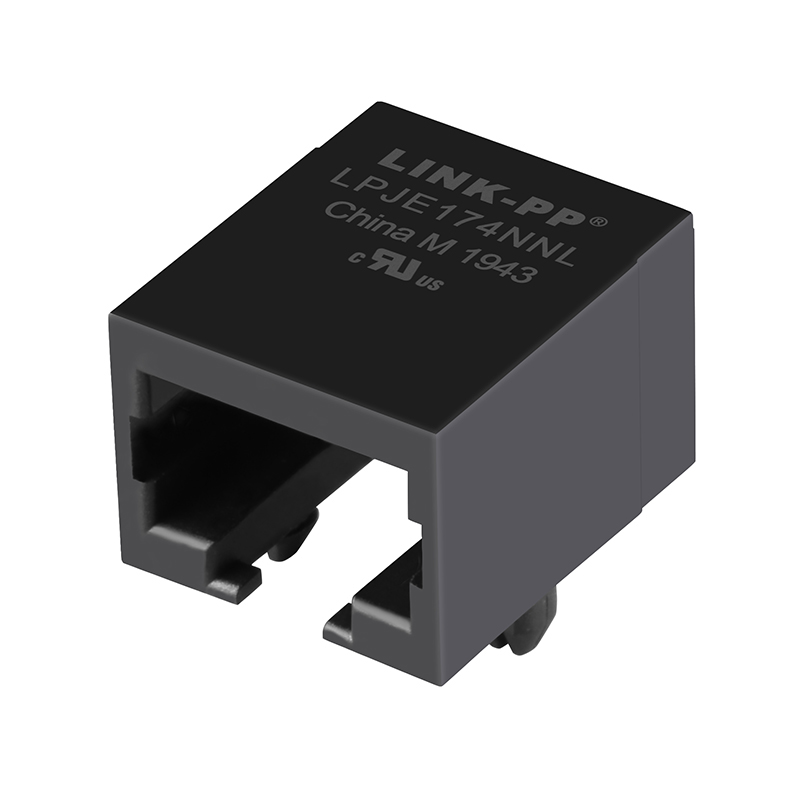

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack
| Item |
RJ45 Female Connector |
| Part Number |
LPJE174NNL |
| Compatible With |
S11-ZZ-0159 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
6p6c (RJ45, Ethernet) |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutoMDIX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T, C |
